ACST-0351-005
June 1996
Pxx
MULTI-LINE
50 26
25 1
Pxx
MULTI-LINE
50 26
25 1

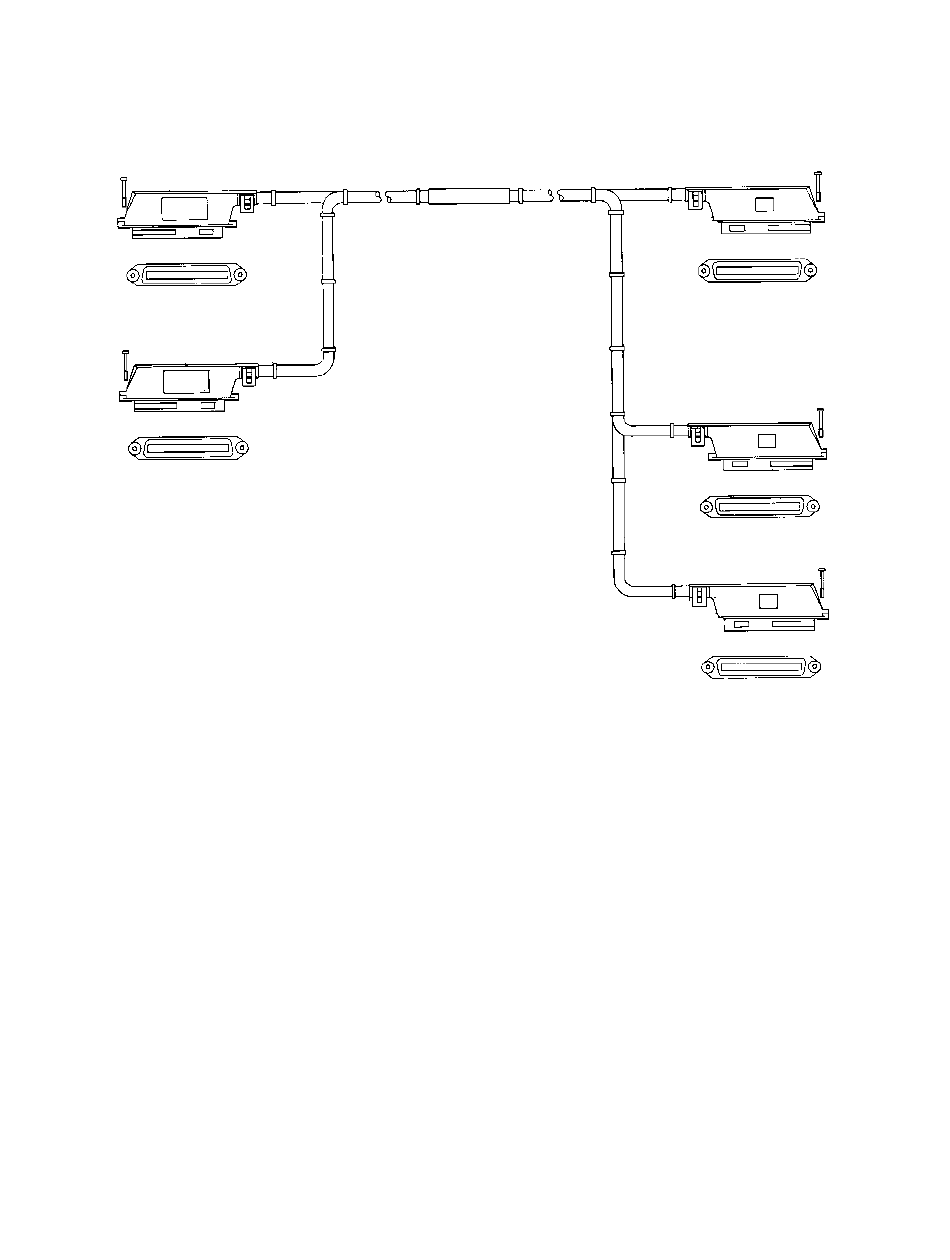

Figure E-2. Patch Converter Panel Cable, 087-2143-00x

Installation

To install the Patch Converter Panel and converter cable, follow these steps:
1. Determine the desired location. The patch panel should be positioned
2. The patch panel includes a pair of mounting ears which support
3. Mount the patch panel securely in the rack.
087-2143-00x
close enough to Access-T 1500 to allow the converter cable to reach.
The patch panel requires only 1.75 vertical inches of rack space (one
rack position).
either 19-inch or 23-inch equipment racks. Using the hardware pro-
vided, install the mounting ears on the sides of the patch panel in the
appropriate orientation for the rack width and desired projection.
Appendix E
Access-T 1500 Accessory Kits
P3
1 25
26 50
P4
1 25
26 50
P5
1 25
26 50
E-3
