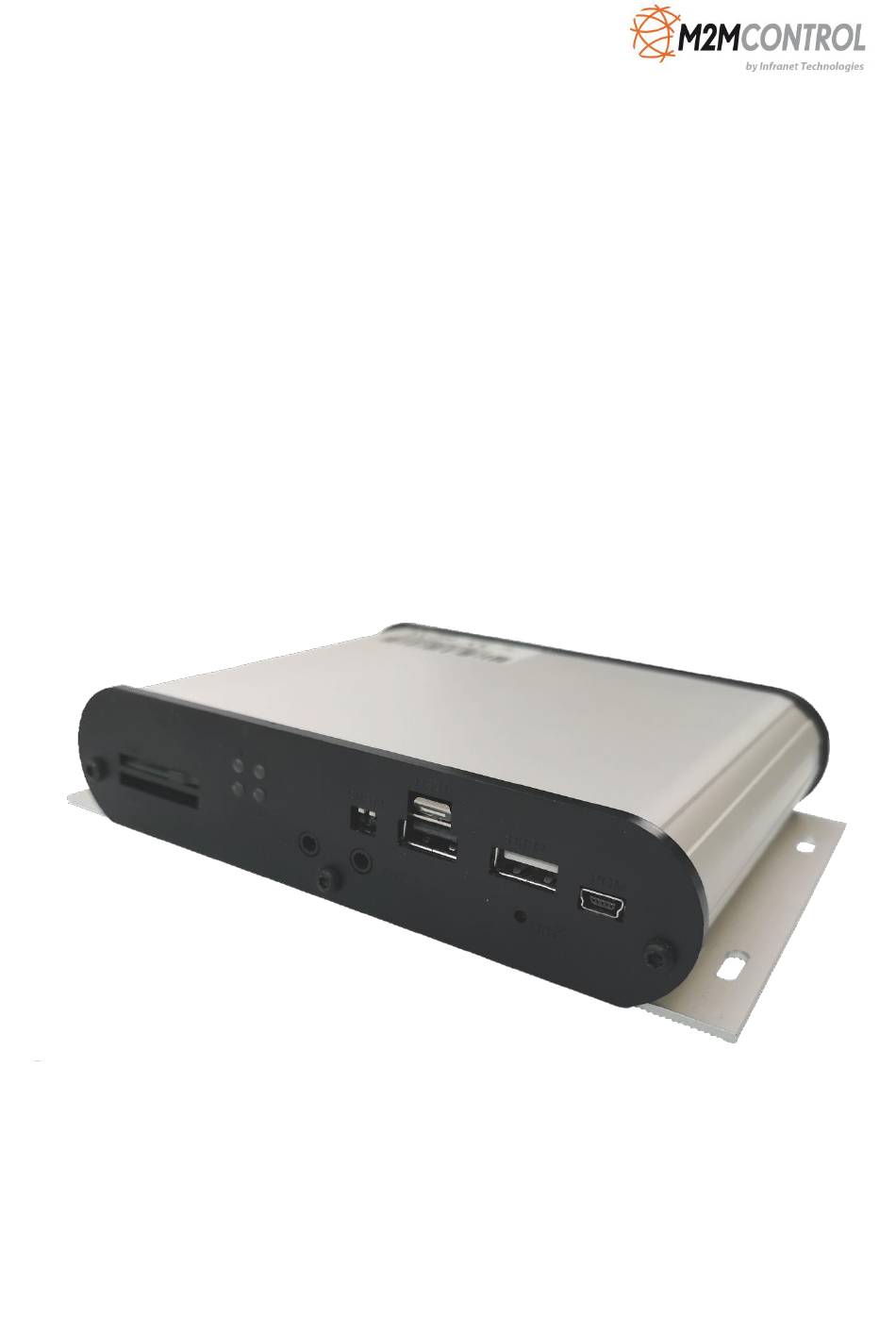

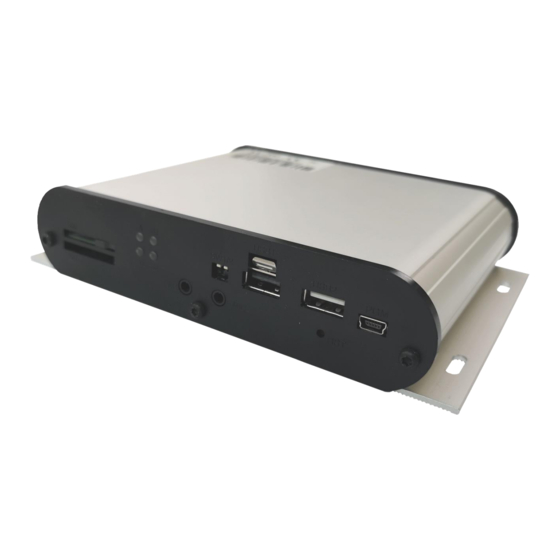

World-wide cellular LTE, WLAN, Bluetooth Classic / Low-Energy, dual CAN bus, Ethernet, dual RS232, RS485, and 1-Wire. The M2M CONTROL CX660 also sports two USB host port interfaces allowing for the expansion of the device with accessories such as RFID reader, additional Ethernet port, and additional...
Page 3
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway * * * * THIS PAGE IS INTENTIONALLY LEFT BLANK * * * Page 3 of 44...
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Table of contents Introduction ..............................2 Important Information ............................ 6 Technical Highlights ............................7 Graphical overview: ............................9 External connections ............................. 10 Overview ..............................10 Signal Overview ............................11 Power supply ............................. 15 Digital outputs ............................
Page 5
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Appendix B – Installing the internal SIM-Card ..................38 Appendix C – Installing the SD-CARD ...................... 41 Appendix D - Enabling the CAN bus channel 1 write capability ............41 Appendix E - Open Source Disclaimer .......................
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Technical Highlights Platform: Based on the M2M Control Platform. NX32L (NX32 for Linux) execution architecture. M2M CONTROL IDE development tool. Operates under a full and highly optimized Linux variant.
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway External connections Overview Connections to external equipment are made via the connectors that are located on the back and front sides of the product. The front panel is equipped with connectors commonly accessed by the user: SIM-Card, SD-Card, DIP-Switches, audio input and output, LEDs, dual USB host ports, and USB slave service port.
Page 12
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Connector X1: 4 pin PWR connector overview Name Description SUPP Power supply, positive (+) connection DIN5/IGN Digital input 5 / Ignition input (Shared with X3) SUPP Power supply, positive (+) connection...
Page 13
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Connector X4: 6 pins COM2 connector overview Name Description Transmit Data from serial port 1, RS232 compatible CAN2-H CAN-bus channel 2 H-signal CAN2-L CAN-bus channel 2 L-signal Receive Data for serial port 1, RS232 compatible...
Page 14
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Accessories for cable assembly. Order-code Name RT-O-TYCO-H4 Tyco, Connector house 4 pins. Bag with 10 pcs TYCO p/n: 794617-4 RT-O-TYCO-H6 Tyco, Connector house 6 pins. Bag with 10 pcs TYCO p/n: 794617-6 RT-O-TYCO-H12 Tyco, Connector house 12 pins.
Advanced Automotive M2MI/IoT Gateway Power supply The M2M CONTROL CX660 device must be supplied with 8..36 VDC from an external DC power source connected to the 4 pin power connector. Positive power is applied to the SUPP pin, and the ground is connected to the PGND pin.
The maximum switch-able inductance is 20mH and must not be exceeded. The digital outputs are supplied through the X1 power connector that also supplies the rest of the CX660. As this power is also the M2M CONTROL CX660 main power, a power-fail would also affect the digital outputs.
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Digital Inputs / Ignition Input The digital inputs are all low pass filtered and transient protected. To activate the inputs, connect a positive voltage between the input and the GND connector.
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Analog Inputs The analog inputs are voltage inputs specified with an operating range of 0V to 10V DC. The conversion resolution is up to 12 bit (0..4095). Please consult the M2M CONTROL IDE documentation for further details.
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Flex Inputs The flex inputs are multi-mode inputs that can be configured to operate as either analog or as digital inputs. The operating range is from 0V to 30V DC and is configurable as digital inputs with customized threshold values.
Page 20
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Specification for each flex input: Min. Typ. Max. Unit Protected against transients and Resolution low-pass filtered Precision %FSR Precision is based on Cut-off frequency measurements @ 25 ˚C Input impedance kΩ...
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway CAN communication port The CX660 provides the physical layer for the CAN (Controller Area Network) serial communication interface in accordance with the ISO 11898 standard. The CAN bus is designed for high-speed (up to 1Mbit) robust communication in especially harsh environments like those found in the automotive industry.
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway RS232 port 1 This port can be used as a general-purpose RS232 serial port and does not support handshaking. This port can also be used for communication with the CX660 accessories.
If the M2M CONTROL CX660 is used as an endpoint node, the software jumper for both RS485 ports separately can be activated through the user application in order to terminate the RS485 communication lines with 120Ω.
USB Host interface The M2M CONTROL CX660 offers two high-speed USB host ports on the standard USB A connector for connection of various USB devices. The host port 1 connector includes locking latch that locks the USB cable connector in position. To remove the USB cable, the locking tab needs to be pushed slightly until the locking latch is released.
Page 25
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway 3 pin SPK Out Name Description SPK_OUT_P Differential speaker positive (+) output Ring SPK_OUT_N Differential speaker negative (-) output Sleeve N.A. Not connected internally 3 pin MIC In Name Description...
Advanced Automotive M2MI/IoT Gateway 3D movement sensor The M2M CONTROL CX660 device contains a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer in order to detect vibration and motion. This sophisticated range of movement sensors allows to detect movement and position change in 3 directions, X-Y-Z with a force as high as 16g in acceleration, 2000 dps in rotation and 50 gauss in magnetic field.
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway LED Indicators Four bi-colored (red and green) LED indicator is present on the front of the device (see graphical overview). Two bi-colored LED’s (A and B) are available to the user, and the remaining two LED’s (S1 and S2) are signaling the status and possible errors of the CX660 device.
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway System LED S1 and S2 The CX660 is equipped with two system LED’s, which shows the status and possible errors of the device. The different patterns are listed in the table below. If the color of the system LED S1 is yellow, the device is actively communicating with the M2M CONTROL IDE (or another program, supporting the RTCU RACP protocol).
(and all other LEDs OFF) Switches DIP-switch The M2M CONTROL CX660 device contains two dip-switches. The dip switches are located on the front side of the device for easy user access (see graphical overview). System switch (RST) The M2M CONTROL CX660 device contains a combined reset/diagnostic switch. This switch is accessible from the front of the unit (see graphical overview).
Do not expose the device to water, saltwater or allow the battery to get wet. Avoid strong impacts and shocks. For more information regarding the environmental limitations, see “Specifications for M2M CONTROL CX660” below or consult the M2M CONTROL CX660 datasheet. Page 30 of 44...
UMTS release 7, max. 42Mbps down / 5.76Mbps upload, (Cat 6) Digitized audio / DTMF capability. WLAN and Bluetooth The M2M CONTROL CX660 device contains a combined WLAN (Wi-Fi) and Dual-mode Bluetooth radio that shares the same antenna interface. WLAN Technical Data ...
Please refer to Appendix A for a SIM card installation guide. The M2M CONTROL CX660 is prepared for eSIM internally, which shares the SIM-card signals with the external SIM-reader.
SD-CARD reader The M2M CONTROL CX660 device has a standard SD-CARD reader which is located on the bottom side of the device (see graphical overview) The M2M CONTROL CX660 supports a FAT filesystem for standard PC-compatibility with up to 32 GB capacity support.
Advanced Automotive M2MI/IoT Gateway Product Identification Label with Barcode The M2M CONTROL CX660 product identification is found on the exterior of the device and contains a unique serial-number in readable form and as a barcode. The first three digits in the serial number identify the device type, and for the M2M CONTROL CX660 device, this unique code is 321 or 322.
Page 36
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway The table below shows detailed information about the typical power consumption for the M2M CONTROL CX660 device when it is in power-saving modes. The following power-saving modes are used: • Mode 1: LED blinks every ~10 s, resumes the application when it is awoken.
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Appendix A – Installing the external SIM-Card The external accessible SIM card reader has a push/push eject system and a mechanical lock for secure installation of the SIM card. Orientate the card as shown below and insert it into the card reader. Push the card into the reader until a click sound occurs –...
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway Appendix B – Installing the internal SIM-Card WARNING: Disassembling the device must be performed by a professional personal. ATTENTION: The device internal electronics are sensitive to Electrostatic Discharge (ESD) and must be handled only in an ESD safe environment.
Page 39
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway 4. The circuit board will not have to be completely removed from the housing. The SIM-card orientation on the reader is as follows: 5. Insert the SIM-card in the hinge...
Page 40
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway 7. Push the circuit board into the encapsulation gently until the internal battery holder hits the battery compartment of the encapsulation. The circuit board can't be pushed further until the fixing flaps of the battery holder are squeezed inside the battery compartment of the encapsulation.
Installing this jumper, and thereby enabling the CAN-bus Write capability of the unit, is done on the sole responsibility of the user. Infranet Technologies can not be held responsible for any problems, or damage due to the decision to enable the CAN-bus Write capability.
Appendix E - Open Source Disclaimer The M2M CONTROL CX660 products include several open-source software tools. This open- source software is governed by the terms and conditions of the applicable open source license, and you are bound by the terms and conditions of the applicable open source license in connection with your use and distribution of the open-source software in this product.
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway M2M CONTROL CX660 Specifications Technical data are subject to changes. Page 43 of 44...
Page 44
M2M Control CX660 Technical Manual V1.02 Advanced Automotive M2MI/IoT Gateway * * * END OF DOCUMENT * * * * Page 44 of 44...
