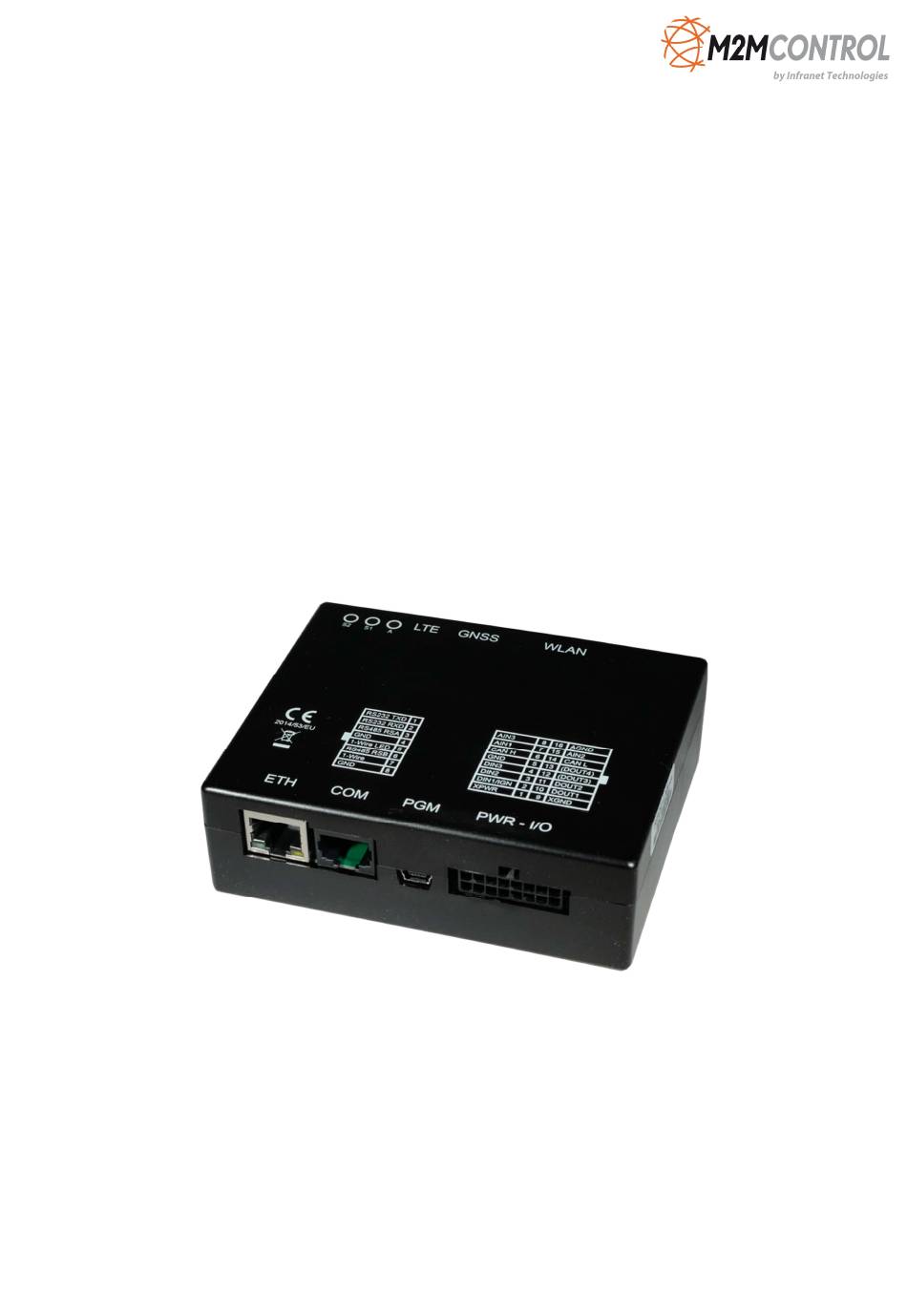

- Page 1 M2M CONTROL CX530 Professional Automotive and industrial M2M/IoT Gateway Technical Manual Version 1.0 Infranet Technologies GmbH, Tempowerkring 19, 21079 Hamburg, Germany, Fon: +49 40 696 47 – 260, support@m2mcontrol.de...
-
Page 2: Introduction
Professional Automotive and industrial M2M/IoT Gateway Introduction The M2M Control CX530 is a powerful M2M/IoT Gateway device that rests on an entirely new hardware and software architecture representing a significant leap in functionality, power, openness, and performance. The M2M Control CX530 has been designed for the most demanding automotive and Industrial Internet of Things applications that dictate the most advanced product available on the market. -
Page 3: Table Of Contents
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Table of contents Introduction ..................................2 Important Information ..............................4 Technical Highlights................................ 5 M2M Control CX530 Overview ............................. 7 Power and I/O Connector .......................... 9 Communication Connector ........................10 Mini USB-B Connector .......................... -
Page 4: Important Information
Infranet Technologies GmbH has failed to eliminate these errors or inaccuracies for this reason. -
Page 5: Technical Highlights
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Technical Highlights Platform: Based on the M2M Control Platform. NX32L (NX32 for Linux) execution architecture. M2M CONTROL IDE development tool. Operates under a full and highly optimized Linux variant. - Page 6 M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Audio: Fully digitized audio system. Transfer, store, and play audio. Digitized cellular audio. DTMF support for Interactive Voice Response applications. Storage: Internal flash drive with up to 128 MByte capacity.
-
Page 7: M2M Control Cx530 Overview

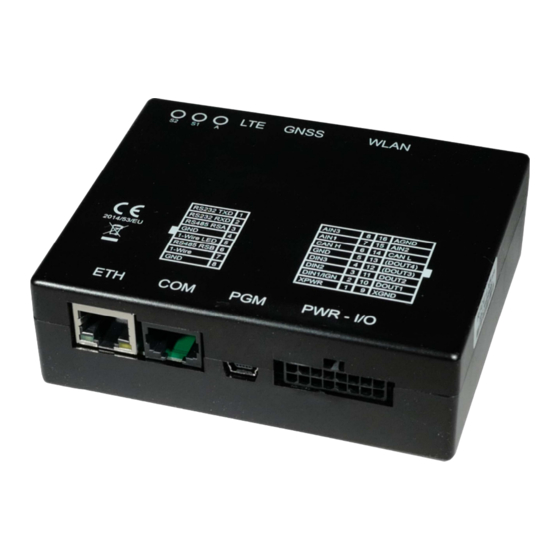

M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway M2M Control CX530 Overview Page 7 of 36... - Page 8 M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway On the frontside of the device, the Ethernet, Communication, and Programming ports are found. Also located on the front side is the Power and I/O connector. Prog. port...
-
Page 9: Power And I/O Connector
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Power and I/O Connector AIN3 8 16 AGND AIN1 7 15 AIN2 CAN-H 6 14 CAN-L DOUT4 DIN3 4 12 DOUT3 DIN2 3 11 DOUT2 DIN1 2 10... -
Page 10: Communication Connector
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Communication Connector RS232 TXD RS232 RXD RS485 RSA 1-Wire LED RS485 RSB 1-Wire RJ45 communication connector Name Description RS232 TXD RS232 Transmit Data RS232 RXD RS232 Receive Data... -
Page 11: Din Rail Mounting
Professional Automotive and industrial M2M/IoT Gateway DIN Rail Mounting The M2M Control CX530 can be delivered in a version suitable for mounting on a standard DIN rail according to IEC/EN 60715. On the bottom side of the device the DIN rail clip allows attaching to the DIN rail. -
Page 12: Digital Outputs
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Digital outputs The digital outputs control four open-drain switches. They function like a contact, where one side is connected to the digital output, and the other side is to the ground internally in the CX530 unit. -
Page 13: Digital Inputs / Ignition Input
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Digital Inputs / Ignition Input The digital inputs are all low-pass filtered and transient protected. To activate the inputs, connect a positive voltage between the input and the GND connector. -
Page 14: Analog Inputs
Professional Automotive and industrial M2M/IoT Gateway Analog Inputs The M2M Control CX530 has three analog inputs, which can be configured individually to work either as voltage or current measurement inputs by using the configuration jumpers. The range in voltage mode is 0.10 VDC, and in current mode 0-20mA. -
Page 15: Can Bus Port
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway CAN bus port The CX530 provides the physical layer for the CAN (Controller Area Network) serial communication interface in accordance with the ISO 11898 standard. The CAN bus is designed for high-speed (up to 1Mbit) robust communication in especially harsh environments like those found in the automotive industry. -
Page 16: Rs232 Port
If the M2M Control CX530 is used as an endpoint node, the jumper for the RS485 port can be inserted in order to terminate the RS485 communication lines with 120Ω. - Page 17 M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway bus (called parasitic power). For this, only two wires are needed – the 1-wire signal and the ground reference – allowing minimal cable installations. For 1-Wire ID-Button readers, which include a built-in LED, a dedicated output is available for this purpose.
-
Page 18: 3D Movement Sensor
Professional Automotive and industrial M2M/IoT Gateway 3D movement sensor The M2M Control CX530 device contains a 3-axis accelerometer to detect vibration and motion. It makes it possible to detect movement and position change in 3 directions, X-Y-Z with force as high as 16g in acceleration. -
Page 19: Led Indicators
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway LED Indicators Three bi-colored (red and green) indicators are present on the device top. One bi-colored LED (A and B) is available to the user, and the remaining two LEDs (S1 and S2) are signaling the status and possible errors of the CX530 device. - Page 20 M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway S1: System LED1 pattern overview Pattern Description Fastest blinking, green The device is initializing, preparing to start the application. Fast blinking, green The device is installing an update. Depending on the kind of S2 On, green update, it may take some time.
-
Page 21: System Reset Switch
Professional Automotive and industrial M2M/IoT Gateway System Reset Switch The M2M Control CX530 device contains a combined reset/diagnostic switch. This switch is accessible on the backside of the unit. It is necessary to use a small thin object with a diameter of approx. -
Page 22: Rechargeable Li-Ion Backup Battery
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Rechargeable Li-Ion Backup Battery The CX530 contains an internal Li-Ion battery for operation even when the external power is absent, making it possible to report power loss etc. Please note, that when external power is removed, the device will be powered down by default. -
Page 23: Lte Cat. 4 Cellular Engine
The Cellular Engine is designed for EMEA, Korea, and Thailand. SIM-Card The M2M Control CX530 device contains a standard Mini SIM card reader located inside the device. The SIM card reader is a lid-based reader with a mechanical lock system to secure the SIM card installation. -
Page 24: Ism Rf
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway ISM RF The CX530 is provided with an ISM band RF radio that gives the device the ability to communicate wirelessly with other certain types of equipment and devices. The radio communicates in the 868 MHz frequency band and complies with the European EN 300 220 requirements. -
Page 25: Antennas
ISM RF performance. Micro SD-CARD reader The M2M Control CX530 device has a standard Micro SD card reader located inside the device (see graphical overview). The Micro SD card reader is a lid-based system with a mechanical lock for Page 25 of 36... -
Page 26: Approved Sd-Cards
Please refer to Appendix C for the Micro SD card installation guide. The M2M Control CX530 supports a FAT file-system for standard PC-compatibility with up to 32 GB capacity support. Both the card detect and the write protect information is available to the user through the application. -
Page 27: Product Identification Label With Barcode
The M2M Control CX530 product identification is found on the device's exterior and contains a unique serial-number in readable form and barcode. The first three digits in the serial number identify the device type, and for the M2M Control CX530, this unique code is either 344 or 350. -
Page 28: Power Consumption
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Power Consumption The table below shows detailed information about the M2M Control CX530 device's typical power consumption while it is running. Typical power consumption: Device operating in normal mode... - Page 29 M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway The table below shows detailed information about the M2M Control CX530 device's typical power consumption in power-saving modes. The following power-saving modes are used: ➢ Mode 1: LED blinks every ~10 s, resumes the application when it is awoken.
-
Page 30: Appendices
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Appendices Appendix A – Assembling/disassembling the device It is necessary to take the device apart to get access to the internal SIM-card reader, Micro SD-card reader, and the configuration jumpers. The bottom part of the encapsulation can be removed after removing the four Torx T7 screws found in each corner. -
Page 31: Appendix B - Installing The Sim-Card
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Appendix B – Installing the SIM-Card Please refer to Appendix A to get inside access to the device. The SIM card reader is a lid-based type with a mechanical lock for insertion of a mini-SIM card. -
Page 32: Appendix C - Installing The Micro Sd Card
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway Appendix C – Installing the Micro SD card Please refer to Appendix A to get inside access to the device. In order to insert a Micro SD card into the reader, open the hinged lid of the card reader and then orientate the card as shown. -
Page 33: Appendix D - Device Configuration Guide
Please refer to Appendix A to get inside access to the device. The M2M Control CX530 has many features, and some of them require configuration by using hardware jumpers located inside the device. The placement of the jumpers are as follows:... - Page 34 CAN bus communication require a proper line termination value (120 Ω assuming a CAT5 twisted pair cable is used) resistors in both ends of the bus. If the M2M Control CX530 device is used as an endpoint, the relevant jumper can be installed.
-
Page 35: Appendix E - Open Source Disclaimer
Professional Automotive and industrial M2M/IoT Gateway Appendix E - Open Source Disclaimer The M2M Control CX530 products include several open-source software tools. This open-source software is governed by the terms and conditions of the applicable open source license. You are bound by the terms and conditions of the appropriate open source license in connection with your use and distribution of the open-source software in this product. -
Page 36: M2M Control Cx530 Specifications
M2M Control CX530 Technical Manual V1.00 Professional Automotive and industrial M2M/IoT Gateway M2M Control CX530 Specifications Page 36 of 36...
