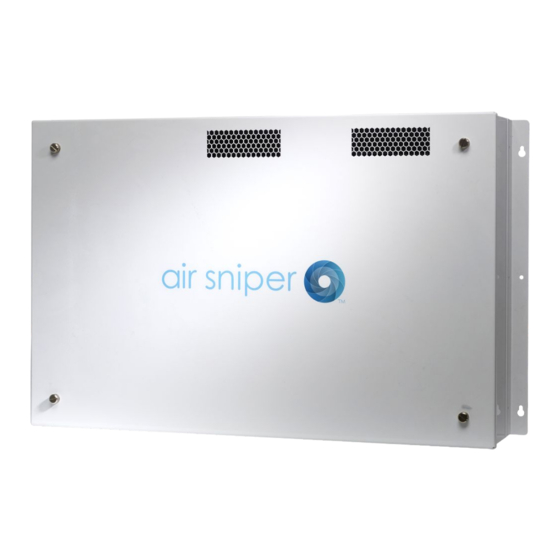

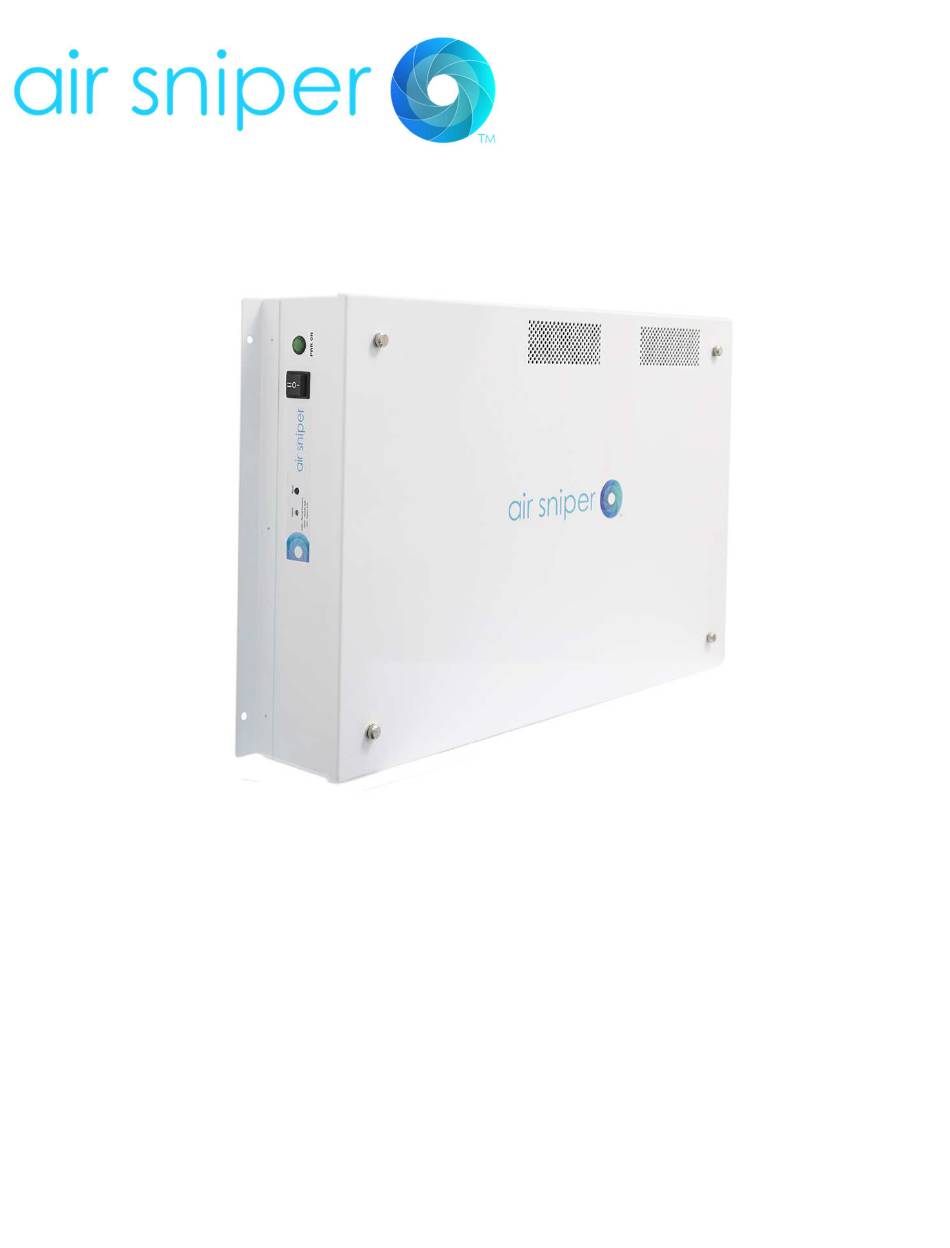

Air Sniper Low Pro

Advertisement

loading
Need help?

Need help?

Do you have a question about the Low Pro and is the answer not in the manual?

Questions and answers

Related Manuals for air sniper Low Pro

Summary of Contents for air sniper Low Pro

  • Page 1 Air Sniper Low Pro...
  • Page 2 Air Sniper Low Pro Maintenance manual Thank you for purchasing and Air Sniper Low Pro. This manual provides step-by-step instructions of how to set up and take care of your new unit. Replacement bulbs can be purchased on our website https://www.airsniper.ca/product/36w-...

  • Page 3: Warranty

    Limited Warranty Three Year Warranty Alpine Innovative Research Inc. (AIR) warrants the Air Sniper™ to be free from defects in the workmanship or materials under normal use and service (the “Warranty”) for a period of three (3) years (the “Warranty Period”) from the date of purchase through an AIR-authorized dealer/distributor.

  • Page 4: How To Set Up Your Unit

    How to set up your Unit 1. Carefully remove your Air Sniper Low Pro from the shipping carton and remove all exterior packaging. 2. If your unit was shipped with bulbs separately please see below for instructions before mounting. 3. If your unit requires Mounting, please choose the appropriate hardware (Some is provided) and Attach using the mounting holes.
  • Page 5 Initial bulb installation instructions 1. Carefully remove your Air Sniper Low Pro from the shipping carton and remove all exterior packaging. 2. Locate the 4x Air Sniper Bulbs (Included in box) 3. Locate the four spring screws on the front cover of the unit.
  • Page 6 6. Locate and remove lamp cover screws (total of 6) set aside. 7. Remove lamp cover and set aside face up if possible, to prevent damage to the reflective material. 8. Locate wingnuts (total of 2) on bulb retainer. 9. Unscrew wingnuts (total of 2) set aside. 10.
  • Page 7 11. Insert bulbs (front to back) 12. Carefully slide bulb retainer over bulbs (top to bottom) 13. Re-insert wingnuts (total of 2) AIR Alpine Innovative Research Inc. / 3855 – 64 Ave. S.E. Calgary, Alberta, T2C 2V5...
  • Page 8 15. Re-insert screws on lamp cover. 16. Replace front cover (ensure it is the right side up). 17. Plug Unit in. 18. Turn unit on. Enjoy your new Low Pro! AIR Alpine Innovative Research Inc. / 3855 – 64 Ave. S.E. Calgary, Alberta, T2C 2V5...

  • Page 9: Filter Cleaning

    The only difference is number or filters and elements. Tools needed:  Hot Water 1. Turn off your Air Sniper Low Pro. The power button can be found on the side of the unit. 2. Unplug unit from the power source 3.

  • Page 10: Bulb Change

    Bulb change The Bulbs in your Air Sniper Low will need to be changed every 18 Months. The Bulb life of the units can be monitored by the bulb status monitor on the side of the unit. You can order new bulbs directly from the dashboard or from our website: https://www.airsniper.ca/product/18w-replacement-bulb-low-base/...
  • Page 11 5. Locate the Lamp Cover on the unit. 6. Locate and remove lamp cover screws (total of 6) set aside. 7. Remove lamp cover and set aside face up if possible, to prevent damage to the reflective material. AIR Alpine Innovative Research Inc. / 3855 – 64 Ave.
  • Page 12 8. Locate wingnuts (total of 2) on bulb retainer. 9. Unscrew wingnuts (total of 2) set aside. 10. Locate bulb retainer. 11. Carefully lift bulb retainer up and over the bulbs. AIR Alpine Innovative Research Inc. / 3855 – 64 Ave.
  • Page 13 12. Set bulb retainer aside. 13. Starting with the front (front to back), remove old bulbs by gently wiggling the white base of the bulb. 14. Repeat with back bulbs (total of 4). AIR Alpine Innovative Research Inc. / 3855 – 64 Ave.
  • Page 14 15. Starting with the back, insert the new bulbs. 16. Repeat with front rows. 17. Carefully slide bulb retainer back over bulbs (top to bottom). 18. Ensure bulb retainer and bulbs are secure. AIR Alpine Innovative Research Inc. / 3855 – 64 Ave.
  • Page 15 19. Re-insert wingnuts (total of 2). 20. Replace lamp cover. 21. Re-insert screws on lamp cover. 22. Replace front cover (ensure it is the right side up). 23. Plug Unit in. 24. Turn unit on. AIR Alpine Innovative Research Inc. / 3855 – 64 Ave.
  • Page 16 25. Reset bulb timer: Locate reset button on unit. 26. Using a timer, hold the reset button for 43 Seconds until the bulb status is green. * NOTE: this must be exactly 43 seconds for the bulb timer to reset* Resume cleaning your Air! AIR Alpine Innovative Research Inc.
