INSTALLATION INSTRUCTIONS

MOUNTING
INSTRUCTIONS
Power Packs are designed to
attach to electrical enclosures
with 1/2" knockouts. Do not mount
unit inside a metal junction box.
INSTALLATION NOTES
1 For supply connections, use
14 AWG (90°C) or larger wires.
Wire all circuits exiting chase
nipple as Class 1 circuits.
2 Suitable for plenum use.
3 Risk of Electric Shock - More
than one disconnect switch may
be required to de-engergize the
equipment before servicing.

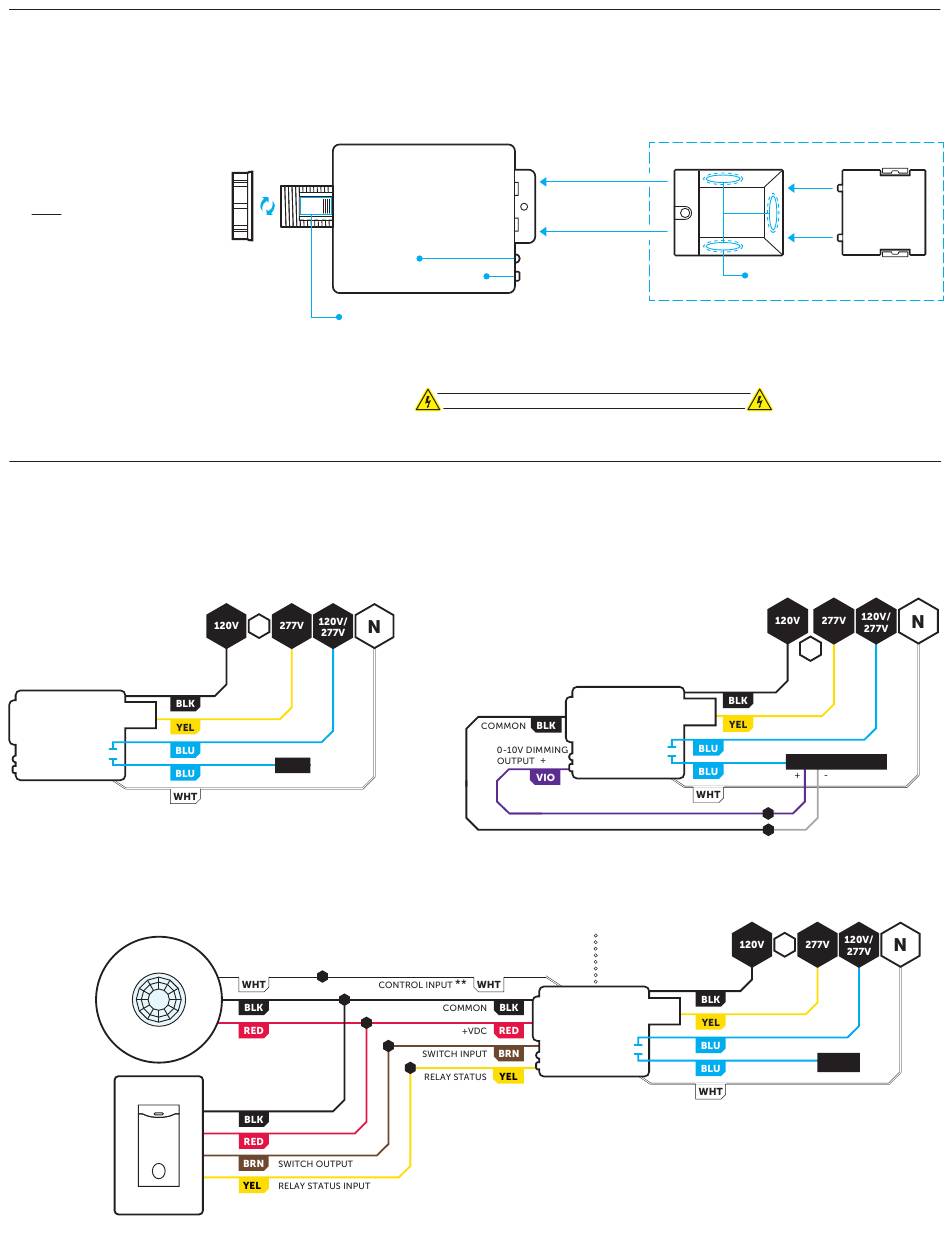

WIRING
MODEL #: SWX-950
SWX-950
WIRELESS
POWER
PACK
MODEL #: SWX-950-AX
SWX-801
SWITCH
POWER PACK
LOCK NUT
LED INDICATOR
TEST/PROGRAMMING BUTTON
CHASE NIPPLE HAS SNAPS THAT ENABLE QUICK
INSTALLATION THROUGH ANY 1/2" KNOCKOUT
* CAP UNUSED BLACK OR YELLOW WIRE
OR
*
*
LOAD
SWX
LOW VOLTAGE
SENSOR
SNAPS DIRECTLY
TO MAIN HOUSING
WARNING: TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE WIRING
MODEL #: SWX-950-D2
SWX-950
WIRELESS
POWER
PACK
CLASS 2 CLASS 1
WIRING WIRING
SWX-950-AX
HYBRID
WIRELESS
POWER PACK
** IF NO SENSORS ARE WIRED
OR WIRELESSLY LINKED, CONNECT
WHITE WIRE TO RED.
LOW VOLTAGE WIRING CHAMBER
WIRING CHAMBER * SNAP-ON COVER
PROVIDES 3 KNOCKOUTS
FOR CONDUIT CONNECTIONS
*CONNECT LOW VOLTAGE CHAMBER TO CONDUIT BEFORE
CONNECTING TO POWER PACK. CONDUIT SHOULD BE
APPROPRIATELY SUPPORTED BY OTHER MEANS AND
NOT USE THE LOW VOLTAGE CHAMBER FOR SUPPORT
* CAP UNUSED BLACK OR YELLOW WIRE
OR
*
*
DIMMING LOAD
OR
*
*
LOAD
* CAP UNUSED BLACK OR YELLOW WIRE
[OPTIONAL]
