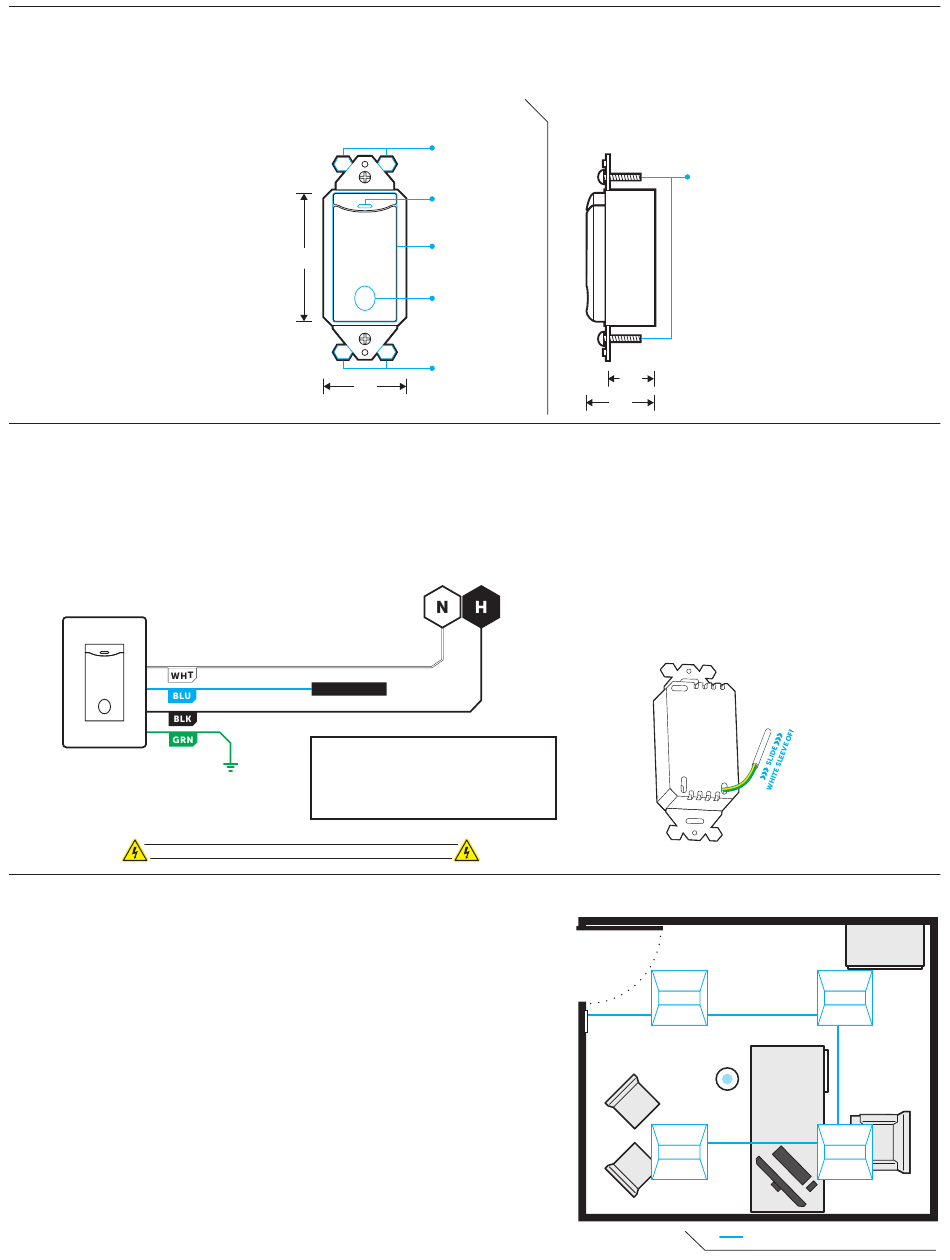

INSTALLATION INSTRUCTIONS

Designed to mount in 1-gang wall box with
Ã
3.28" hole spacing.
Units can also share multiple gang wall boxes
Ã
with other devices.
Unit face is field removable in order to change
Ã
colors. Contact factory for additional faces.
WIRING
Unit works both in installations where Neutral connection is available as well as installations where only Ground connection is present.
Ã
If no neutral is present, remove the white sleeve from the wire & connect the now Green/Yellow wire to Ground.
Ã
Note, either the white wire or green/yellow wire must be connected. The all green wire is just for safety.
Ã
BASIC WIRING
* IF NO NEUTRAL PRESENT, REMOVE WHITE SLEEVE FROM WIRE
SWX-851
WIRELESS
WALL SWITCH
CONTROLLER
WARNING: TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE WIRING
APPLICATIONS
SMALL SPACES
For control of small spaces like a private office, a wireless wall switch controller linked
to a single wireless ceiling sensor (SWX-201-B) is recommended (see diagram on right).
Both occupancy (auto-on) and vacancy (manual-on) operation are achievable in order to
meet energy code requirements.
Small Offices
à Ã
MEDIUM SIZE SPACES
For control of medium size spaces like a conference room or small classroom, a wireless
wall switch controller linked to a single wireless wide view sensor (SWX-401-B) provides
an excellect solution. Linking additional sensors is also an option if necessary. Switching
from a second location (e.g. 3-way) is achieved by linking a remote wireless wall switch
(SWX-852) to the wireless switch controller.
Small Conference
à Ã
Classrooms Rooms
FRONT
2.74"
1.69"
** SENSOR FACE IS FIELD REMOVABLE IN ORDER TO CHANGE COLORS. CONTACT FACTORY FOR ADDITIONAL FACES
& CONNECT GREEN/YELLOW WIRE TO GROUND
*
LIGHTING LOAD
SWITCHED OUTPUT
NOTE: This product is UL listed and meets NEC
404.2(c) & 404.22 guidelines regarding powering
over ground & current leakage. Device may be
used in replacement or retrofit applications
when no neutral conductor is present.
Copy Rooms Private Restrooms
Ã
Short Hallways
Ã
BREAK-OFF
BRACKET EARS
LED INDICATOR
SENSOR FACE **
BUTTON
BREAK-OFF
BRACKET EARS
Break Rooms
Ã
SIDE
SUPPLIED MOUNTING SCREWS
FOR MOUNTING TO
SINGLE GANG SWITCH BOX
0.94"
1.39"
NEUTRAL TO GROUND CONVERSION DETAIL
The white wire has a removable sleeve which reveals a green/
Ã
yellow wire
WIRELESS
WALL SWITCH
CONTROLLER
WIRELESS
CEILING
SENSOR
LINE VOLTAGE
