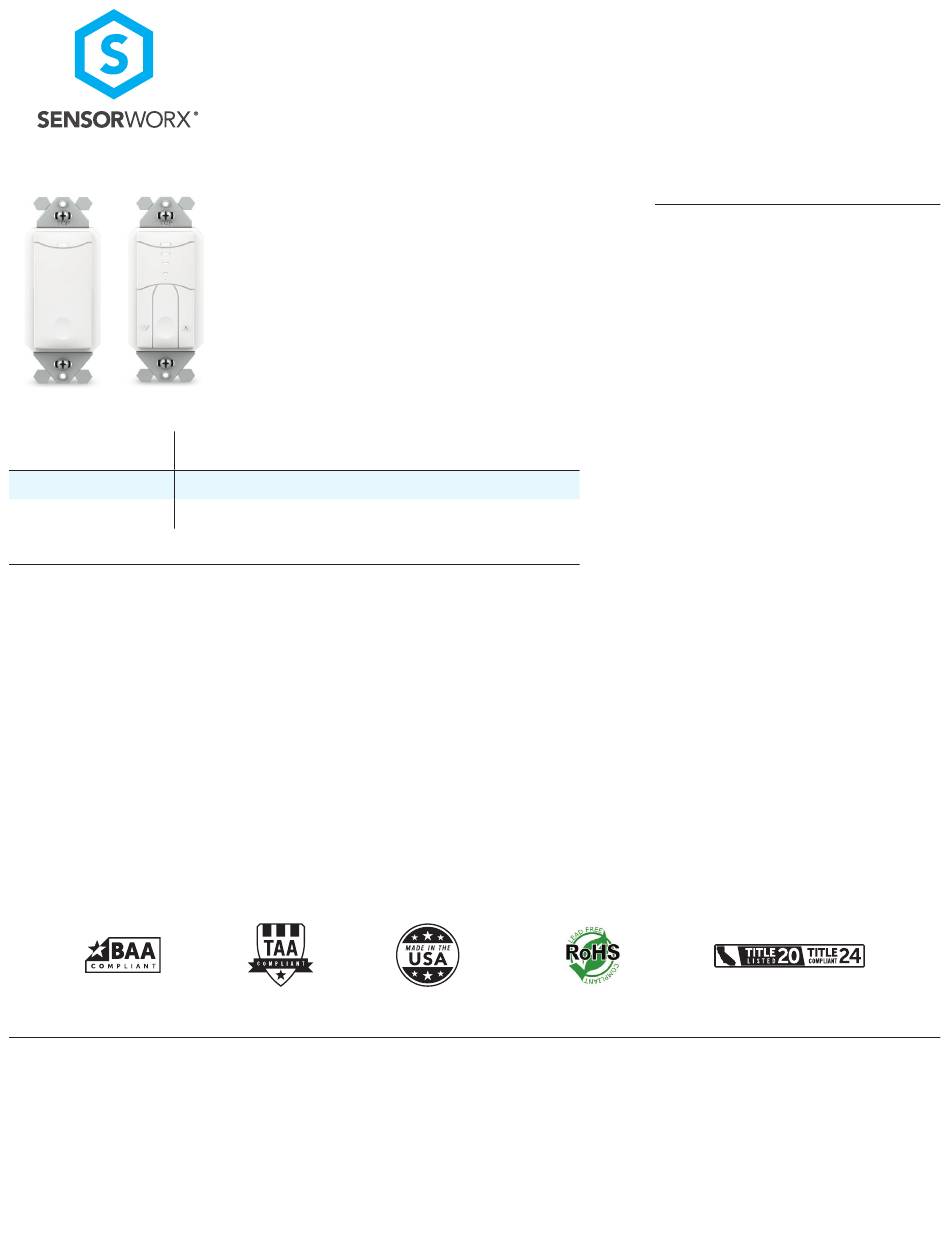

CATALOG NUMBERS
DESCRIPTIONS

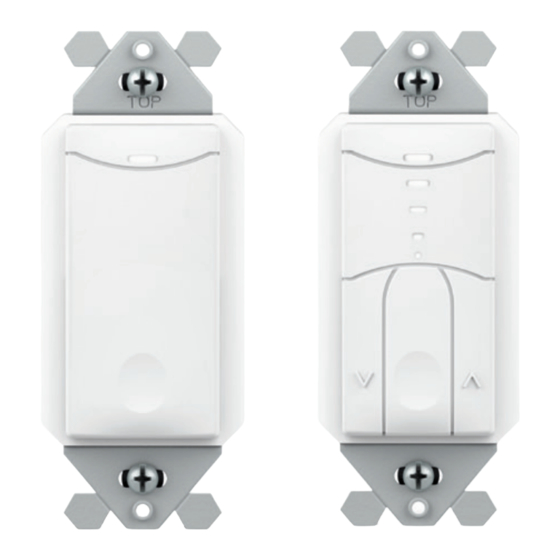

SWX-801-xx
LOW VOLTAGE MOMENTARY SWITCH
SWX-803-xx
LOW VOLTAGE 0-10V DIMMING SWITCH
OVERVIEW
The SENSORWORX low voltage decorator wall station functions as a momentary switch with a pulse length
of 250 msec. Typically, it is utilized along with any SENSORWORX power pack with the auxiliary switch input
option (e.g. model SWX-900-AX). Using a four-conductor low voltage wire (typically 18 AWG), low voltage power,
common, and relay status is wired from the power pack to the switch. The switch output is then wired back to the
power pack's auxiliary switch input. For applications requiring Vacancy (e.g., Manual On) operation, the switch
signals the power pack to turn on lighting after the unit's button is pressed. To achieve multi-way switching, two
or more single button units can be wired in parallel.
For three button units with integrated dimming, an additional 0-10V output wire is provided to connect directly to
fixtures. By default, the lights will always come on to the last dim level, however the unit can be programmed to
turn-on to a preset level in order to accommodate partial-on applications.
FEATURES
Decorator Style Fits Common Wall Plates
Ã
Ã
(not included)
Less than 1" Depth in Wall
Ã
Ã
Multi-way Switching Capable (e.g., 3-way, 4-way)
Ã
Ã
Intuitive Operation
Ã
Ã
Matches Styling of SWX Wall Switch Sensor
Ã
Ã
Locator LED when Lights are Off
Ã
Ã
Modern Look and Intuitive
Ã
Ã
Easy-Tap Button for On/Off, Raise, & Lower
Five Segment LED Indication of Dim Level
Ã
Ã
LOW VOLTAGE
MOMENTARY SWITCH &
0-10V DIMMER
INSTALLATION & OPERATION INSTRUCTIONS
SPECIFICATIONS
ELECTRICAL
OPERATING VOLTAGE
5-24 VDC
CURRENT DRAW
2mA
DIMMING LOAD (Model # SWX-803 only)
50mA, (0-10 VDC ballasts or drivers compliant
with IEC 60929 Annex E.2)
MOMENTARY PULSE LENGTH
250 msec
PHYSICAL
SIZE
2.74"H x 1.68"W x 1.39"D
(6.96 x 4.27 x 3.53 cm)
Fits Decorator Switch Plate Opening
DEPTH IN WALL
0.94" (23.88 mm)
WEIGHT
2.5 oz
MOUNTING
Single Gang Switch Box
ENVIRONMENTAL
OPERATING TEMP
32°F to 122°F (0°C to 50°C)
RELATIVE HUMIDITY
0-95% Non-Condensing,
Indoor Use Only
Configurable Dimming Parameters (High/Low
Ã
Ã
Trims, Turn on Levels, Fade Rates, and Curve
Types)
Settings are Adjustable Without Removing Cover
Ã
Ã
Plate
