COVERAGE
30" to 48' (0.76 - 1.22 m) recommended mounting height
à Ã
Wall to wall (~180 degree) coverage
à Ã
Small motion (e.g., hand movement) detection up to 20 ft (6.10 m), ~625 ft
à Ã
Large motion (e.g., walking) detection greater than 36 ft (10.97 m), ~ 2025 ft
à Ã
Overlapping acoustic detection of occupants over entire coverage area
à Ã
Advanced signal processing filters out nuisance noises while not effecting
à Ã
overall sensitivity
As an added safety convenience, the acoustic detection is left active for
à Ã
10 seconds after sensor turns the lights off to allow for voice reactivation

INSTALLATION

WIRING
For supply connections, use 14 AWG (90° C) or larger wires
à Ã
Risk of Electric Shock - more than one disconnect switch may be required
à Ã
to de-energize the equipment before servicing
It is recommended that wiring the unit's ground connection be done first.
à Ã
Unit works both in installations where Neutral connection is available as
à Ã
well as installations where only Ground connection is present
The unit's two black wires are interchangeable (e.g., one connects to line
à Ã
power, one connects to load)
After wiring and mounting, install wall plate (not included) before turning
à Ã
back on power at the circuit breaker

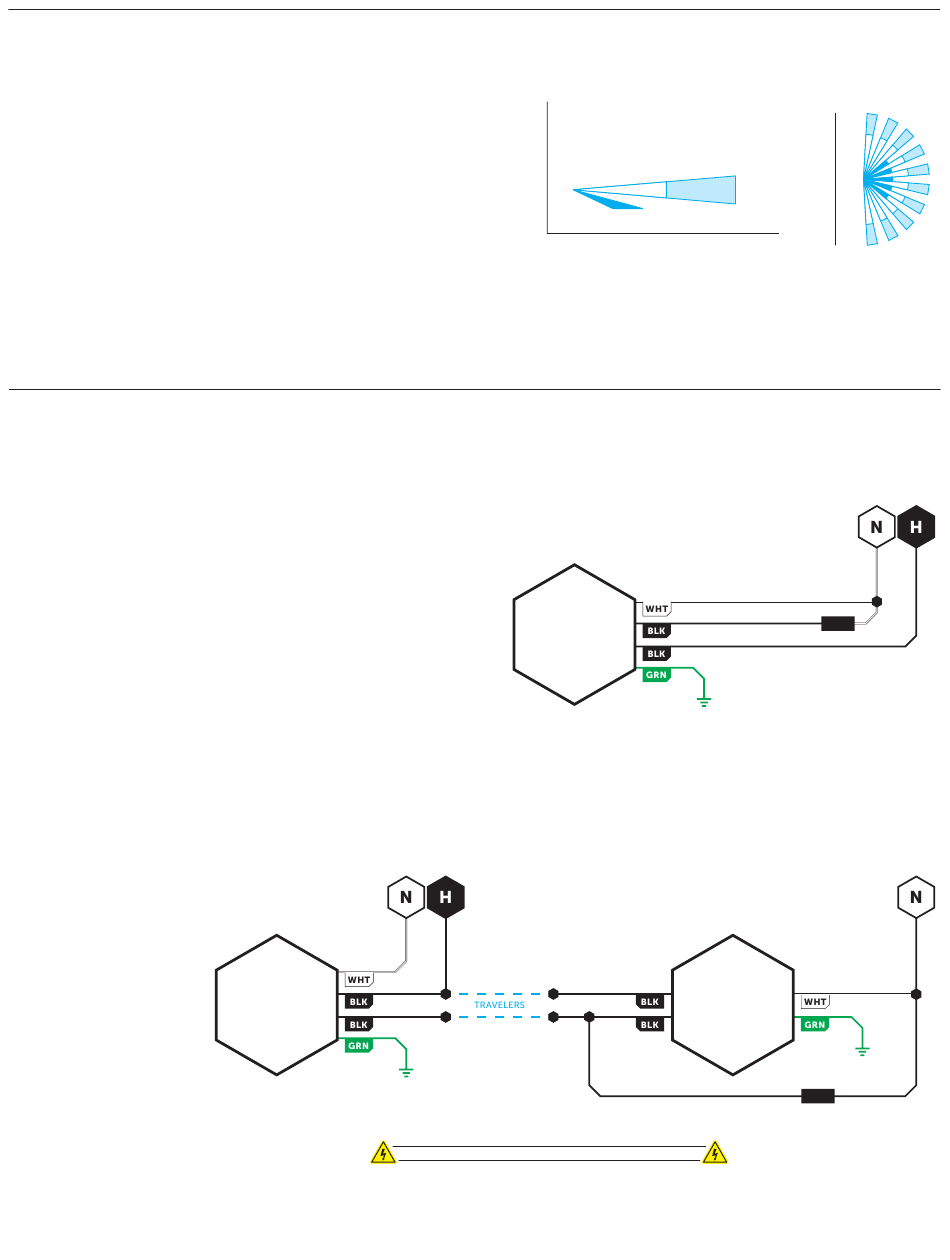

3-WAY WIRING
TWO SENSORS IN PARALLEL
Both sensors must time out for lights to turn off (or both buttons
à Ã
must be switched)
Recommended for Automatic On (Occupancy) applications only
à Ã
2
Standard Wiring
*
SWX
WALL SWITCH
SENSOR
3-Way Wiring
*
SWX
WALL SWITCH
SENSOR
WALL SWITCH
SIDE VIEW
2
0 ft 0 m
4 1.2
0 m
0 ft
Standard Wiring
STANDARD WIRING
LOAD
SWX
WALL SWITCH
SENSOR
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
3-Way Wiring
SWX
WALL SWITCH
SENSOR
WARNING: TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE WIRING
3.0 6.1 9.1 12.2
10 20 40
30
*
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
SWX
WALL SWITCH
SENSOR
*
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
* NEUTRAL CONNECTION IS OPTIONAL, CAP IF UNUSED
TOP VIEW
4 ft Mount
12.1 40
6.1 20
0 m 0 ft
6.1 20
12.1 40
LOAD
*
SWX
WALL
SENS
LOAD
