Summary of Contents for GARCARE GPHT06
- Page 1 Corded Pole Hedge Trimmer Model:GPHT06 Model :GPHT07 Read and understand all instruction carefully before using the tool!
-
Page 2: General Power Tool Safety Warnings
General Power Tool Safety Warnings WARNING： Read all safety warnings and all instructions. Failure to follow all the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use safety equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
-
Page 4: Additional Safety Instructions
work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. - Page 5 Symbols In this manual and/or on the machine the following symbols are used: In accordance with essential requirements of the European directive(s) To reduce the risk of injury, user must read instruction manual. Double insulation ClassⅡdevice .This device must not be earthed. Wear hearing protection.
-
Page 6: Intended Use
Intended Use The hedge trimmer should only be used for trimming hedges, bushes and shrubs. Other use of the machine, not included in this manual, could damage it or seriously injure the operator, and is therefore expressively excluded from the application range. Technical Data Model Rated Rating... -
Page 7: Package Content List

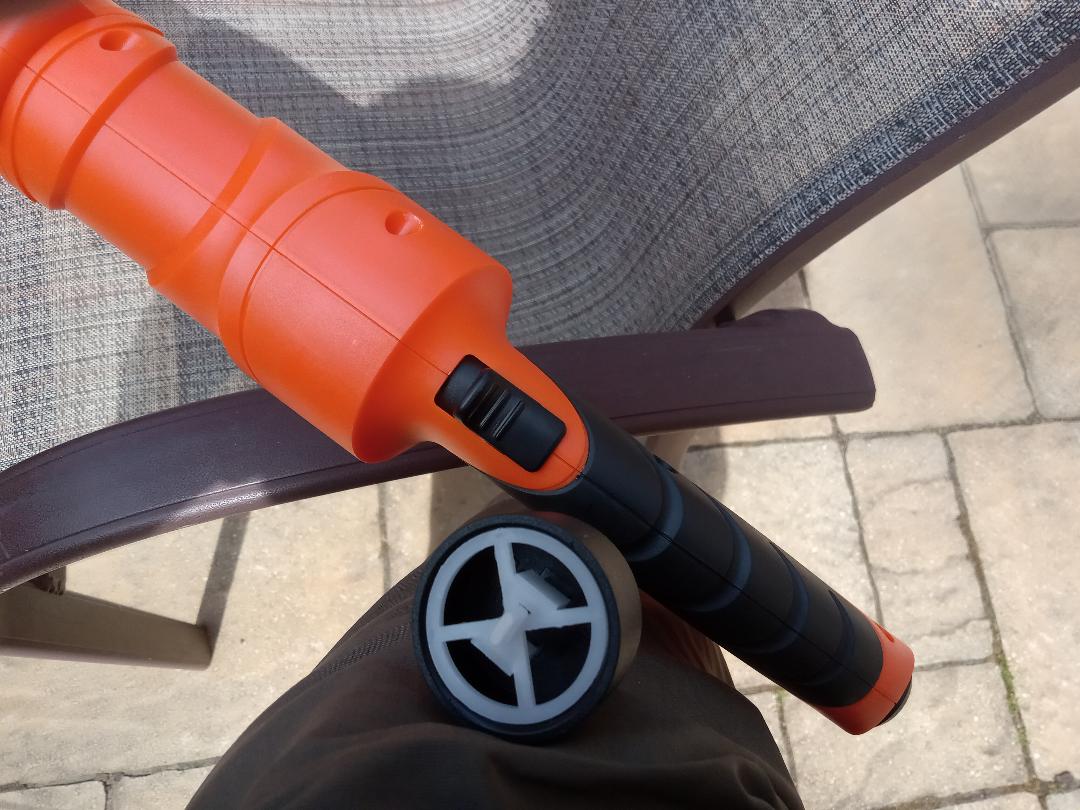

1. Rear handle 2. Safety button 3. Telescopic tube quick release button(FOR MODEL GPHT06) Rotary handle(For MODEL GPHT07) 4. Auxiliary handle(FOR MODEL GPHT06)/ foam for hand hold( FOR MODEL GPHT07) 5. Allen key and storage 6. Motor 7. Blade 8. Safety blade cover 9. - Page 8 For the model 2 in1 trimmer GPHT06 This trimmer can be the pole hedge trimmer and normal hedge trimmer Assembly of the pole hedge trimmer/assembly of the telescopic tube (Fig. 3) Fig. 3 a) 1. Open the quick release button (3) of the telescopic tube.
- Page 9 Fig. 4 Place the auxiliary handle to telescopic tube which near to rear handle (1), adjustment the auxiliary handle to a comfortable working position and tighten the screw (A) by Allen key (B)firmly. Assembly and use of the shoulder strap (Fig. 5 and 6) The shoulder strap is recommended for carrying the machine around when not in use.
- Page 10 Assembly of the normal hedge trimmer without the telescopic tube .(Fig. 7) Fig. 7 Open the quick release button (3) of the housing. Put the rear handle (1) into the opening of the housing. Lock the quick release button(3). Adjustment length of the telescopic tube (Fig. 8) Fig.
- Page 11 Starting and stopping the normal hedge trimmer without telescopic tube (Fig. 10) Fig. 10 To start: Grasp the front handle (14) with one hand, and press the front handle switch (13). Then grasp the rear handle with the other hand, and press the safety button (2) first, then operate the ON/OFF switch (17).
- Page 12 For the pole hedge trimmer GPHT07 This model just can be the pole hedge trimmer Assembly: 1.Loosen the 4 pcs screws on the rotary handle(3) and take out the big screw at the middle of the screw(Fig12) . 2. Put the telescopic tube into the rotary handle ,tighten the big screw and 4 pcs screw .
-
Page 13: Cutting Tips
Do not connect to power supply until assembly is complete, Failure to comply could result in accidental starting and possible serious personal injury. Cutting Tips Assume a secure position, using two hands to hold the hedge trimmer and switch on. Trim both sides of the hedge, starting at the bottom. - Page 14 20161111 SAVE THIS INSTRUCTION MANUAL AS LONG AS YOU CAN ! Customer Service mail:garcareservice@gmail.com...
