Summary of Contents for DIGITEN WTC100

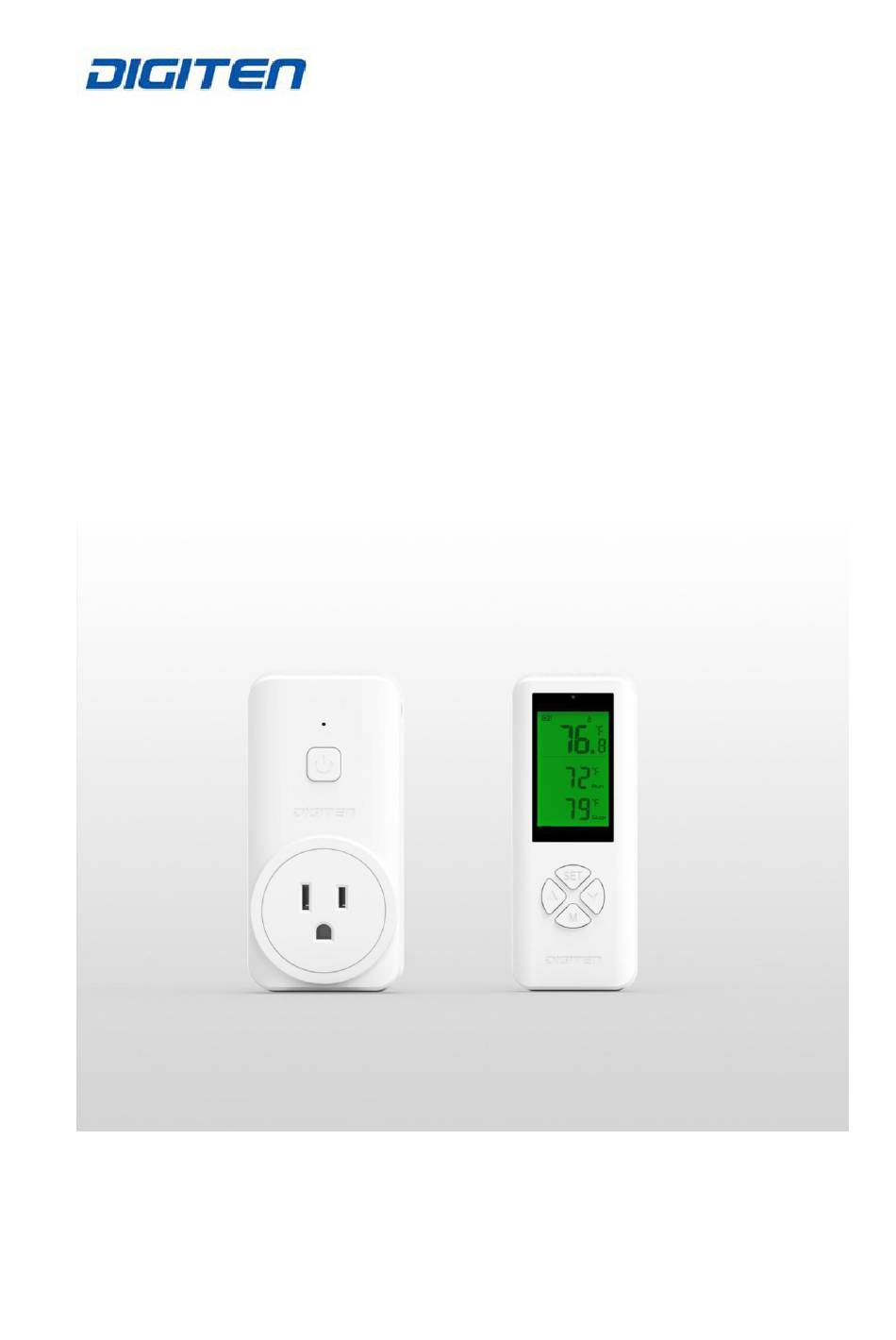

- Page 1 USER MANUAL Wireless Thermostat...
- Page 2 WTC100 WTC200 www.digit-en.com service@digit-en.com FEATURES • Easy to set with memory function • Plug and play, work with 100-240V AC • Display current temperature • Display set temperature (run temperature and stop temperature) • Automatic cooling or heating • Manually turn on / off function •...

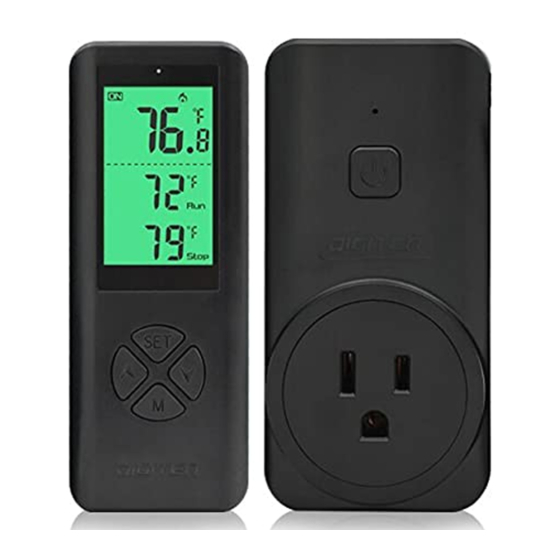

- Page 3 Receiver Remote controller LCD display...
-
Page 4: Specifications
Specifications WTC100 WTC200 Receiver voltage 100-240V AC requirement Load capacity 100-240VAC 13A, 1500W@110VAC, 2500W@220VAC Remote batteries 2PCS 1.5V AAA, standby for 6 months requirement Transmission distance 100m（open space） Measuring temperature -10.0 ° C ~ 80 ° C, 14 ° F ~ 176.0 °... - Page 5 Measure temp Resolution ±0.1°C /°F Control Precision ±1°C /°F High 0-80°C temperature alarm Remote control refresh 20 Seconds frequency Temperature probe Built in remote Receiver with 2m/6ft NTC probe Put in or replace the Battery 1.2 AAA size batteries are needed for the remote. Make sure they are put in right direction 2.When the low battery warning appears, please change...
-
Page 6: Cooling Mode
receiver. 2, Press and hold button, the LED flashes 5 times, then flash 2 times quickly before release the button. All remotes will be unpaired. If you repair the remote, please repeat the step 1. Note： A remote can control multiple receivers. Change the temperature unit Press the button for 3 seconds to switch the temperature unit. -
Page 7: Heating Mode
Heating mode Set the temperature value RUN<STOP, the controller is in heating mode, and the LCD displays the HEATING symbol 2.1 When the CURRENT temperature is less than or equal to the RUN value, the heating operation starts, the relay outputs, the LCD displays , the green light on the receiver is on, when the CURRENT rises to the STOP value, the heating operation stops, the... -
Page 8: Delay Function
according to the previous setting value until 5 minutes. Delay function Damage can occur if the compressor restarted too soon after shutdown. This feature forces the compressor to wait for a few minutes before restarting. During the waiting time, the display will flash , When the safe waiting time has elapsed, the display stop flashing and the compressor turns on... -
Page 9: Restore Factory Settings
2. Example In cooling mode, you want to keep room temperature at 77F， High alarm at 88F, Low alarm at 70F Long press SET button until the display appears on ，and the setting value flash. Press set the RUN at 77F, STOP is 75F. Short press SET button to set High and Low value. -
Page 10: Troubleshoot
High High alarm value 0-70C 32-158F 158F Low alarm value 0-70C 32-158F Delay Delay protecting time 0-10 minutes Manual turn on/off function Press and hold the M button for 3 seconds, the controller switches to the manual mode, Always on or Always off will appear on the display. Short press the M key to turn on/off the device. - Page 11 4.2, the measured temperature exceeds the measurement range, the current value shows HH (high temperature), LL (low temperature) WARRANTY The DIGITEN products are guaranteed to the original owner for one year against defects in workmanship and materials. Please contact us: service@digit-en.com www.digit-en.com/support...
