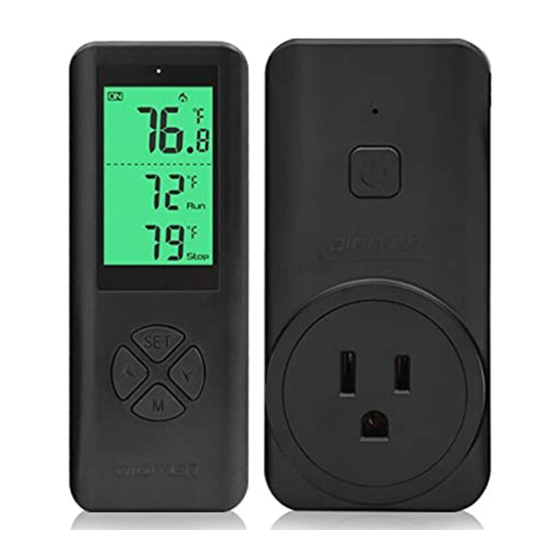

- Page 1 USER MANUAL Wireless Thermostat WTC100 WTC200 www.digit-en.com service@digit-en.com...
- Page 2 FEATURES • Easy to set memory function • Plug and play, Works at 100-240V AC • Displays current temperature • Displays stop and start temperature settings • Automatic cooling or heating • Manual on / off function • Switch between °C / °F •...
- Page 3 Remote controller LCD display...
-
Page 4: Specifications
Specifications WTC100 WTC200 Operating voltage 100-240V AC 100-240VAC 13A, Load capacity 1500W@110VAC, 2500W@220VAC Remote batteries required 2PCS 1.5V AAA, standby for 6 months 100m（open space） Transmission distance Temperature range -10.0 ° C ~ 80 ° C, 14 ° F ~ 176.0 ° F Activation temperature range 0°C~70°C, 32°F~158.0°F... -
Page 5: Cooling Mode
LED flashes 5 times, then flash 2 times quickly before release the button. All remotes will be unpaired. If you re-pair the remote, please repeat the step 1. Note： One remote can control multiple receivers (Only WTC100). Change the temperature unit Press the button for 3 seconds to switch the temperature units. -
Page 6: Delay Function
heating operation starts, the relay outputs, the LCD displays , the green light on the receiver turns on, when the CURRENT rises to the STOP value, the heating operation stops, the LCD displays , the green light on the receiver is off. 2. -
Page 7: Restore Factory Settings
change the number. Short press SET button to set next valve, or long press the SET button to exit and save. Use this method to set the RUN/STOP/Delay/HIGH/LOW value respectively. After setting all the parameters, press and hold the SET button to exit and save. If there is no action taken for 30 seconds, setting mode will be exited and any changed will not be saved. -
Page 8: Troubleshoot
4.2. If the measured temperature exceeds the measurement range, the current value shows HH (high temperature), LL (low temperature) WARRANTY The DIGITEN products are guaranteed to the original owner for one year against defects in workmanship and materials. Please contact us: service@digit-en.com www.digit-en.com/support...
