Summary of Contents for DIGITEN DTC-102

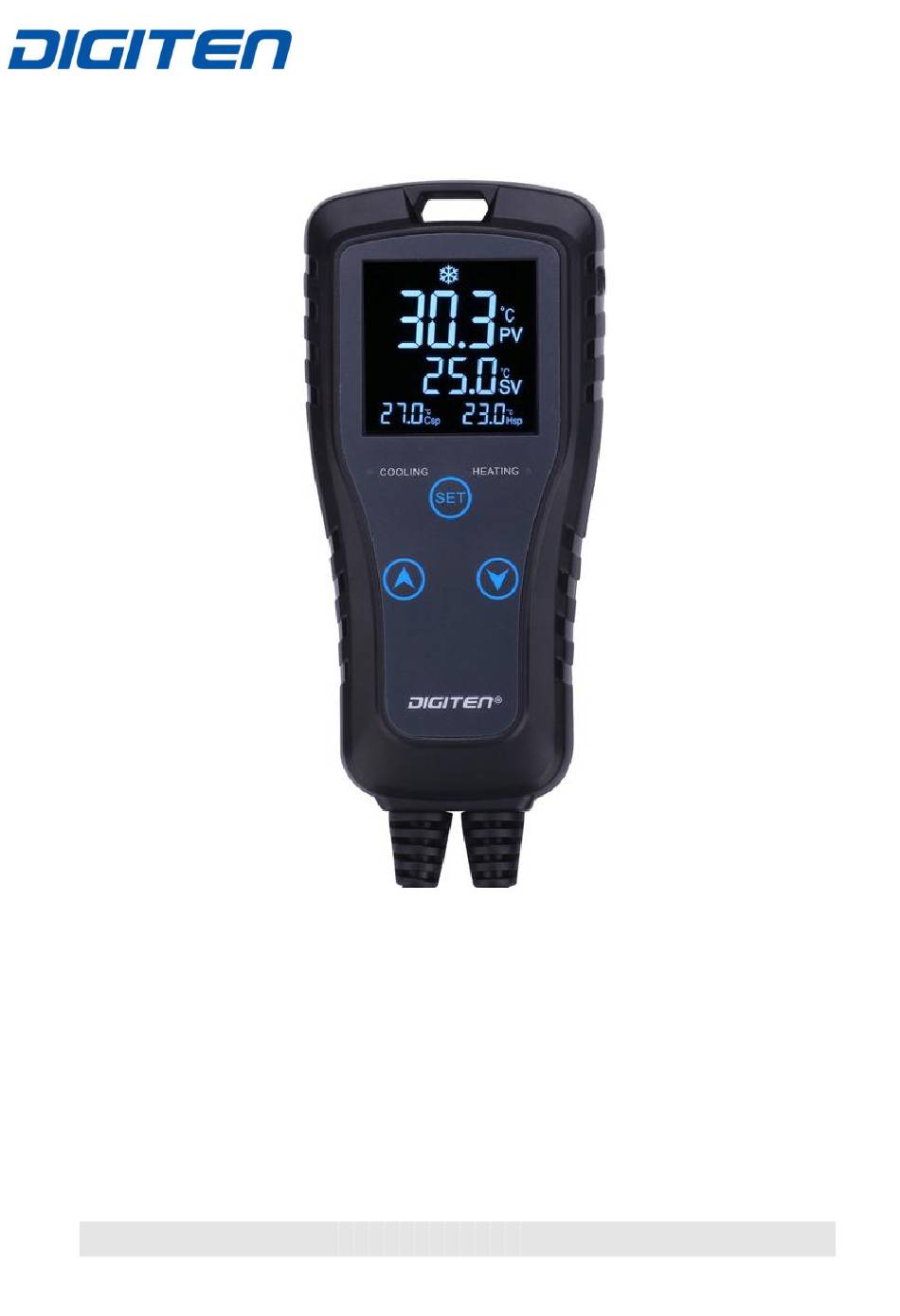

- Page 1 Thermostat Manual DTC-102 www.digit-en.com service@digit-en.com...
-
Page 2: Table Of Contents
Manual Index Features ………………………………………………………………………………………page 1 Technical specifications………………………………………………………………………page 1 Panel instruction………………………………………………………………………………page 2 View setting value ……………………………………………………………………………page 3 Setting Instruction …………………………………………………………………………… page 3 Setup Flow Char ………………………………………………………………………….page 3 How to change temperature unit…………...............page 3 Set the SV value…………………………………......….......page 4 Setting Other Functions…………………………………..........page 4 How to restore default setting…………………………………........page 5 Function range and setting…………………………………….. -
Page 3: Features

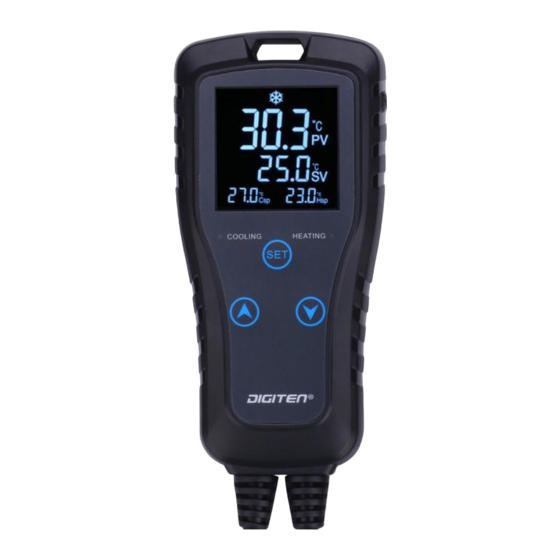

The DTC-102 Thermostat is dual-stage, digital temperature controller. The large, lighted LCD screen display is easy to read. The case is designed with fireproof ABS material for human engineering. Temperature sensor is waterproof with high quality, high-accuracy. Features •Large LCD screen;... -
Page 4: Panel Instruction
Panel instructions 1. PV: Current temperature. 2. SV: Set Temperature 3. HD: Heating Differential 4. CD: Cooling Differential 5. AL: Low Temperature Alarm 6. AH: High Temperature Alarm 7. DP: Time of Compressor Delay Starting 8. CA: Temperature Calibration : Setting Mode : Cooling Mode : Heating Mode 12. -
Page 5: View Setting Value
View setting value When the controller is working normally, short press SET and you can look at the parameter values in order Setting Instruction How to change temperature unit Long press SET button until ℉ and ℃ flash Press to switch the desired temperature unit Long press SET button for 3S again to save and exit Notice: When temperature unit value has been changed, all the setting value will be recovered to factory settings. -
Page 6: How To Restore Default Setting
Note: If no entries are made for 30 seconds while programming is in progress, the control reverts to the normal temperature display. Set Other Functions Long press the SET button about 3 seconds until LCD display Press to adjust the temperature Short press SET button to set next function. -
Page 7: Function Introduction
Function Introduction Cooling Mode When PV(Current Temperature) ≥ Csp(Cooling Start Point), the temperature controller enter cooling mode. The LCD will show ,the cooling LED is light on the panel, the cooling relay is closed, then the cooling socket will output voltage, and the cooling equipment start working. When LED and flash, it means the cooling equipment enter compressor delay protection status. -
Page 8: High/Low Temperature Alarm (Ah/Al)
High /Low temperature Alarm (AH/AL) When current temperature PV ≥high temperature alarm value AH, high temperature alarm will be triggered, buzzer will alarm with tone" Bi-Bi-Bi", press any key to cancel the alarm until the temperature is lower than AH value. At the same time, cooling and heating function stops. When current temperature PV ≤... -
Page 9: Application
Application The DTC-102 thermostat can be used to control a wide variety of dual-stage refrigeration and heating, or HVAC equipment, Typical applications include： Retail store display freezers and coolers • Supermarket display cases for product/meats • Retail store walk-in freeze and coolers •... -
Page 10: Warranty
LCD. Please check if the loading is contacted reversely to heating or cooling outlet If your DTC-102 does not operate properly after trying the troubleshooting steps, please send your questions to our email: service@digit-en.com. WARRANTY The DIGITEN products are guaranteed to the original owner for one year against defects in workmanship and materials.
