1. When using a unit that has intermediate Level Inches,
remove the handle of the main winch and place it on the
intermediate Level Winch.

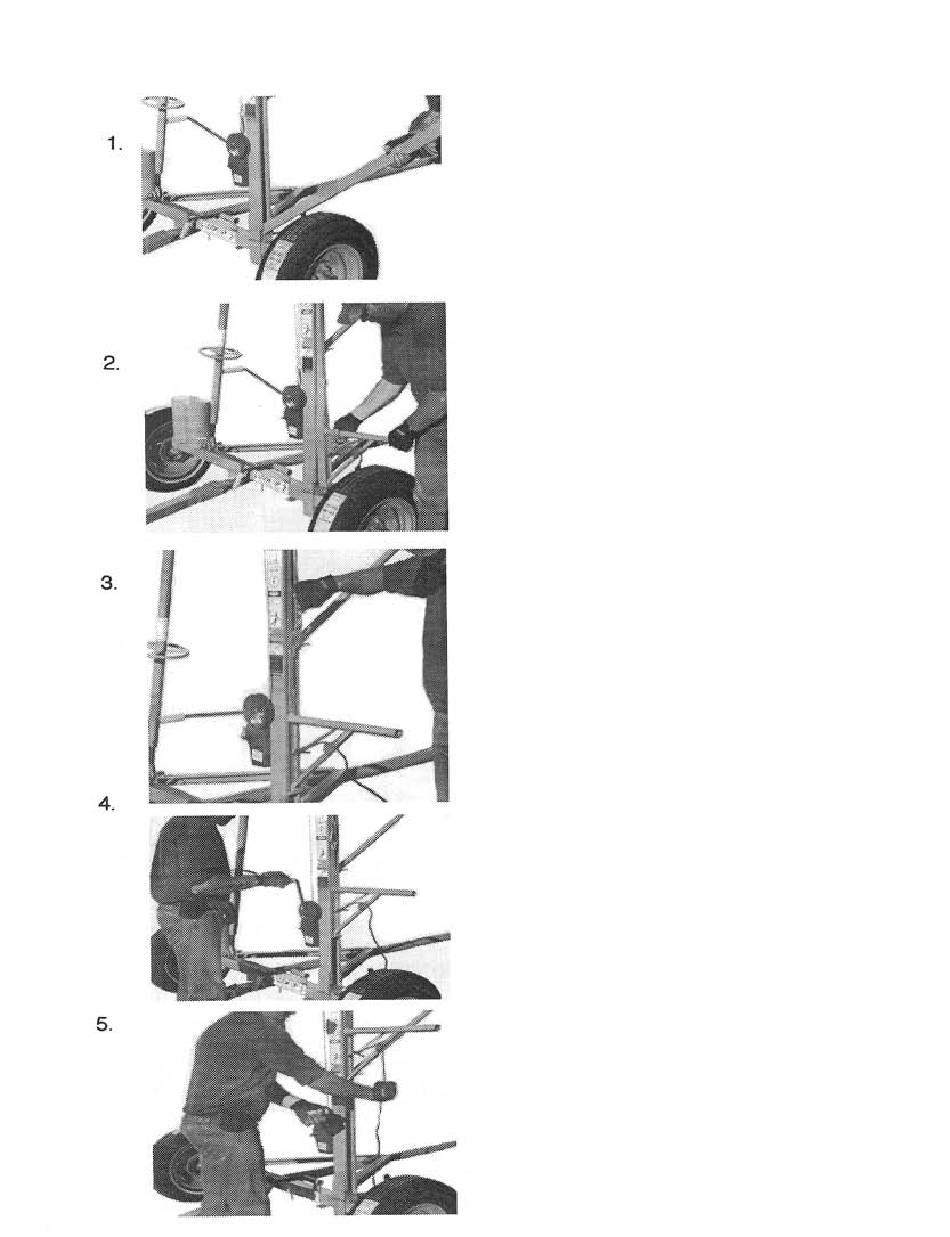

2. Insert guide pins ( located at the top) of Intermediate Level
Lift Arm into the bottom of the upright channel. (PHOTO 1)
3. Raise arm until it comes into position (NOTE: Notches
on bottom of lift arm) so the notches on the bottom
end of the lift arm will slip into the upright channel lips.
(PHOTO 2)
4. Raise lift arm until pawl engages a notch on the
upright channel. Unwind I/L winch to provide enough
cable slack to attach link snap into loop welded on face
of lift arm. Take up cable slack with I/L winch.
(PHOTO 3)
5. Place Intermediate Level on lift arms(with gate end
near ladder) as you would a main platform. Secure with
2-3/8" safety pins provided. Due to the weight of the
platform, you may wish to use lifting equipment, such
as a forklift, to initially place the platform on lift arms.
6. To raise, crank clockwise on the I/Level winch.
Raising (PHOTO 4) and lowering (PHOTO 5) the
Intermediate Level using the I/Level winches is
accomplished in the same manner as the main platform.
(See RUSTGO GENERAL OPERATING INSTRUCTIONS
page for full explanation.)
If you are using two Intermediate Level, the lower one is
raised & lowered in the same manner as the upper one.
Detach Link Snap from upper I/L lift arm and reattach to
lower platform.
lowering.
In addition to the rope, the Intermediate level lift arms
are provided with a cable, sheathed in vinyl tubing, to
lower the platform the final few feet, if so desired. To
lower, raise platform slightly, grasping the cable and
angled brace squeeze cable to disengage pawl from
notches and carefully let platform down to desired
height. Then release cable to engage pawl in notch or
remove from unit.
NOTE: When you lower the Intermediate level down to
the bottom 2 stops (winch bolts) of the upright, you are
not able to move the main (2'x20') platform because
the winch handle will not clear the I/Level platform.
