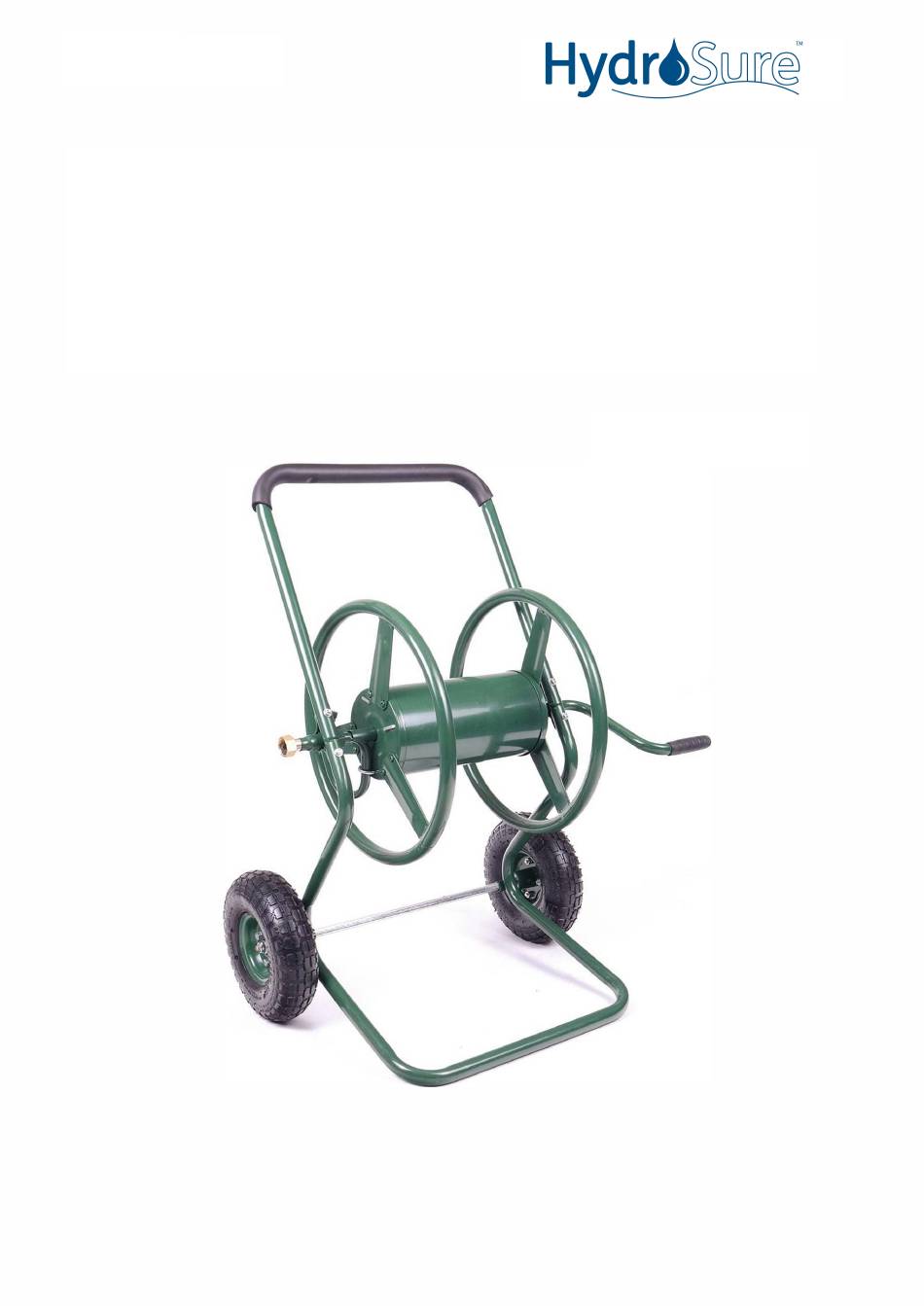

- Page 1 HS2WHC HS2WHC HS2WHC HEAVY DUTY HOSE REEL CART 2 WHEEL HydroSure 100m Two Wheel Hose Cart Front Loader ASSEMBLY INSTRUCTIONS Assembly Instructions...
- Page 2 Warranty This product is covered by the manufacturer’s one-year limited warranty. This guarantees that as of the date of purchase, the product is free of defects in material and workmanship. Under normal use and proper care, this product will remain free of defects for one year from the date of purchase.
- Page 3 PARTS and HARDWARE LIST PART# QUANTITY DESCRIPTION Frame Axle Mount Axle Wheel Large Washer 12 mm Large Nut 12 mm Pull Handle Hose Reel Handle Slot Coach Bolt 6x35 mm Screw 6x3 0 mm Lock Nut 6 mm Dome Nut 6 mm Handle Leader Hose U Bracket...
- Page 4 ASSEMBLY INSTRUCTIONS Remove Large Washer (4) and Large Nut (5) from each end of the Axle (2). B • Attach the Axle (2) to the Frame (1) via the Axle Mounts (1-A). Slide the Wheels (3) on to each of the Axle (2) with the valve stems facing outwards.
- Page 5 ' / 1 Line up the mounting holes of the Hose Reel (7) and Frame (1) and 7- a �-� attach using the U-bracket (14), Coach Bolts (8), Small Washers (15) and Lock Nuts (10). This will also secure the Pull Handle (6). Repeat the process on the other side of the frame.
