pmvmounts

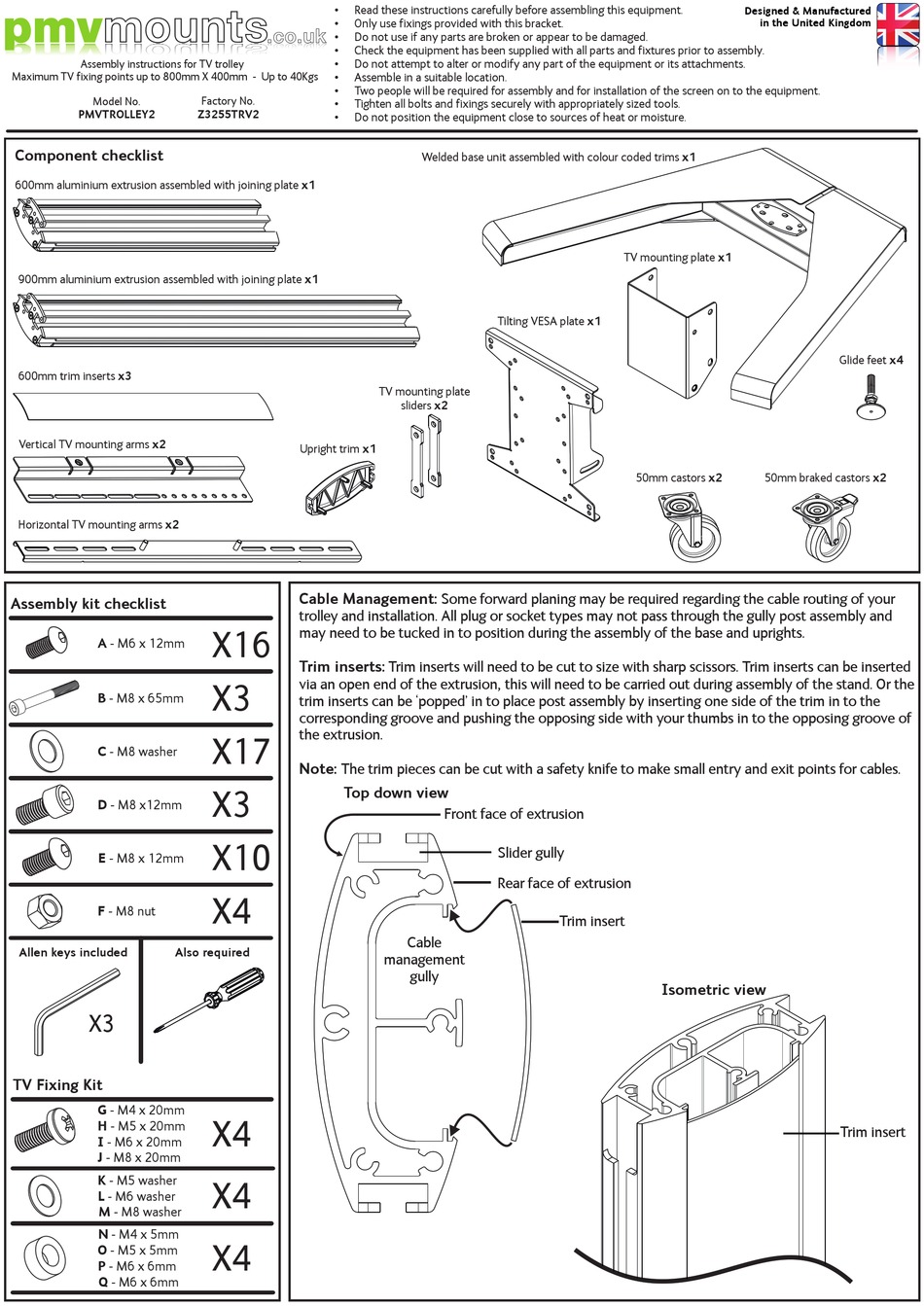

Assembly instructions for TV trolley
Maximum TV fixing points up to 800mm X 400mm - Up to 40Kgs
Model No.
PMVTROLLEY2
Component checklist
600mm aluminium extrusion assembled with joining plate x1
900mm aluminium extrusion assembled with joining plate x1
600mm trim inserts x3
Vertical TV mounting arms x2
Horizontal TV mounting arms x2
Assembly kit checklist
A - M6 x 12mm
B - M8 x 65mm
C - M8 washer
D - M8 x12mm
E - M8 x 12mm
F - M8 nut
Allen keys included
Also required
X3
TV Fixing Kit
G - M4 x 20mm
H - M5 x 20mm
I - M6 x 20mm
J - M8 x 20mm
K - M5 washer
L - M6 washer
M - M8 washer
N - M4 x 5mm
O - M5 x 5mm
P - M6 x 6mm
Q - M6 x 6mm
Read these instructions carefully before assembling this equipment.
Only use fixings provided with this bracket.
.co.uk
Do not use if any parts are broken or appear to be damaged.
Check the equipment has been supplied with all parts and fixtures prior to assembly.
Do not attempt to alter or modify any part of the equipment or its attachments.
Assemble in a suitable location.
Two people will be required for assembly and for installation of the screen on to the equipment.
Factory No.
Tighten all bolts and fixings securely with appropriately sized tools.
Z3255TRV2
Do not position the equipment close to sources of heat or moisture.
Upright trim x1
Cable Management: Some forward planing may be required regarding the cable routing of your
trolley and installation. All plug or socket types may not pass through the gully post assembly and
may need to be tucked in to position during the assembly of the base and uprights.
X16
Trim inserts: Trim inserts will need to be cut to size with sharp scissors. Trim inserts can be inserted
via an open end of the extrusion, this will need to be carried out during assembly of the stand. Or the
X3
trim inserts can be 'popped' in to place post assembly by inserting one side of the trim in to the
corresponding groove and pushing the opposing side with your thumbs in to the opposing groove of
the extrusion.
X17
Note: The trim pieces can be cut with a safety knife to make small entry and exit points for cables.
Top down view
X3
X10
X4
X4
X4
X4
Welded base unit assembled with colour coded trims x1
Tilting VESA plate x1
TV mounting plate
sliders x2
Front face of extrusion
Slider gully
Rear face of extrusion
Cable
management
gully
TV mounting plate x1
50mm castors x2
Trim insert
Isometric view
Designed & Manufactured
in the United Kingdom
Glide feet x4
50mm braked castors x2
Trim insert
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for pmvmounts PMVTROLLEY2
Summary of Contents for pmvmounts PMVTROLLEY2
- Page 1 Model No. Factory No. Tighten all bolts and fixings securely with appropriately sized tools. PMVTROLLEY2 Z3255TRV2 Do not position the equipment close to sources of heat or moisture. Component checklist Welded base unit assembled with colour coded trims x1...
- Page 2 Attach castors or feet to base unit. The base comes preassembled with welded mounting plates, welded bracing and bonded aesthetic trim pieces. 1. Carefully turn the base upside down and attach x4 castor or x4 feet to all x4 corners as pictured Fig 1A. 2.
- Page 3 Assemble TV mounting plate. The sliders come with a soft pad on the back edge which help to hold the slider in position within the slider gully, however it must be held at all times until fully tightened. 3A Install the mounting plate sliders inside the TV mounting plate using x4 bolts with washers Fig 3A 3B Leave a gap of 5mm between each slider and the TV mounting plate Fig 3B.
- Page 4 Continued: 4C Position horizontal TV arms into the corresponding grooves on the vertical TV arms, fix in place using x4 bolts with washers - Fig 4C 4D Position TV VESA plate over the studs on the horizontal arms and fix in position using x4 nuts with washers - Fig 4D Tilting VESA plate Horizontal VESA arms Mount screen to upright assembly.
