Mounting instructions for universal ceiling TV mount & bracket.
VESA 200 / 300 / 400 / 600x400 - Universal up to 680mm X 475mm
32" to 55" (81cm to 140cm) - Up to 35Kgs
Model No.
PMVMOUNTCEILING
Mount Assembly Kit
x2
A - M8 x 75mm Bolt
x2
B - M8 Nut
x2
C - M8 washer
x4
D - M6 x 12mm Bolt
x6
E - M6 washer
x8
F - M6 Grub Screw
x4
G - M6 Nut
x4
H - M6 x 20mm

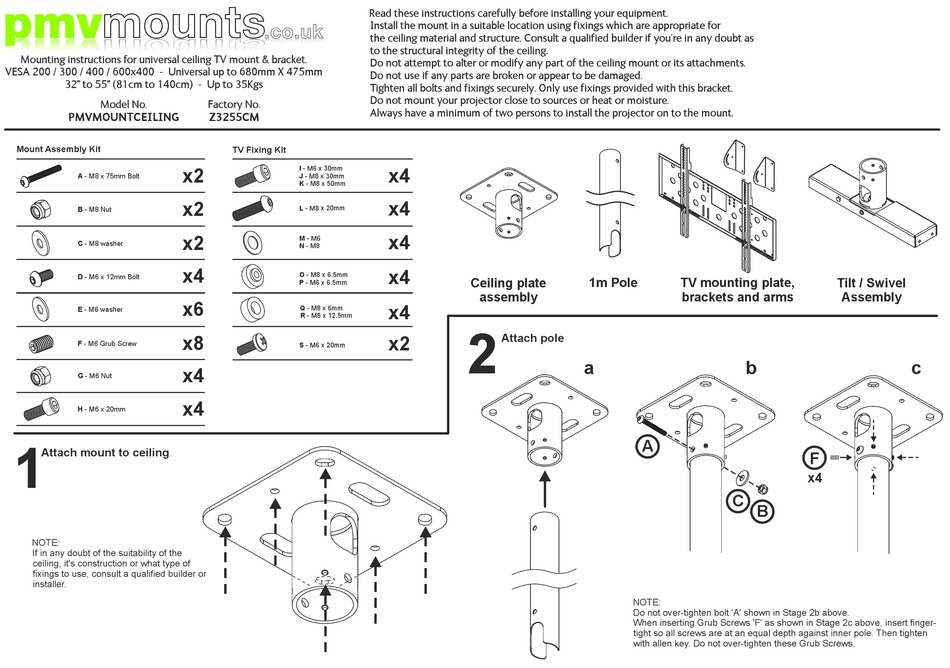

1 Attach mount to ceiling
NOTE:
If in any doubt of the suitability of the
ceiling, it's construction or what type of
fixings to use, consult a qualified builder or
installer.
Read these instructions carefully before installing your equipment.
Ÿ
Install the mount in a suitable location using fixings which are appropriate for
Ÿ
.co.uk
the ceiling material and structure. Consult a qualified builder if you're in any doubt as
to the structural integrity of the ceiling.
Do not attempt to alter or modify any part of the ceiling mount or its attachments.
Ÿ
Do not use if any parts are broken or appear to be damaged.
Ÿ
Tighten all bolts and fixings securely. Only use fixings provided with this bracket.
Ÿ
Do not mount your projector close to sources or heat or moisture.
Ÿ
Factory No.
Always have a minimum of two persons to install the projector on to the mount.
Ÿ
Z3255CM
TV Fixing Kit
I - M6 x 30mm
J - M8 x 30mm
K - M8 x 50mm
L - M8 x 20mm
M - M6
N - M8
O - M8 x 6.5mm
P - M6 x 6.5mm
Q - M8 x 6mm
R - M8 x 12.5mm
S - M6 x 20mm
x4
x4
x4
x4
Ceiling plate
assembly
x4
2 Attach pole
x2
1m Pole TV mounting plate,
brackets and arms
a b
A
C
B
NOTE:
Do not over-tighten bolt 'A' shown in Stage 2b above.
When inserting Grub Screws 'F' as shown in Stage 2c above, insert finger-
tight so all screws are at an equal depth against inner pole. Then tighten
with allen key. Do not over-tighten these Grub Screws.
Tilt / Swivel
Assembly
c
F
x4
