pmvmounts

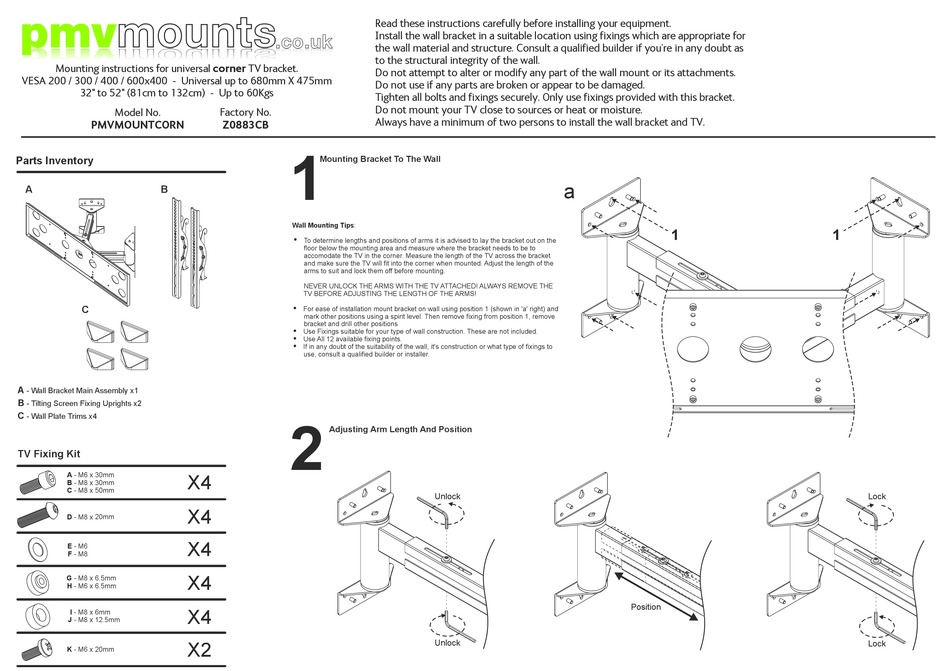

Mounting instructions for universal corner TV bracket.
VESA 200 / 300 / 400 / 600x400 - Universal up to 680mm X 475mm
32" to 52" (81cm to 132cm) - Up to 60Kgs
Model No.
PMVMOUNTCORN
Parts Inventory
A
B
C
A
- Wall Bracket Main Assembly x1
B
- Tilting Screen Fixing Uprights x2
C
- Wall Plate Trims x4
TV Fixing Kit
A - M6 x 30mm
X4
B - M8 x 30mm
C - M8 x 50mm
X4
D - M8 x 20mm
X4
E - M6
F - M8
G - M8 x 6.5mm
X4
H - M6 x 6.5mm
I - M8 x 6mm
X4
J - M8 x 12.5mm
X2
K - M6 x 20mm
Read these instructions carefully before installing your equipment.
Ÿ
Install the wall bracket in a suitable location using fixings which are appropriate for
Ÿ
.co.uk
the wall material and structure. Consult a qualified builder if you're in any doubt as
to the structural integrity of the wall.
Do not attempt to alter or modify any part of the wall mount or its attachments.
Ÿ
Do not use if any parts are broken or appear to be damaged.
Ÿ
Tighten all bolts and fixings securely. Only use fixings provided with this bracket.
Ÿ
Do not mount your TV close to sources or heat or moisture.
Ÿ
Factory No.
Always have a minimum of two persons to install the wall bracket and TV.
Ÿ
Z0883CB
1
Mounting Bracket To The Wall
Wall Mounting Tips:
To determine lengths and positions of arms it is advised to lay the bracket out on the
floor below the mounting area and measure where the bracket needs to be to
accomodate the TV in the corner. Measure the length of the TV across the bracket
and make sure the TV will fit into the corner when mounted. Adjust the length of the
arms to suit and lock them off before mounting.
NEVER UNLOCK THE ARMS WITH THE TV ATTACHED! ALWAYS REMOVE THE
TV BEFORE ADJUSTING THE LENGTH OF THE ARMS!
For ease of installation mount bracket on wall using position 1 (shown in 'a' right) and
mark other positions using a spirit level. Then remove fixing from position 1, remove
bracket and drill other positions
Use Fixings suitable for your type of wall construction. These are not included.
Use All 12 available fixing points.
If in any doubt of the suitability of the wall, it's construction or what type of fixings to
use, consult a qualified builder or installer.
2
Adjusting Arm Length And Position
a
Unlock
Unlock
1
Position
1
Lock
Lock
