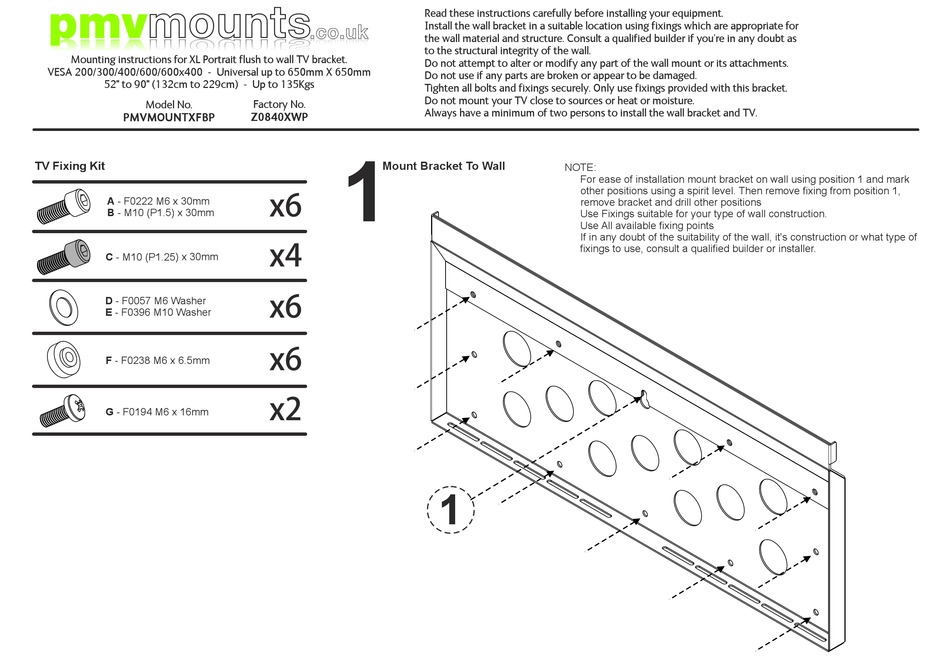

pmvmounts PMVMOUNTXFBP Mounting Instructions

pmvmounts
Mounting instructions for XL Portrait flush to wall TV bracket.
VESA 200/300/400/600/600x400 - Universal up to 650mm X 650mm
52" to 90" (132cm to 229cm) - Up to 135Kgs
Model No.
PMVMOUNTXFBP
TV Fixing Kit TV Fixing Kit
A - F0222 M6 x 30mm
B - M10 (P1.5) x 30mm
C - M10 (P1.25) x 30mm
D - F0057 M6 Washer
E - F0396 M10 Washer
F - F0238 M6 x 6.5mm
G - F0194 M6 x 16mm
Read these instructions carefully before installing your equipment.
Ÿ
Install the wall bracket in a suitable location using fixings which are appropriate for
Ÿ
.co.uk
the wall material and structure. Consult a qualified builder if you're in any doubt as
to the structural integrity of the wall.
Do not attempt to alter or modify any part of the wall mount or its attachments.
Ÿ
Do not use if any parts are broken or appear to be damaged.
Ÿ
Tighten all bolts and fixings securely. Only use fixings provided with this bracket.
Ÿ
Do not mount your TV close to sources or heat or moisture.
Ÿ
Factory No.
Always have a minimum of two persons to install the wall bracket and TV.
Ÿ
Z0840XWP
1
Mount Bracket To Wall
x6
x4
x6
x6
x2
NOTE:
Ÿ For ease of installation mount bracket on wall using position 1 and mark
other positions using a spirit level. Then remove fixing from position 1,
remove bracket and drill other positions
Use Fixings suitable for your type of wall construction.
Ÿ
Use All available fixing points
Ÿ
Ÿ If in any doubt of the suitability of the wall, it's construction or what type of
fixings to use, consult a qualified builder or installer.
1
