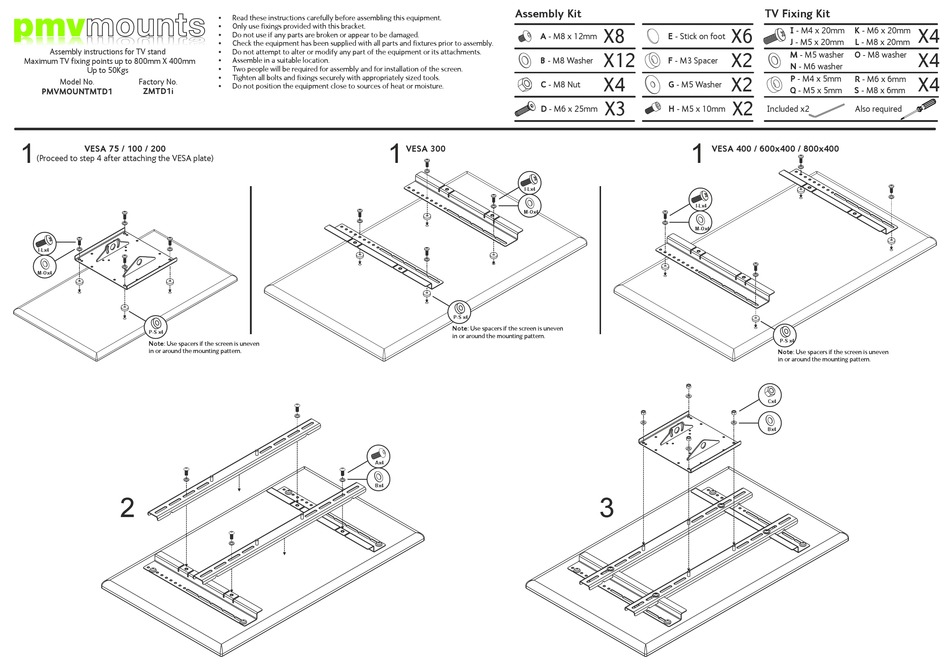

pmvmounts PMVMOUNTMTD1 Assembly Instructions

pmvmounts

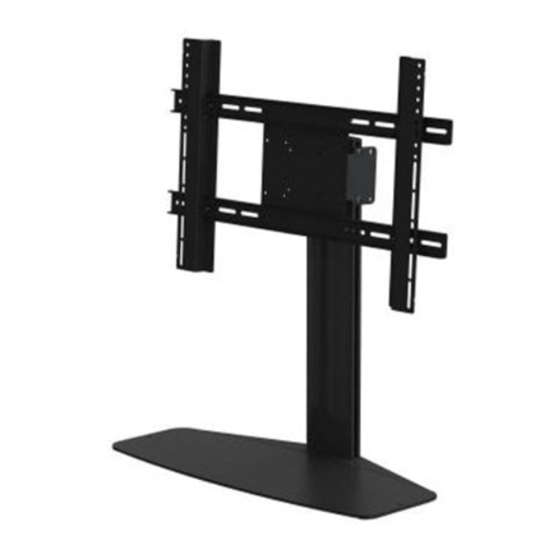

Assembly instructions for TV stand

Maximum TV fixing points up to 800mm X 400mm
Up to 50Kgs
Model No. Factory No.
ZMTD1i
PMVMOUNTMTD1
1
VESA 75 / 100 / 200
(Proceed to step 4 after attaching the VESA plate)
I-Lx4
M-Ox4
P-S x4
Note: Use spacers if the screen is uneven
in or around the mounting pattern.
2
Read these instructions carefully before assembling this equipment.

Only use fixings provided with this bracket.

Do not use if any parts are broken or appear to be damaged.

 Check the equipment has been supplied with all parts and fixtures prior to assembly.
Do not attempt to alter or modify any part of the equipment or its attachments.

 Assemble in a suitable location.
Two people will be required for assembly and for installation of the screen.

 Tighten all bolts and fixings securely with appropriately sized tools.
Do not position the equipment close to sources of heat or moisture.

1
Ax4
Bx4

Assembly Kit

A - M8 x 12mm
B - M8 Washer
C - M8 Nut
D - M6 x 25mm
VESA 300
I-Lx4
M-Ox4
P-S x4
Note: Use spacers if the screen is uneven
in or around the mounting pattern.

TV Fixing Kit

X8 X6
E - Stick on foot
X12 X2
F - M3 Spacer
X4 X2
G - M5 Washer
X3 X2
H - M5 x 10mm Included x2
1
VESA 400 / 600x400 / 800x400
I-Lx4
M-Ox4
Note: Use spacers if the screen is uneven
in or around the mounting pattern.
Cx4
Bx4
3
I - M4 x 20mm K - M6 x 20mm
X4
J - M5 x 20mm L - M8 x 20mm
M - M5 washer O - M8 washer
X4
N - M6 washer
P - M4 x 5mm R - M6 x 6mm
X4
Q - M5 x 5mm S - M8 x 6mm
Also required
P-S x4
