Instructions for Projector Trolley
Model No. PMVTROLLEYPROJ
Factory No. PMVTROLLEYPROJ

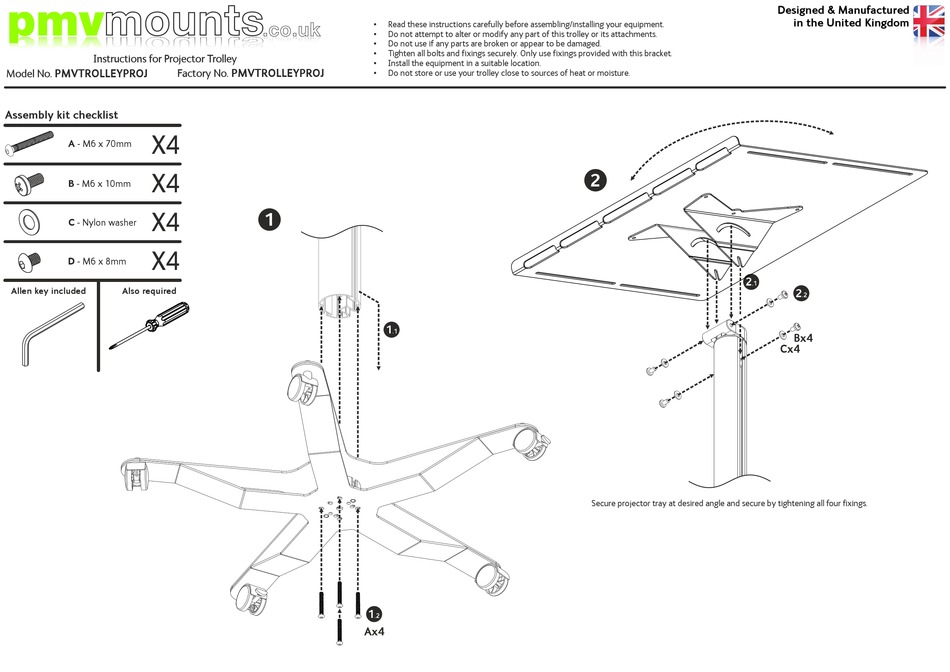

Assembly kit checklist
X4
A - M6 x 70mm
X4
B - M6 x 10mm
X4
C - Nylon washer
X4
D - M6 x 8mm
Allen key included
Also required
Read these instructions carefully before assembling/installing your equipment.
.co.uk
Do not attempt to alter or modify any part of this trolley or its attachments.
Do not use if any parts are broken or appear to be damaged.
Tighten all bolts and fixings securely. Only use fixings provided with this bracket.
Install the equipment in a suitable location.
Do not store or use your trolley close to sources of heat or moisture.
1
1
.1
1
.2
Ax4
2
2
.1
Secure projector tray at desired angle and secure by tightening all four fixings.
Designed & Manufactured
in the United Kingdom
2
.2
Bx4
Cx4
