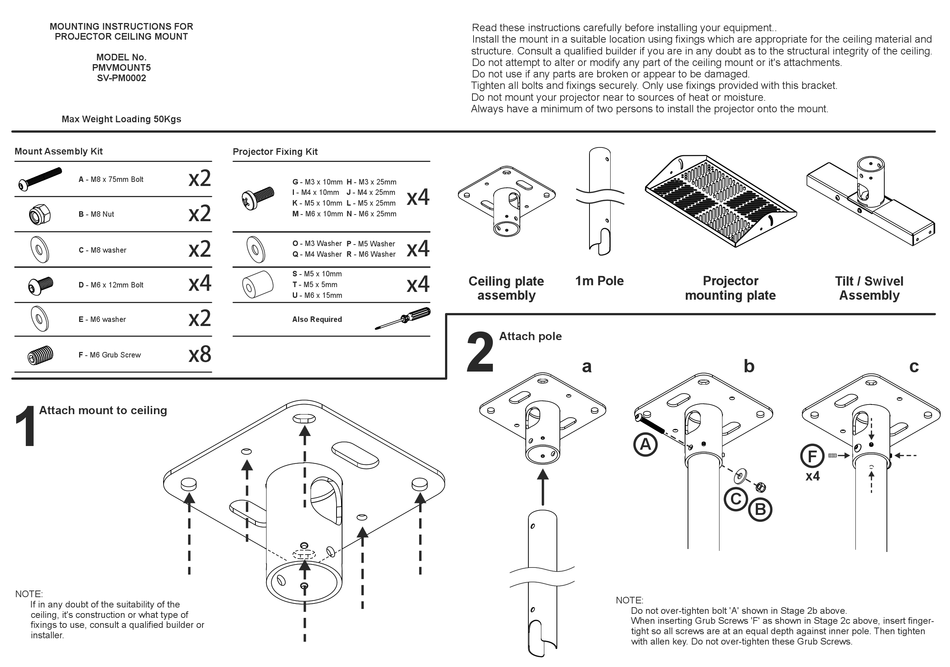

MOUNTING INSTRUCTIONS FOR
PROJECTOR CEILING MOUNT
MODEL No.
PMVMOUNT5
SV-PM0002
Max Weight Loading 50Kgs
Mount Assembly Kit
x2
A - M8 x 75mm Bolt
x2
B - M8 Nut
x2
C - M8 washer
x4
D - M6 x 12mm Bolt
x2
E - M6 washer
x8
F - M6 Grub Screw
1
Attach mount to ceiling
NOTE:
If in any doubt of the suitability of the
Ÿ
ceiling, it's construction or what type of
fixings to use, consult a qualified builder or
installer.
Projector Fixing Kit
G - M3 x 10mm
H - M3 x 25mm
x4
I - M4 x 10mm
J - M4 x 25mm
K - M5 x 10mm
L - M5 x 25mm
M - M6 x 10mm
N - M6 x 25mm
x4
O - M3 Washer
P - M5 Washer
Q - M4 Washer
R - M6 Washer
S - M5 x 10mm
x4
T - M5 x 5mm
U - M6 x 15mm
Also Required
Read these instructions carefully before installing your equipment..
Ÿ
Install the mount in a suitable location using fixings which are appropriate for the ceiling material and
Ÿ
structure. Consult a qualified builder if you are in any doubt as to the structural integrity of the ceiling.
Do not attempt to alter or modify any part of the ceiling mount or it's attachments.
Ÿ
Ÿ
Do not use if any parts are broken or appear to be damaged.
Tighten all bolts and fixings securely. Only use fixings provided with this bracket.
Ÿ
Ÿ
Do not mount your projector near to sources of heat or moisture.
Always have a minimum of two persons to install the projector onto the mount.
Ÿ
Ceiling plate
1m Pole
assembly
2
Attach pole
a
NOTE:
Do not over-tighten bolt 'A' shown in Stage 2b above.
Ÿ
When inserting Grub Screws 'F' as shown in Stage 2c above, insert finger-
Ÿ
tight so all screws are at an equal depth against inner pole. Then tighten
with allen key. Do not over-tighten these Grub Screws.
Projector
mounting plate
b
A
F
x4
C
B
Tilt / Swivel
Assembly
c
Advertisement
Related Manuals for pmvmounts PMVMOUNT5
Summary of Contents for pmvmounts PMVMOUNT5
- Page 1 Consult a qualified builder if you are in any doubt as to the structural integrity of the ceiling. MODEL No. Do not attempt to alter or modify any part of the ceiling mount or it's attachments. Ÿ PMVMOUNT5 Ÿ Do not use if any parts are broken or appear to be damaged. SV-PM0002 Tighten all bolts and fixings securely.
- Page 2 Attach projector to Attach projector Attach projector Mounting plate Mount tilt assembly Assembly to pole Note: Follow notes as in Stage 2. See Note! NOTE: To locate fixing points on projector, consult the projector user manual. Attach all parts loosely and then position the plate so it is central to the projector.
- Page 3 Fine adjustment of Shortening main level and position pole To adjust the forwards/backwards tilt of the projector loosen bolts 'a' and 'b' on both sides of mount. Re-position projector to desired position and then re-tighten bolts 'a' and 'b on both sides of mount'.
