pmvmounts

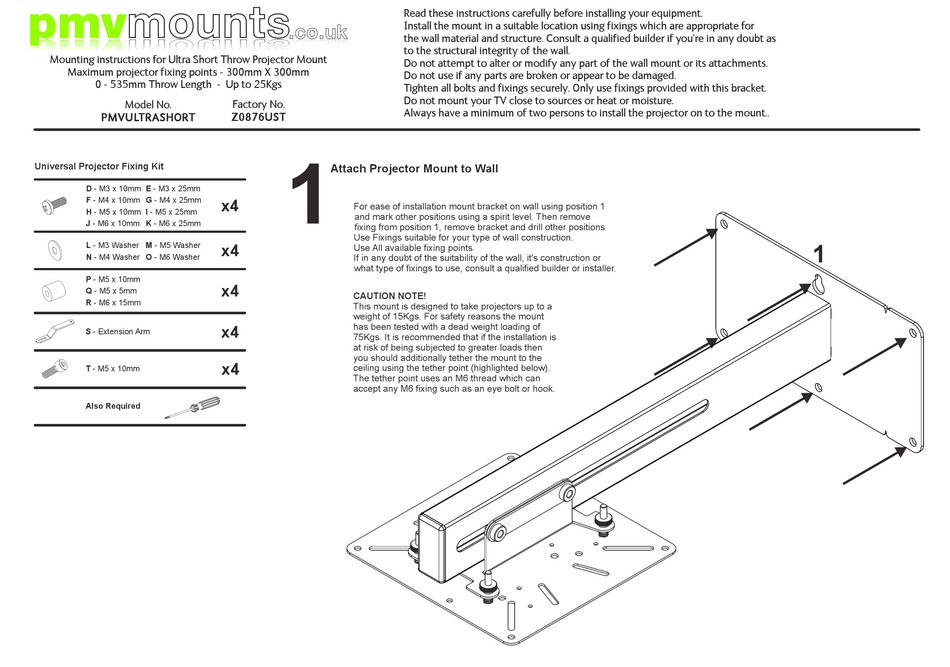

Mounting instructions for Ultra Short Throw Projector Mount
Maximum projector fixing points - 300mm X 300mm
0 - 535mm Throw Length - Up to 25Kgs
Model No.
PMVULTRASHORT
Universal Projector Fixing Kit
D - M3 x 10mm
E - M3 x 25mm
F - M4 x 10mm
G - M4 x 25mm
H - M5 x 10mm
I - M5 x 25mm
J - M6 x 10mm
K - M6 x 25mm
L - M3 Washer
M - M5 Washer
N - M4 Washer
O - M6 Washer
P - M5 x 10mm
Q - M5 x 5mm
R - M6 x 15mm
S - Extension Arm
T - M5 x 10mm
Also Required
Ÿ
Ÿ
.co.uk
Ÿ
Ÿ
Ÿ
Ÿ
Factory No.
Ÿ
Z0876UST
1
Attach Projector Mount to Wall
x4
For ease of installation mount bracket on wall using position 1
and mark other positions using a spirit level. Then remove
fixing from position 1, remove bracket and drill other positions
Use Fixings suitable for your type of wall construction.
x4
Use All available fixing points.
If in any doubt of the suitability of the wall, it's construction or
what type of fixings to use, consult a qualified builder or installer.
x4
CAUTION NOTE!
This mount is designed to take projectors up to a
weight of 15Kgs. For safety reasons the mount
has been tested with a dead weight loading of
x4
75Kgs. It is recommended that if the installation is
at risk of being subjected to greater loads then
you should additionally tether the mount to the
x4
ceiling using the tether point (highlighted below).
The tether point uses an M6 thread which can
accept any M6 fixing such as an eye bolt or hook.
Read these instructions carefully before installing your equipment.
Install the mount in a suitable location using fixings which are appropriate for
the wall material and structure. Consult a qualified builder if you're in any doubt as
to the structural integrity of the wall.
Do not attempt to alter or modify any part of the wall mount or its attachments.
Do not use if any parts are broken or appear to be damaged.
Tighten all bolts and fixings securely. Only use fixings provided with this bracket.
Do not mount your TV close to sources or heat or moisture.
Always have a minimum of two persons to install the projector on to the mount..
1
Advertisement
Related Manuals for pmvmounts PMVULTRASHORT
Summary of Contents for pmvmounts PMVULTRASHORT
- Page 1 Ÿ Model No. Factory No. Always have a minimum of two persons to install the projector on to the mount.. Ÿ PMVULTRASHORT Z0876UST Universal Projector Fixing Kit Attach Projector Mount to Wall D - M3 x 10mm E - M3 x 25mm...
- Page 2 Adjust Length of Mount Fine Adjust Position To fine tune the length and tilt of the mount, loosen bolts, slide mount to required position and re-tighten bolts. To fine tune the level of the projector use the four adjustment thumb wheels on the spring loaded cradle. Do not fully unwind the thumb wheels.
