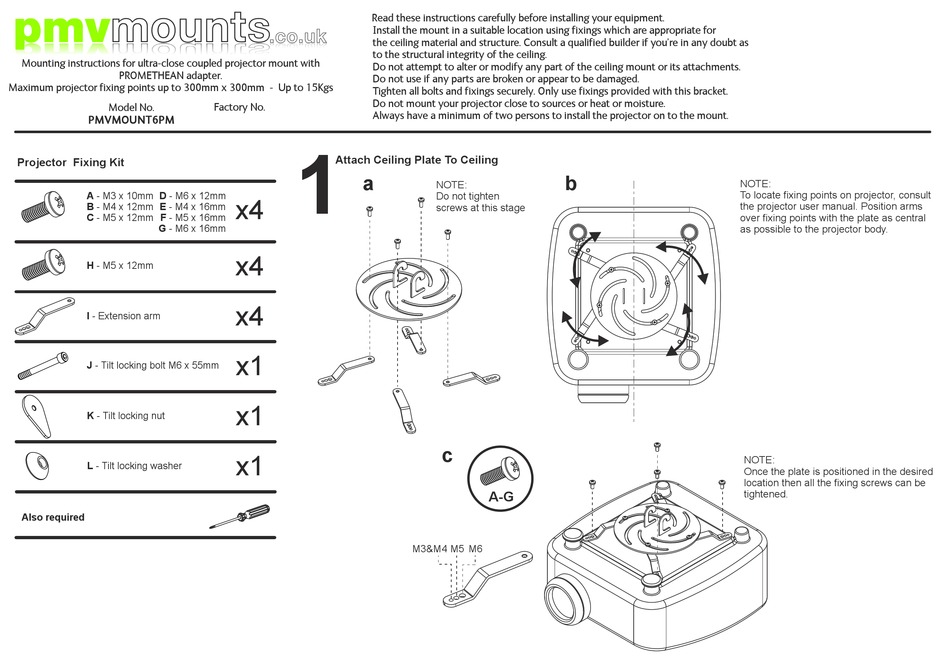

pmvmounts PMVMOUNT6PM Mounting Instructions

pmvmounts
Mounting instructions for ultra-close coupled projector mount with
PROMETHEAN adapter.
Maximum projector fixing points up to 300mm x 300mm - Up to 15Kgs
Model No.
PMVMOUNT6PM
Projector Fixing Kit
A - M3 x 10mm D - M6 x 12mm
B - M4 x 12mm E - M4 x 16mm
C - M5 x 12mm F - M5 x 16mm
G - M6 x 16mm
H - M5 x 12mm
I - Extension arm
J - Tilt locking bolt M6 x 55mm
K - Tilt locking nut
L - Tilt locking washer
Also required
Read these instructions carefully before installing your equipment.
Ÿ
Install the mount in a suitable location using fixings which are appropriate for
Ÿ
.co.uk
the ceiling material and structure. Consult a qualified builder if you're in any doubt as
to the structural integrity of the ceiling.
Do not attempt to alter or modify any part of the ceiling mount or its attachments.
Ÿ
Do not use if any parts are broken or appear to be damaged.
Ÿ
Tighten all bolts and fixings securely. Only use fixings provided with this bracket.
Ÿ
Do not mount your projector close to sources or heat or moisture.
Ÿ
Factory No.
Always have a minimum of two persons to install the projector on to the mount.
Ÿ
1
Attach Ceiling Plate To Ceiling
a
x4
x4
x4
x1
x1
x1
b
NOTE:
Do not tighten
screws at this stage
c
A-G
M3&M4 M5 M6
NOTE:
To locate fixing points on projector, consult
the projector user manual. Position arms
over fixing points with the plate as central
as possible to the projector body.
NOTE:
Once the plate is positioned in the desired
location then all the fixing screws can be
tightened.
