- Page 1 ® Solid Air ® Solid Air Brandkleppen manual Brandkleppen manual WH25 WH45 WK25 WK45 Postbus 22756 1100 DG Amsterdam Z.O. Tel.: +31 (0)20 696 69 95 Fax: +31 (0) 20 691 30 62 mail@solid-air.nl www.solid-air.nl...
- Page 2 MAINTENANCE AND USE MANUAL WH45 Circular fire damper with low pressure drop 500 Pa Brandkleppen manual WH25 WH45 WK25 WK45 1MLWH45R0G ® Solid Air Luchtverdeeltechniek BV Telefoon (020) 696 69 95 Fax (020) 691 30 62 www.solid-air.nl Brandkleppen manual 06 2013...
-
Page 3: Product Presentation

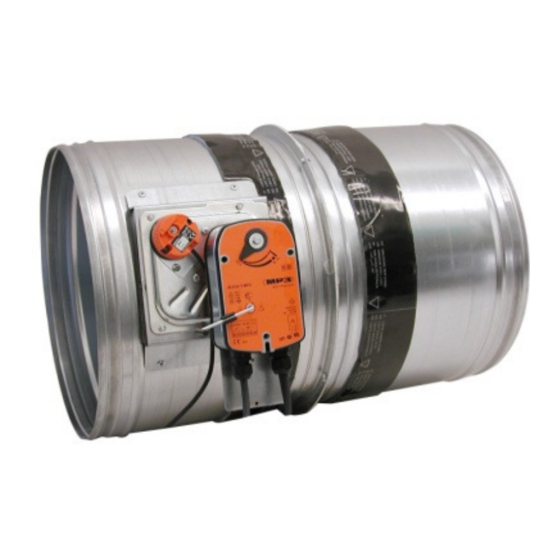

® Solid Air 1. PRODUCT PRESENTATION The WH45 circular fire dampers are installed in ventilation ducts inside walls to stop a fire from spreading. They have a mechanism entirely outside the walls. The duct is built in galvanised steel. The fire damper can be fitted with a simple thermal fuse, or a remote controlled automatic mechanism. - Page 4 ® Solid Air FIRE RESISTANCE IN COMPLIANCE WITH EN 13501-3: 2005 (500 Pa) MECHANICAL FIRE INSTALLATION MATERIAL DIMENSIONS CLASSIFICATION ORIENTATION DIRECTION Aerated concrete Horizontal or vertical EI 120 S Ø 200 to Ø 800 Indifferent Thickness ≥ 100 mm blade axis Density ≥...
-
Page 5: Handling And Storage
® Solid Air Certificates: N° 1812 – CPD - 1007 5. HANDLING AND STORAGE Since this is safety equipment, the fire damper needs to be stored, handled and installed with care. Attention: • Avoid contact with water and exposure to excessive dampness. - Page 6 ® Solid Air HOLES, INSTALLATIONS AND SEALING: Attention: Make sure the damper and duct are correctly aligned. The WH45 fire damper does not have a specific air passage direction. Diameter dimensions indicated below refer to the nominal fire damper diameter dimension.
- Page 7 ® Solid Air Brandkleppen manual WH25 WH45 WK25 WK45 ® Solid Air Luchtverdeeltechniek BV Telefoon (020) 696 69 95 Fax (020) 691 30 62 www.solid-air.nl Brandkleppen manual 06 2013...
- Page 9 ® Solid Air 7. CONTROL MECHANISMS: WARNING! Do not load and unhook the control mechanism if disassembled from the fire damper. This is dangerous for the user and implies mechanism breaking. WH45 MANUAL VERSION B / M: • 70°C thermal fuse.
- Page 10 ® Solid Air WH45 MOTORIZED VERSION V / D: Siemens servo-driven model Note: To manually open the damper use the provided key to rotate clockwise until the For the motorized version micro switch is standard. indicator reaches a value of 90° and with a screw driver rotate the screw shown in the figure anti-clockwise.
-
Page 11: Electrical Connections
® Solid Air 9. ELECTRICAL CONNECTIONS WARNING: Electrical connection of the damper to the mains must only be done by a qualified electrician. MOTOR WIRING MAGNET WIRING Brandkleppen manual WH25 WH45 WK25 WK45 1MLWH45R0G ® Solid Air Luchtverdeeltechniek BV ®... -
Page 12: Electrical Specifications
® Solid Air 10. ELECTRICAL SPECIFICATIONS WH45 B WH45 M and WH45 V / D Rated Voltage Magnet (WH45 M): Power supply 24 V DC interruption Power supply 24 V DC input Power Supply magnet: P = 4,5 W magnet: P = 4,5 W... - Page 13 12. EC declaration of conformity 1MLWH45R0G...
