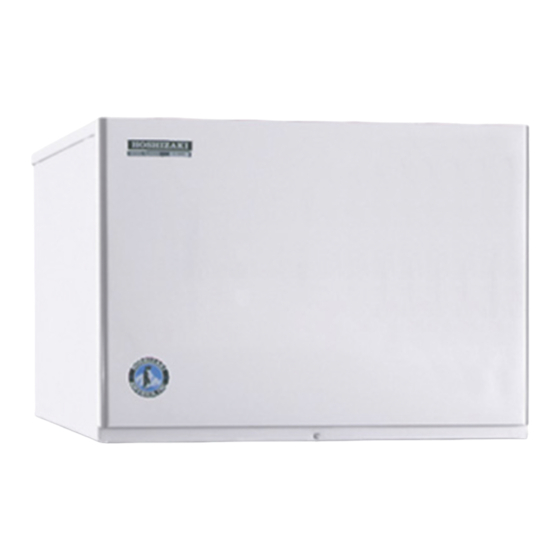

Hoshizaki KML-351MAH Instruction Manual

Low-profile modular crescent cuber
Hide thumbs Also See for KML-351MAH:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
Hoshizaki
Hoshizaki America, Inc.
"A Superior Degree
of Reliability"
www.hoshizaki.com
Low-Profile Modular Crescent Cuber
Models
KML-351MAH
KML-351MWH
INSTRUCTION MANUAL
™
Issued: 7-11-2006
Revised: 4-9-2008

Advertisement

Table of Contents
loading

Related Manuals for Hoshizaki KML-351MAH

Summary of Contents for Hoshizaki KML-351MAH

  • Page 1 Hoshizaki America, Inc. “A Superior Degree of Reliability” www.hoshizaki.com Low-Profile Modular Crescent Cuber Models KML-351MAH KML-351MWH INSTRUCTION MANUAL ™ Issued: 7-11-2006 Revised: 4-9-2008...
  • Page 2 Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, write or send an e-mail message to the HOSHIZAKI Technical Support Department for assistance. HOSHIZAKI AMERICA, INC.

  • Page 3: Table Of Contents

    • Keep this manual with the icemaker for future reference. I. Specifications ... 4 A. Nameplate Rating ... 4 1. KML-351MAH (air-cooled) ... 4 . KML-351MWH (water-cooled) ... 5 B. Dimensions/Connections ... 6 1. KML-351MAH ... 6 .

  • Page 4: Specifications

    I. Specifications A. Nameplate Rating 1. KML-351MAH (air-cooled) HOSHIZAKI ICE MAKER MODEL NUMBER SERIAL NUMBER AC SUPPLY VOLTAGE COMPRESSOR PUMP OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER(USA ONLY) MAX. CIRC BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY DESIGN PRESSURE REFRIGERANT MOTOR-COMPRESSOR THERMALLY PROTECTED,...

  • Page 5: Kml-351Mwh (Water-Cooled)

    2. KML-351MWH (water-cooled) HOSHIZAKI ICE MAKER MODEL NUMBER SERIAL NUMBER AC SUPPLY VOLTAGE COMPRESSOR PUMP OTHER MAXIMUM FUSE SIZE MAX. HACR BREAKER(USA ONLY) MAX. CIRC BREAKER (CANADA ONLY) MINIMUM CIRCUIT AMPACITY DESIGN PRESSURE REFRIGERANT MOTOR-COMPRESSOR THERMALLY PROTECTED, ICE MAKER WITHOUT STORAGE MEANS See the nameplate for electrical and refrigeration specifications.

  • Page 6: Dimensions/Connections

    B. Dimensions/Connections 1. KML-351MAH...

  • Page 7: Kml-351Mwh

    2. KML-351MWH...

  • Page 8: Installation And Operating Instructions

    6) See the nameplate on the rear panel, and check that your voltage supplied corresponds with the voltage specified on the nameplate. 7) This icemaker needs a storage bin. The recommended storage bin is HOSHIZAKI ICE STORAGE BIN, Model B-500 series, DB-00, or DM-180 series.

  • Page 9: Location

    C. Location This icemaker is not intended for outdoor use. Normal operating ambient temperature should be within +45°F to +100°F (+7°C to +38°C); Normal operating water temperature should be within +45°F to +90°F (+7°C to +3°C). Operation of the icemaker, for extended periods, outside of these normal temperature ranges may affect production capacity.

  • Page 10: Electrical Connection

    E. Electrical Connection 1. Electrical connection must be made in accordance with the instructions on the WARNING tag, provided with the pig tail leads in the junction box. . This icemaker requires a ground that meets the national and local electrical code requirements.

  • Page 11: Water Supply And Drain Connections

    F. Water Supply and Drain Connections See Fig. 4 Do not operate the icemaker when the water supply is OFF, or if the pressure is below 10 PSIG (0.7 bar). Do not run the icemaker until the proper water pressure is reached. •...
  • Page 12 KML-351MAH KML-351MWH Fig. 4...

  • Page 13: Final Checklist

    G. Final Checklist 1) Is the icemaker level? ) Is the icemaker in a site where the ambient temperature is within +45°F to +100°F (+7°C to +38°C) and the water temperature within +45°F to +90°F (+7°C to +3°C) all year around? 3) Is there at least 6"...

  • Page 14: Startup

    H. Startup 1. All parts are factory-adjusted. Improper adjustments may result in failure. . If the unit is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the compressor. 3. Do not operate the unit in the "WASH" position without water in the water tank.

  • Page 15: Cleaning And Maintenance Instructions

    1. Cleaning Procedure 1) Dilute approximately 10.5 fl. oz. of recommended cleaner Hoshizaki "Scale Away" or "LIME-A-WAY," (Economics Laboratory, Inc.) with  gal. of water. ) Remove all ice from the evaporator and the storage bin.

  • Page 16: Sanitizing Procedure

    14) Remove the front panel. 15) Move the service switch to the "DRAIN" position. 16) Replace the front panel and turn on the power supply for  minutes. 17) Turn off the power supply and remove the front panel. 18) Move the control switch to the "ICE" position. 19) Replace the front panel in its correct position.

  • Page 17: Maintenance

    10) Replace the front panel and turn on the power supply for  minutes. 11) Turn off the power supply. 1) Remove the front panel. 13) Repeat the above steps 18) through 31) in "1. Cleaning Procedure" two times to rinse thoroughly.

  • Page 18: Preparing The Icemaker For Long Storage

    C. Preparing the Icemaker for Long Storage When shutting off the icemaker for an extended time, drain out all water from the water line and remove the ice from the storage bin. The storage bin should be cleaned and dried. Drain the icemaker to prevent damage to the water supply line at sub-freezing temperatures, using air or carbon dioxide.
  • Page 19 3. Drain the potable water tank: 1) Turn off the power supply. ) Remove the front panel. 3) Move the control switch to the "SERVICE" position and move the service switch to the "DRAIN" position. 4) Replace the front panel and turn on the power supply for  minutes. 5) Turn off the power supply.
  • Page 20 HOSHIZAKI AMERICA, INC. 618 Hwy. 74 S., Peachtree City, GA 30269 USA TEL (770) 487-2331 FAX (770) 487-3360 www.hoshizaki.com 91A1CJ10C...
