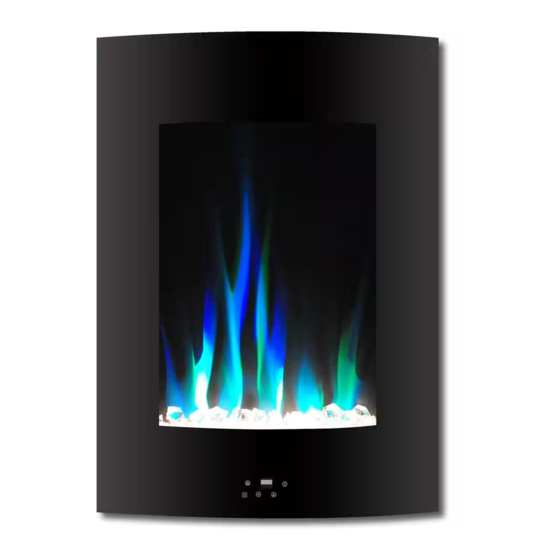

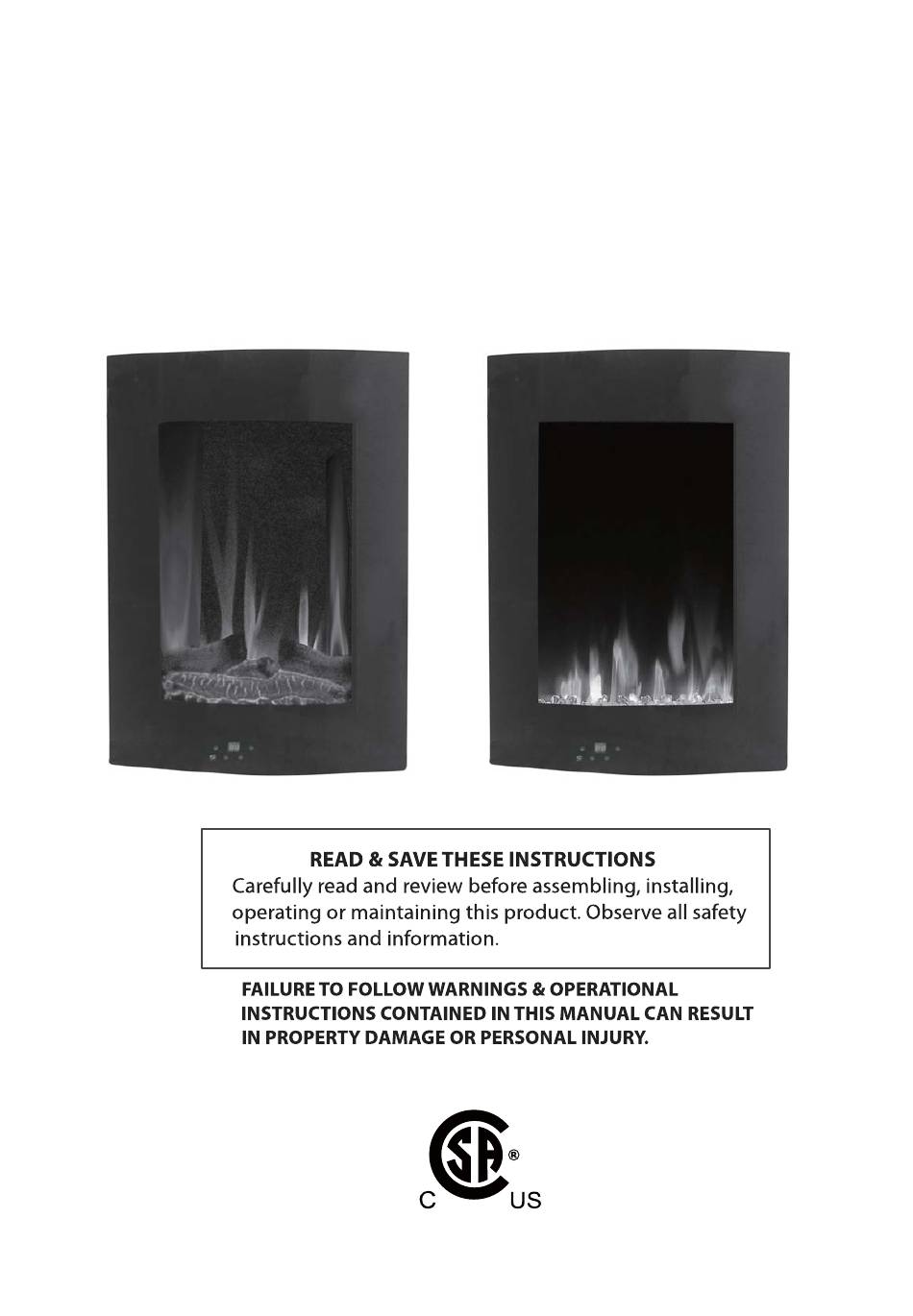

- Page 1 Installation and Operation Instructions ELECTRIC FIREPLACE X19VWMEF1BLK X19VWMEF1WHT REV19-01...
-
Page 2: Table Of Contents
Tool list Assembly Instructions Important Safety Instructions Listing Approvals Glass Particles Installation Instructions Product Dimensions 9-10 Installation Operating Instructions Remote Control Instructions Temperature Limiting Control Trouble Shooting Cleaning... -
Page 3: Tool List
Remove the glass pane, then replace the faux fire Phillips Screwdriver log set with glass particles. Tool List: drill bit, drill, tape measure and pencil X19VWMEF1BLK X19VWMEF1WHT Remote Control Electric Wall-Mount Fireplace Assembly Instructions Quick Reference Guide 1. Prior to plugging your heater into a convenient outlet, first verify that the circuit... -
Page 4: Important Safety Instructions
2. The heater may emit a slight, harmless odour when first used. This odour is normal and it is caused by the initial heating of internal heater parts and will not occur again. 3. If the heater does not emit heat, Consult your User’s Guide for further information. - Page 5 heater is in operation it must be left unattended. 5. Always unplug the heater when not in use. 6. Do not operate any heater with damaged cord or plug or after the heater has malfunctioned or has been dropped or damaged in any manner. Return heater to an authorised service facility for repair. 7.
-
Page 6: Listing Approvals
LISTING APPROVALS This heater has been tested in accordance with the CSA Standards. X19VWMEF1BLK Model Number: X19VWMEF1WHT Description: Wall Mount Electric Fireplace Voltage: 120V AC, 60Hz Watts: MAX 1300W Length: 19.4 26.8 Height: Depth:... -
Page 7: Glass Particles Installation Instructions
GLASS PARTICLES INSTALLATION INSTRUCTIONS 1.To remove the outer glass around the bracket, undo the mounting screws (red arrows)（①、②） 2.Remove the outer glass (③) 3.Carefully take out the log set, adjust the screws (red arrows) ( ④、⑤) 4.Gently put the glass crystals into place (⑥、⑦) 5.Be cautious about the outer glass bracket screws（⑧）... -
Page 8: Product Dimensions
PRODUCT DIMENSIONS 19.4"... - Page 9 Mounting Bar BACK VIEW PRODUCT DIMENSIONS WARNING: Due to high temperatures, this electric fireplace should be located out of traffic. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 36" from the top of the heater. WARNING: Never locate this electric fireplace where it may fall into a bathtub or other water container.
-
Page 10: Installation
UNPACKING AND TESTING FIREPLACE Carefully remove the unit from the box. Prior to installing the unit, test to make sure the unit operates properly. To do this, plug the unit's power supply cord into a conveniently located 120 Volt grounded outlet. INSTALLATION WARNING: RISK OF FIRE! The power cord must not be pinched or against a sharp edge. - Page 11 INSTALLATION Model 1: screws Front view of wall back view of fireplace 1 Remove the glass panel first 2 Set the fire box into the wall 3 Secure the side trim pieces on the wall with screws 4 Reinstall the glass panel onto the firebox with screws.
-
Page 12: Operating Instructions
OPERATING INSTRUCTIONS DISPLAY Main Power Switch: The master switch controls the power supply to the appliance. Turn the switch to “ON” to connect power and turn the switch to “OFF” to cut the power. There will be a chiming sound when turning to “OFF”. 1.POWER ON/OFF Touch the button once (flame will light up) to turn power on for all functions, keep the last flame color once appliance off. -
Page 13: Remote Control Instructions
REMOTE CONTROL FEATURES 1. Install the CR2025 3V battery in the remote control. 2. Turn the master switch on the e-fireplace to ‘I’ so that it can receive the signal from the remote control. 3. Lock the colour for the flame using button 1. Lock the colour for the Log using button 2. -
Page 14: Temperature Limiting Control
TEMPERATURE LIMITING CONTROL This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature, (115 degrees Celsius) the heater will automatically turn off. To reset: Unplug unit from wall, wait for 5 minutes, plug back in and continue to use. TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSES...
