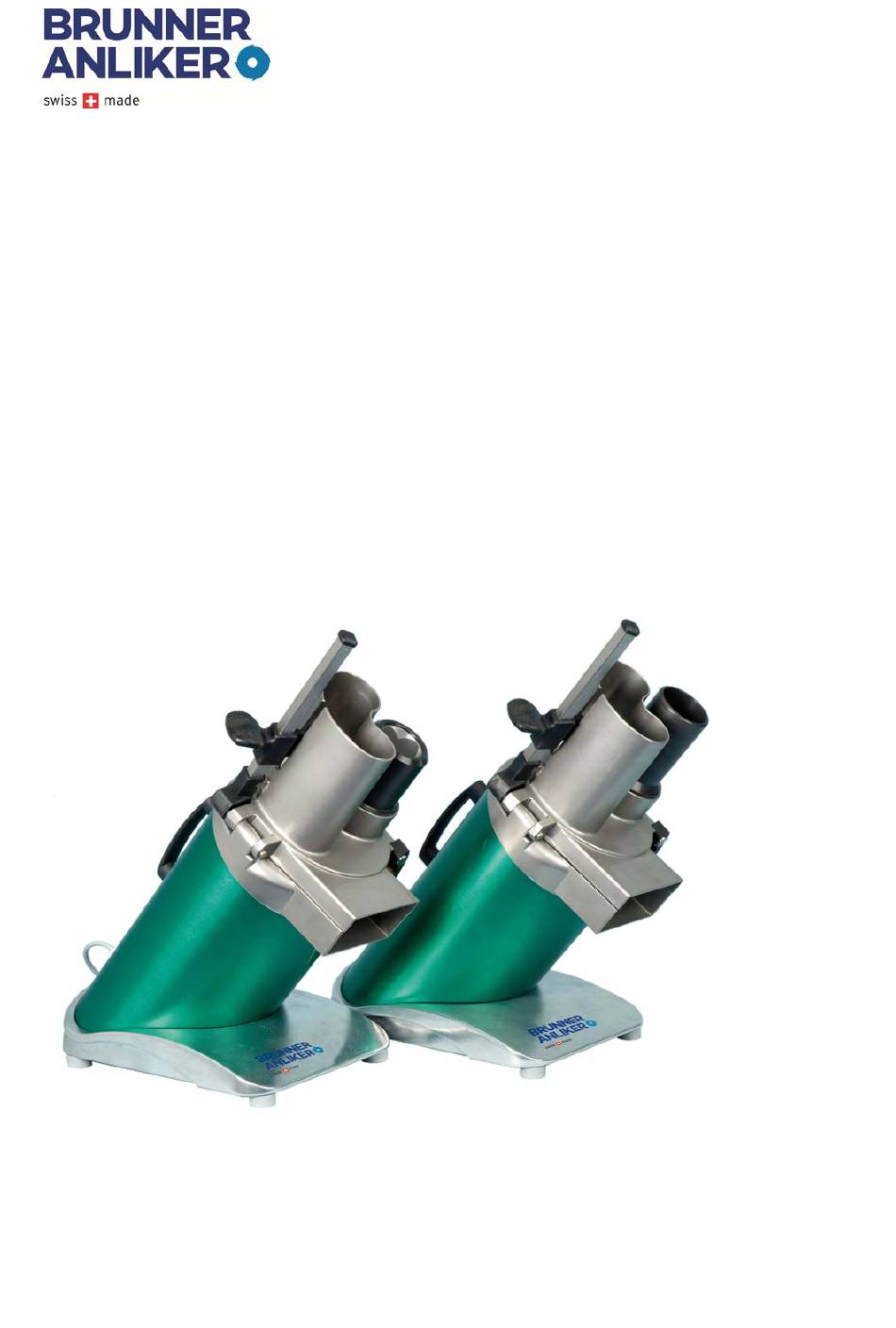

- Page 1 Operating Manual for the Vegetable Slicer GSM 5 GSM 5 Star Translation of the original instructions (German)
- Page 2 Qualified per- The GSM 5 vegetable slicer may only be commissioned and oper- sonnel ated by qualified personnel. Within the context of this operating manual and the safety information it contains, qualified personnel constitutes persons trained or instructed in the use of this system.
- Page 3 WARNING! The GSM 5 vegetable slicer may only be used for the applications described in the specifications and technical description and only in conjunction with spare parts recommended by Brunner-Anliker The product’s faultless and safe operation assumes proper transport, storage, set up and assembly as well as careful opera- tion and maintenance.
- Page 4 Scope of this This operating manual applies for the GSM 5 and GSM 5 Star Vegetable Slicer. operating man- NOTE! Functional modifications to the GSM 5 Vegetable Slicer will invalidate any en- titlement to warranty.
-
Page 5: Table Of Contents
Accessories ........................10 5. Transport and installation instructions ..................11 Delivery condition ......................11 Reporting damages ......................11 Weight of the GSM 5 Vegetable Slicer .................. 11 Delivery ..........................11 Unpacking ......................... 12 Transporting the machine ....................12 Assembly & Installation ...................... 12 Electrical / Electronic setup .................... - Page 6 11. Technical data ........................26 11.1 GSM 5 ..........................26 11.2 GSM 5 Star ........................26 11.3 Dimensional drawing GSM 5 ....................27 11.4 Dimensional drawing GSM5 Star..................28 11.5 EC Declaration of conformity ....................29 11.6 Additions .......................... 30 12.
- Page 7 Figure 1: System designation Figure 2: System designation 2 ........................9 Figure 3: Type plate ............................9 Figure 4: GSM 5 Star or GSM 5 Figure 5:Standard pusher and rotating pusher ..................... 10 Figure 6: Ejection plate and ejector Figure 7: Cutting discs Figure 8: Cubeing gridwith cube blade .....................
-
Page 8: Introduction
Brunner-Anliker AG machinery is of high quality. With its internal quality insurance measures, Brunner- Anliker AG ensures that the equipment leaves the plant in perfect condition. By purchasing the GSM 5 or GSM 5 Star Vegetable Slicer from Brunner-Anliker AG, you have decided on a sophisticated, technically superior product. -
Page 9: Designation Of The System Parts
Figure 1: System designation Figure 2: System designation 2 Table 1: System parts Item Item 1 Star feeding tube “GSM 5 Star” 9 Cutting compartment 2 Power cable with plug 10 Drive shaft 3 Vegetable slicer (basic unit) 11 Drive pin... -
Page 10: Delivery Scope
Apart from the machine itself, the delivery scope of the Vegetable Slicer includes the operating manual and accessories, depending on the individual order. Figure 4: Figure 5: GSM 5 Star or GSM 5 Standard pusher and rotating pusher Figure 6: Figure 7:... -
Page 11: Transport And Installation Instructions
Reporting damages If any damage to the GSM 5 Vegetable Slicer is noted as a result of deficient packaging or transportation, the haulage company, the insurance company and the dispatching factory must be notified immediately. For contact details, refer to page 23. -
Page 12: Unpacking
Unpacking Before using the Vegetable Slicer, please remove the polystyrene padding and any other packaging mate- rial (i.e. cable binders) for transport! NOTE! • Check the completeness of the delivery based on the enclosed delivery note (if the delivery is incomplete, please contact our customer service). •... -
Page 13: Electrical / Electronic Setup
Depending on the version, the machine is designed for the 115V 60Hz / 230V 50Hz / 230V 60Hz network. The machine can be connected to a normal, appropriately secured plug! It is imperative that you observe the following instructions for the electrical installation of the GSM 5 Vegetable Slicer: DANGER! •... -
Page 14: Commissioning
• Before starting any work, you must have read and understood the content and valid provisions regarding “Safety Measures” in the operating manual. 5.10 Storage In order to maintain the functionality of an unused GSM 5 Vegetable Slicer over a longer period of time, you need to observe several points: •... -
Page 15: Operation
6. Operation The possible uses of Brunner-Anliker’s GSM 5 Vegetable Slicer, the standard model, are already very diverse. With Brunner-Anliker’s GSM 5 Star however, you can expand the cutting types by Brunoises “BR”, Gaufrettes “PG” and the “Spaghetti cutter”. Observe the following points when inserting the cutting or grating discs: Correct insertion of cutting or grating discs How you can insert cutting or grating discs is described below. -
Page 16: Close The Hopper Head
ATTENTION! • The discs fit snugly onto the drive shaft. Never press them onto the drive shaft using force or any amount of exertion! 6.2.4 Close the hopper head Swivel the hopper head back into position and follow the additional steps on Page 18 for vegetable slicing. Issued: Tested: Revised:... -
Page 17: Cutting Inserts W (Cubes), Cutting Disc Brunoises Br, Gaufrettes Pg And Spaghetti Cutter
Cutting inserts W (cubes), cutting disc Brunoises BR, Gaufrettes PG and Spaghetti Cutter The so-called cutting inserts consist of at least 2 parts, while the 6.2.1 cubes “W” consist of a cubing-grid and cube blade The cube blades are marked on the upper surface. The cubing-grids con- sisting of black glass-fibre compound are marked underneath on the rim. -
Page 18: Brunoises "Br" And Gaufrettes "Pg
Brunoises “BR” and Gaufrettes “PG” Cutting of Brunoises “BR” and Gaufrettes “PG” is only possible with the GSM 5 Star model. The BR and PG blades are specially equipped with a tappet / pin, thus allowing the flower-shaped filling neck to rotate, which in turn leads to the respective vegetable cutting form. -
Page 19: Cutting Of Vegetables
Cutting of vegetables Place a suitable container under the outlet of the machine. Gastronorm containers with a height of 150 mm at 2/3 or 1/2 sizes are ideally suited to fit underneath the machine. 1. Remove the pusher plate from the kidney-shaped feed opening and swivel away to the left. 2. -
Page 20: System Maintenance "Cleaning Concept
7. System maintenance “Cleaning concept” Cleaning the GSM 5 Vegetable Slicer The GSM 5 Vegetable Slicer is manufactured from low-maintenance stainless steel and is therefore easy to clean. The hopper head can be removed completely for cleaning purposes. Hopper head, pusher and ejector can be cleaned and disinfected in the dishwasher. The cutting compart- ment of the basic unit can be cleaned with a damp cloth or with the brush provided. -
Page 21: Cleaning The Cubing-Grid
• Ensure that the machine is switched off at the On/Off button before starting with any maintenance work! • Disconnect from mains, if necessary! • The GSM 5 Vegetable Slicer may not be cleaned with a steam or water jet de- vice. • The use of aggressive cleaning agents is strictly prohibited. -
Page 22: Fault Removal
Fault removal The machine is basically very robust, so that faults are rare. The following instructions may help you nonetheless: First action to take for any faults: Switch off the machine! Pull the plug immediately should you detect any unpleasant odours. 8.2.1 Unit is not working: 1. -
Page 23: Br Cutting Blade - Only Results In Strips
8.2.5 BR cutting blade - only results in strips If the BR cutting blade only results in strips, ensure that the rotating filling neck and rotating pusher are in place. These steps cannot be performed in the larger, kidney-shaped feed opening. -
Page 24: Service And Information Address
Service and information address Please contact our Service for any undescribed problems or questions you may have. Address: Brunner-Anliker AG Brunnergässli 1-3 T: +41 44 804 21 00 8302 Kloten F: +41 44 804 21 90 Switzerland mail@brunner-anliker.com Further information on our website: brunner-anliker.com Issued: Tested:... -
Page 25: Spare Parts
Our Service Point (refer to Page 23) will provide any information not contained in this manual. 10. Transfer to Third Parties Brunner-Anliker AG is not liable in the event that the GSM 5 Vegetable Slicer is transferred to a third par- Issued:... -
Page 26: Technical Data
0.26 kW Weight 23.3 kg Protection class IP 26, wave water Dimensions (L x W x H) 250 x 315 x 540 Table 5: Technological Data GSM 5 Star Issued: Tested: Revised: Status: 300 Approved Page 26 of 33 Ralph Moretti... -
Page 27: Dimensional Drawing Gsm 5
11.3 Dimensional drawing GSM 5 : Dimensional drawing GSM 5 Figure 17 Issued: Tested: Revised: Status: 300 Approved Page 27 of 33 Ralph Moretti Michel Benkovics Ralph Moretti Document number: Index 10.07.2015 17.07.2015 20.01.2022 235.01518... -
Page 28: Dimensional Drawing Gsm5 Star
11.4 Dimensional drawing GSM5 Star Figure 18: Dimensional drawing GSM5 Star Issued: Tested: Revised: Status: 300 Approved Page 28 of 33 Ralph Moretti Michel Benkovics Ralph Moretti Document number: Index 10.07.2015 17.07.2015 20.01.2022 235.01518... -
Page 29: Ec Declaration Of Conformity
11.5 EC Declaration of conformity Figure 19: Declaration of Conformity Issued: Tested: Revised: Status: 300 Approved Page 29 of 33 Ralph Moretti Michel Benkovics Ralph Moretti Document number: Index 10.07.2015 17.07.2015 20.01.2022 235.01518... -
Page 30: Additions
11.6 Additions Figure 20: Directive 1935/2004 Issued: Tested: Revised: Status: 300 Approved Page 30 of 33 Ralph Moretti Michel Benkovics Ralph Moretti Document number: Index 10.07.2015 17.07.2015 20.01.2022 235.01518... -
Page 31: Figure 21: Directive 10/2011
Figure 21: Directive 10/2011 Issued: Tested: Revised: Status: 300 Approved Page 31 of 33 Ralph Moretti Michel Benkovics Ralph Moretti Document number: Index 10.07.2015 17.07.2015 20.01.2022 235.01518... -
Page 32: Figure 22: Weee 2012/19
Figure 22: WEEE 2012/19 Issued: Tested: Revised: Status: 300 Approved Page 32 of 33 Ralph Moretti Michel Benkovics Ralph Moretti Document number: Index 10.07.2015 17.07.2015 20.01.2022 235.01518... -
Page 33: Warranty
Page 23) or by the manufacturer’s factory itself. The warranty period for the GSM 5 Vegetable Slicer is 2 years and 5 years for the motor and drive. Parts subject to wear and tear are not covered by the warranty.
