USER MANUAL
MODEL: SX1718
12V TWO-SEATER JEEP
CONTACT US
Before returning your product, please contact us first! Voltz
Toys Customer Service can assist you with any replacement
parts, damages, or defective issues reported. You can con-
tact us directly at www.voltztoys.ca.
Email: help@voltztoys.ca
Phone number: 1-888-338-6589
Head Office: Unit 7-3600A Laird Rd, Mississauga, ON, L5L
6A6
COMPLIANCE STANDARDS:
SOR/2011-17
SOR/2018-138
SOR/2016-195
SOR/2016-302
SOR/2018-83
SOR/2016-188
SOR/2014-254
EN71
ASTM F963-17
CPSIA
ENGLISH
Advertisement
Table of Contents
Related Manuals for Daan Tech VOLTZ TOYS SX1718
Summary of Contents for Daan Tech VOLTZ TOYS SX1718
- Page 1 CONTACT US Before returning your product, please contact us first! Voltz Toys Customer Service can assist you with any replacement parts, damages, or defective issues reported. You can con- tact us directly at www.voltztoys.ca. A subdivision of The DAAN Groups Email: help@voltztoys.ca Phone number: 1-888-338-6589 Head Office: Unit 7-3600A Laird Rd, Mississauga, ON, L5L...
- Page 2 Please read the manual before using the product. The manual and carton contain important information. Please keep the manual for later references. Failure to follow the instructions in the manual may result in damages, accidents, or defective issues with the product. To improve the product and quality, we may alter the structure, ap- pearance, packing method, assembly method, and product function without any notice.
- Page 3 OPENABLE HOOD The hood contains the battery and other electrical components to function the toy. Unclip the hood latches to open up the hood. Use the provided sup- port rod to hold it open. Locate the (red) battery wire pairing, and connect securely.
- Page 4 FRONT BUMBER WITH SHOCK ABSORBER FUNCTION The front bumper includes a built-in spring. To ensure safety, this bumper feature minimizes injury when impact occurs. TROLLEY FUNCTION The handle located at the rear end of the car can be withdrawn to pull for mobility.
- Page 5 PARTS LIST...
- Page 6 PRODUCT SPECIFICATIONS...
-
Page 7: Table Of Contents
TABLE OF CONTENT • Axles Page 4-6 • Front Bumper Page 7 • Rear Bumper Page 8 • Top Holder Page 9 • Wheel Page 10 • Seat Page 11 • Steering Wheel Page 12 • Windshield and Mirror Page 12 •... -
Page 8: Axles
1. AXLES ASSEMBLY a. Front axle assembly Begin with the car in an upside down position. Insert the steering rod through the hole on the front axle. Secure the steering rod with a wash- er and cotter pin. Fix the front axle into the car body with screws on both sides. - Page 9 b. Rear axle assembly Parts Required: Springs, Rear Axle, Shock absorber, Rubber Plate, 12MM Screw*8 Springs Rear Axle & Tube Rubber Plate Shock Absorber In their designated slots underneath the car, install the spring and shock absorbers. Ensuring the rear motors are inserted, align and slide the rear axle rod through the motors, and across the holes on the shock absorbers.
-
Page 11: Front Bumper
2. FRONT BUMPER ASSEMBLY Parts Required: Front Bumper, 12MM Screws*6 In an upside down position, align the front bumper by inserting it into its corresponding slots. Apply firm pressure to secure. Fix with four screws on each side. Locate the included LED wire, and plug with the corresponding pair located nearby the front bumper. -
Page 12: Rear Bumper
3. REAR BUMPER ASSEMBLY Parts Required: Rear Bumper, Handle, 12MM Screws*4 Align the rear bumper with the car body. Locate the (5) slots to clip and lock the bumper with the car body. Fix with 4 screws. Install the handle by press- ing the 2 round pins, and inserting into its corresponding slot. -
Page 13: Top Holder
4. TOP HOLDER ASSEMBLY Parts Required: Top Holder A & B & C, Hex Bolt, Nut Bolt, 20MM Screws*4 Holder A Holder B Holder C Position Top Holder A and Top Holder B together to align their screw holes. Together with Top Holder A and B, insert both parts into Top Holder C. When all parts are aligned, fix with a bolt and nut. -
Page 14: Wheel
5. WHEEL ASSEMBLY a. Front wheel assembly The wheel is to be assembled in the following order. Insert the front wheel, tire sleeve (included with wheel), washer, and nut. Tighten the nut to secure, and install the wheel cover. b. Rear wheel assembly 1. -
Page 15: Seat
6. SEAT ASSEMBLY Parts Required: Seat, 20MM Screws*2 The seat has two tubes located in the back. Insert the tubes with the holes on the car body slide through until the seat is fully pushed back. The seat needs to be aligned with the screw holes on the car body. Fix with two screws on both sides. -
Page 16: Steering Wheel
7. STEERING WHEEL ASSEMBLY Connect the steering wheel with its corresponding wire pair from the car body. Align the steering wheel with the steering column. Push the steering wheel through by holding the two pins from the steering column. Ensure the steering wheel wire is tucked into the dashboard to avoid tearing the wire. -
Page 17: Battery Connection
9. BATTERY CONNECTION Open the hood by releasing the two hood latches, use the support rod to hold the hood upright. Connect the two (red) battery wires to enable power. Removable batteries are optional. Removable batteries (model versions of the product may vary) can be inserted and released using the quick release feature. - Page 18 FUSE This car is equipped with an auto-reset fuse. If the car stops suddenly while driving, it is caused by the instantaneous current exceeding, enabling the fuse to trip. This will result in the car disabling for about 8 seconds, and this fuse can be reset.
- Page 19 10. To maintain product life and safety, avoid damaging the charger, battery, or electrical circuit. The car must use the default configuration of the dedicated charger and power supply. 11. Rechargeable batteries should be removed from the toy before charging. 12.
- Page 20 Dashboard (function reference diagram) MP3 Player...
- Page 21 MP3 Player (model may vary)

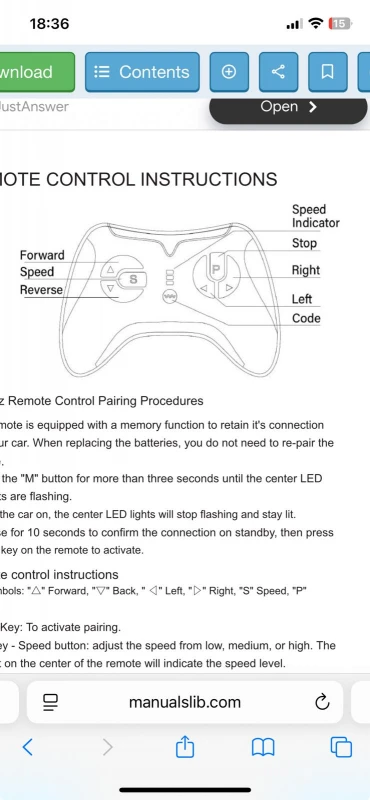

- Page 22 REMOTE CONTROL INSTRUCTIONS 2.4GHz Remote Control Pairing Procedures This remote is equipped with a memory function to retain it’s connection with your car. When replacing the batteries, you do not need to re-pair the remote. 1. Hold the “M” button for more than three seconds until the center LED lights are flashing.
- Page 23 WARNING 1. When operating the car with the remote, the distance between the car to remote should not exceed 10m range. 2. The remote is provided for adult’s to operate. Keep away from children. 3. Before using the remote, carefully read the instruction manual, ensuring all functions are reviewed properly before operating.
- Page 24 Changing the remote batteries: Unscrew the battery cover using a screw- driver. Following the arrow, press in the following direction to open the cover. Replace the batteries according to their corresponding polarity. How to insert batteries: Use a screwdriver to unscrew the back cover of the remote.
- Page 25 1. First, insert the charger into the charging port. 2. Carefully insert the charger outlet into the power outlet. Please note the car will not turn on when the car is connected. WARNING 1. The assembly of the car must be done by an adult. When unassembled, it contains potentially hazardous parts that are sharp or small.
- Page 26 • Before charging, please inspect the charger, battery, and plug to ensure no damages or abnormalities are found. If any damages are found, dis- continue usage of the car until the parts are replaced or resolved. • The battery may feel warm while being charged - this is normal. If the temperature from the charger does not elevate, it may be caused by a short circuit from the charger or circuit board.
- Page 27 6. Use a soft cloth to clean the car. Do not use chemical solvents, soap, or water to clean the vehicle. Do not drive under precipitation (e.g. snow, rain, etc.) as this will damage the motor, battery and circuit system. 7.
- Page 28 TROUBLESHOOTING...
