A subdivision of The DAAN Groups

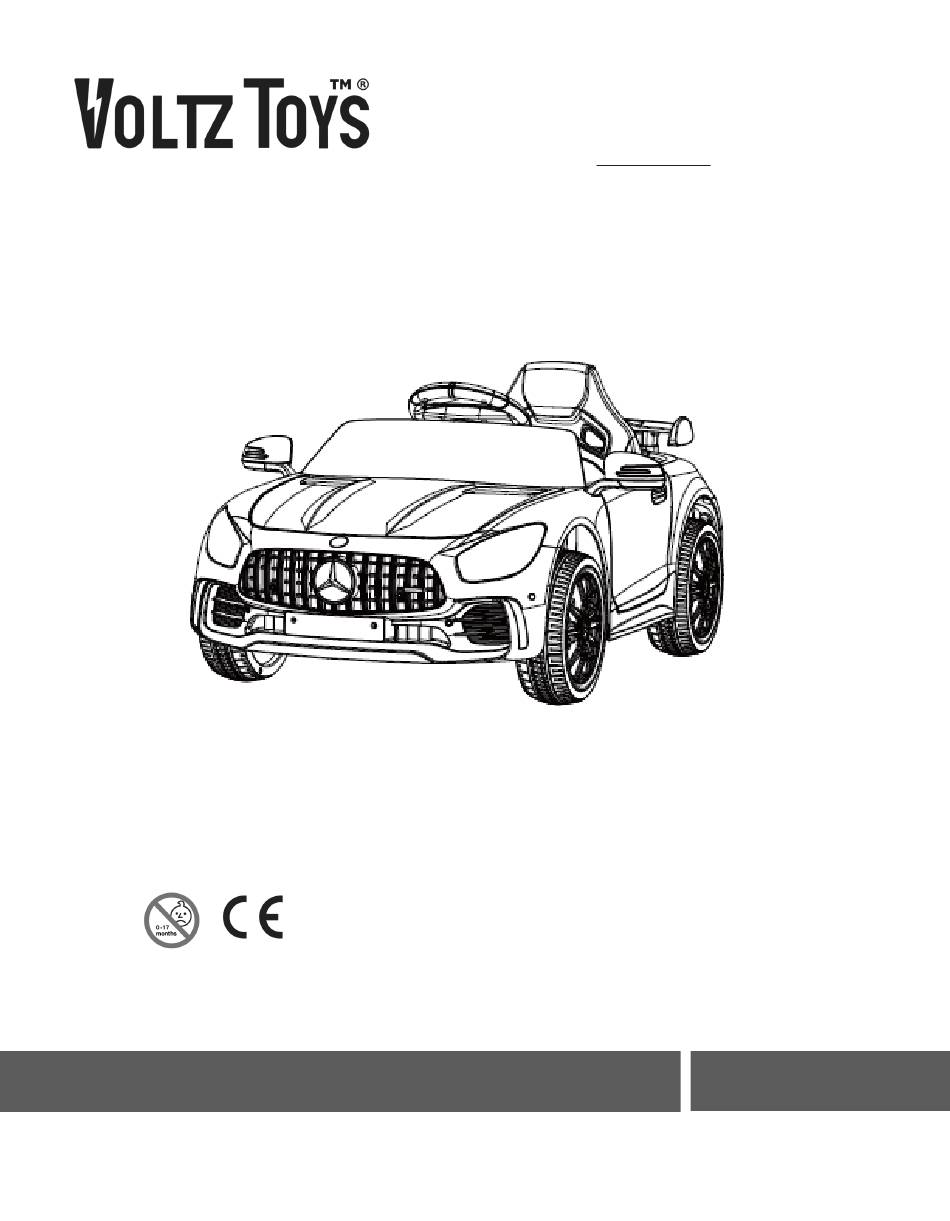

MODEL: 80001
MERCEDES-AMG GTR
CONTACT US
Before returning your product, please contact us first! Voltz
Toys Customer Service can assist you with any replacement
parts, damages, or defective issues reported. You can con-
tact us directly at www.voltztoys.ca.
Email: help@voltztoys.ca
Phone number: 1-888-338-6589
Head Office: Unit 7-3600A Laird Rd, Mississauga, ON, L5L
6A6
COMPLIANCE STANDARDS:
SOR/2011-17
SOR/2018-138
SOR/2016-195
SOR/2016-302
SOR/2018-83
SOR/2016-188
SOR/2014-254
EN71
ASTM F963-17
CPSIA
ENGLISH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Daan Tech VOLTZ TOYS 80001
Summary of Contents for Daan Tech VOLTZ TOYS 80001
- Page 1 CONTACT US Before returning your product, please contact us first! Voltz Toys Customer Service can assist you with any replacement parts, damages, or defective issues reported. You can con- tact us directly at www.voltztoys.ca. A subdivision of The DAAN Groups Email: help@voltztoys.ca Phone number: 1-888-338-6589 Head Office: Unit 7-3600A Laird Rd, Mississauga, ON, L5L...
-
Page 2: Product Specification
• Please read the manual before using the product. The manual and car- ton contain important information. Please keep the manual for later references. Failure to follow the instructions in the manual may result in damages, accidents, or defective issues with the product. •... - Page 3 WARNING An adult should assemble the product. Protective equipment should be worn. Not to be used in traffic. Not suitable for children under 3 years. Choking hazard of small parts. In an unassembled state, it contains potentially hazardous small parts. Please keep out of reach from small children.
-
Page 4: Parts List
PARTS LIST... - Page 5 ASSEMBLY INSTRUCTION 1. FRONT WHEEL ASSEMBLY PARTS REQUIRED: PART #7, #12, #13, #14, #15, #17 Begin the assembly with the car in an upside-down position. The front wheel is to be assembled in the following order. Insert the washer (#14), front wheel (#7), washer (#14), and M8 nut (#15).
-
Page 6: Rear Wheel Assembly
2. REAR WHEEL ASSEMBLY PARTS REQUIRED: PART #7, #12, #13, #14, #15, #17 Ensure the drive motor is pre-installed on the rear axle. The rear wheel is to be assembled in the following order. Insert the washer (#14), front wheel (#7), washer (#14), and M8 nut (#15). -
Page 7: Seat Assembly
3. TROLLEY WHEEL ASSEMBLY PARTS REQUIRED: PART #10, #18 The trolley wheels are to be installed underneath the car at the rear end. Attach the trolley wheels (#10) to slots on the car body. Fix the wheels with two M4x12 screws (#18). 4. - Page 8 5. SPOILER ASSEMBLY PARTS REQUIRED: PART #3, #18 Align the spoiler (#3) on the car body. Press down firmly until it “snaps” into place. Fix the spoiler with two M4x12mm screws (#18)
-
Page 9: Steering Wheel Assembly
6. STEERING WHEEL ASSEMBLY PARTS REQUIRED: PART #5, #16 Connect the steering wheel with its corresponding wire connector from the steering column. Insert the steering wheel (#5) to the steering column, and ensure the screw holes are aligned. Fix the steering wheel with a M5x40 bolt and M5 nut (#16). - Page 10 8. SIDE MIRROR ASSEMBLY PARTS REQUIRED: PART #6 Install the side mirrors (#6) on the corresponding slots from the car body. Press firmly until it “snaps” into place.
- Page 11 DASHBOARD GUIDE • Power switch - Flip the power switch on, the light will emit and activate the engine start-up sound. • MP3 Player - Built-in music, AUX port, volume adjustment, and power display. • Steering wheel - Equipped with music and horn. •...
-
Page 12: Charging Indication
CHARGING INDICATION When the car is low in power, please charge the battery on time. Use the provided charger to connect the vehicle’s charging port to a wall outlet. The battery will begin charging. WARNING: This product is equipped with charging protection. While connected to the charger, the car is disabled. - Page 13 2.4GHz Remote Control Pairing Procedures 1. To pair the remote with the vehicle, install two AAA 1.5V batteries. Un- screw and push the battery cover open on the back of the remote. Please pay attention to the positive and negative polarity in the battery holder.
- Page 14 WARNING 1. When operating the car with the remote, the distance between the car to remote should not exceed 10m range. 2. The remote is provided for adult’s to operate. Keep away from children. 3. Before using the remote, carefully read the instruction manual, ensuring all functions are reviewed properly before operating.
-
Page 15: Charging Procedures
How to insert batteries: Use a screwdriver to unscrew the back cover of the remote. Install two AAA 1.5V alkaline type batteries according to the diagram (batteries not included). Fix the battery cover with a screw. How to remove batteries: Use a screwdriver to unscrew the back cover of the remote. - Page 16 WARNING 1. The assembly of the car must be done by an adult. When unassembled, it contains potentially hazardous parts that are sharp or small. Please keep out of children’s reach. 2. Choking hazards of small parts. 3. Not for children under 36 months. Recommended for 36-72 months. 4.
-
Page 17: Maintenance And Service
MAINTENANCE AND SERVICE 1. Before using, adults are responsible for reviewing the product and es- sential parts are in a functional condition. Check whether screws are loose or other potential hazards. Any damaged or defective parts must be repaired or resolved before using. 2. -
Page 18: Troubleshooting
14. Low batteries should be removed from the car and kept away from chil- dren. 15. Disconnect the batteries when completely inactive or discontinued. Do not let children use the car in this state. TROUBLESHOOTING... - Page 19 <25kg...
