Fortinet FortiWeb High-End Series Quick Start Manual page 5

1 2 3 4
1 Disk Storage 2x480GB SSD
2
Power Button
Blue: Device is on
Off: Device is off
3 System Management
R: System reboot button
F: Factory default reset button
N: NMI debug button
4
Management Ports MGMT1 192.168.1.99, MGMT2 192.168.2.99
ACT
Green: Link established, no activity
Flashing Green: Data activity
Off: No link established
Power Supply Status
Green: Power supplies operating normally
Red: Power supply error
5 Console Port (RJ-45) CLI management computer interface
USB Ports (USB A) 3.0 server ports
8

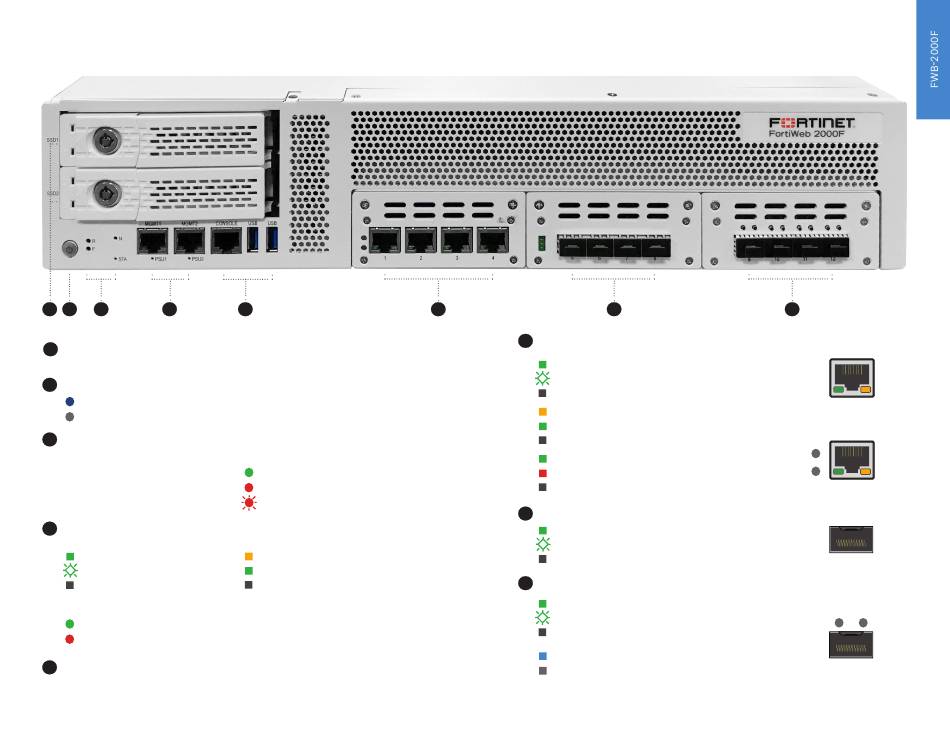

Front - FortiWeb 2000F
5
STA: System status indicator
Green: System operating normally
Red: Critical system error
Flashing Red: Minor system error
LINK
Amber: Link established at 1000Mbps
Green: Link established at 100Mbps
Off: No link established or at 10Mbps
6 7
6
Ports 1 to 4 (RJ-45) GE Ethernet ports
Green: Link established, no activity
Flashing Green: Data activity
LINK/
ACT
Off: No link established
Amber: Link established at 1000Mbps
Green: Link established at 100Mbps
SPEED
Off: No link established or at 10Mbps
Green: Bypass disabled, normal traffic flow to CPU
Red: Bypass active, traffic flows to the bypass
BYPASS
Off: Open mode active, traffic drops
7
Ports 5 to 8 (SFP) 1Gbps network connections
Green: Link established at 1Gbps
Flashing Green: Data activity
Off: No link established
8
Ports 9 to 12 (SFP+) 10Gbps network connections
Green: Link established, no activity
Flashing Green: Data activity
LINK/
ACT
Off: No link established
Blue: Link established at 10Gbps
SPEED
Off: No link established
8
LINK/ACT SPEED
RJ45
BYPASS
RJ45
SFP
SPEED
LINK/ACT
SFP+
9
