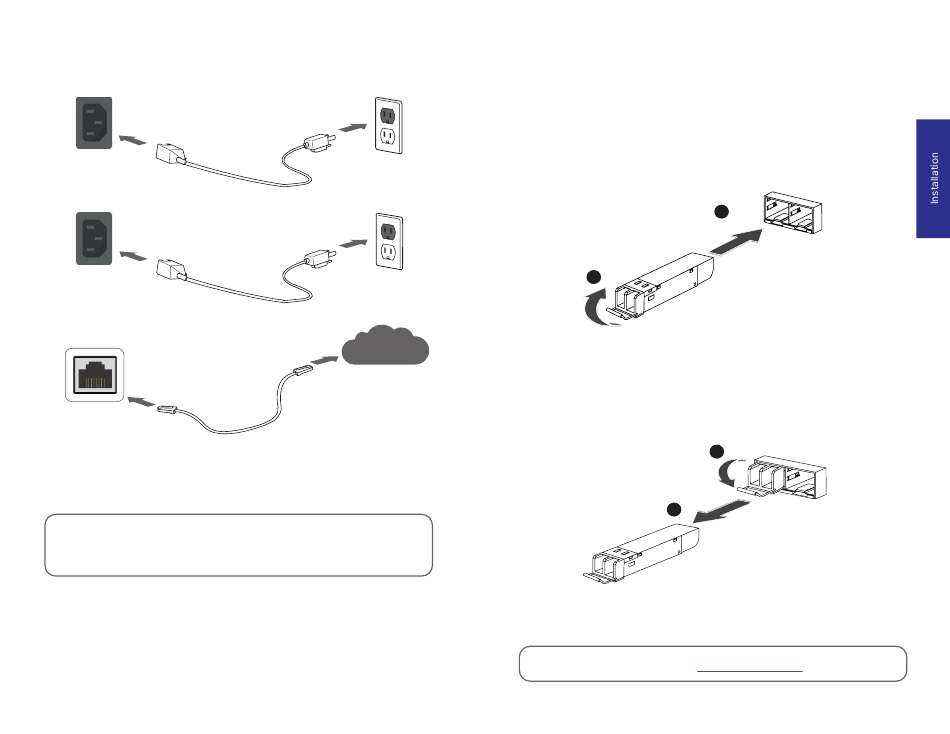

Basic Connections

Power Connection
Power Connection
WAN port
1. Plug in your device to power outlet using the provided power cables
2.Connect a WAN port to the internet using the supplied Ethernet cable
Note: Your device has dual AC inputs for failover redundancy. If both
AC inputs are used, only one is active. If the active AC input fails, the
second input will be active.
28
Power Outlet
or UPS
Supplied Power Cable
Power Outlet
or UPS
Supplied Power Cable
Internet
Ethernet Cable

SFP Installation

To install the SFP transceivers
1. Slide the SFP into the cage socket until it clicks into place
2. Lift the latch to lock the SFP
SFP
2
Tx
Rx
To remove the SFP transceivers
1. Lower the latch to unlock the SFP
2. Carefully pull the SFP out of the cage socket
2
SFP
Note: For more information, visit support.fortinet.com
Cage Socket
1
Cage Socket
1
Latch
