These assembly instructions are only applicable for the dual hanging closet.
General Instructions:
Thank you for purchasing a Gracious Home product. You are now the proud owner of a high quality product designed to face the test of daily use and
guaranteeing your enjoyment for many years to come.
Carefully read the instructions before starting the installation.
During assembly. please follow all generally accepted safety procedures.
Failure to adhere to the following instructions will invalidate the manufacturer warranty. The manufacturer will decline any responsibility for any
damages caused. Any installation which does not correspond to the instructions may result in defects. malfunctioning parts. significant damage and/or
injury.
If you are missing any parts, please contact Customer Care department immediately .
Tools Required: Phillips Screwdriver
WARNING!
Children have died from furniture tip over. To reduce the risk of furniture tip over:
ALWAYS install anti-tipping hardware that is provided.
NEVER allow children to stand, climb or hang on drawers, doors, or shelves.
NEVER overload shelves or drawers – evenly distribute the weight.

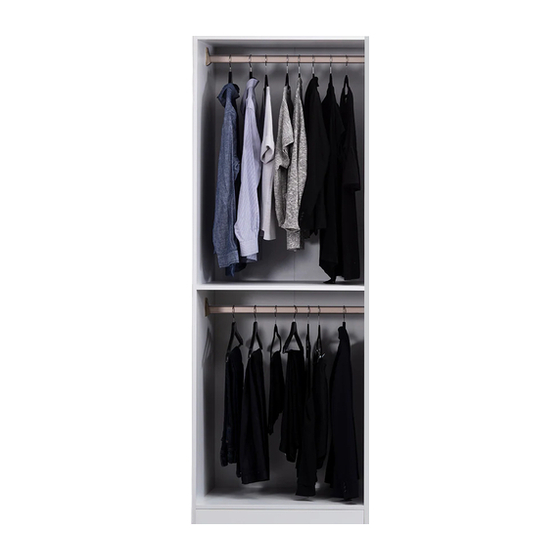

Gracious Home Dual Hanging Closet
ASSEMBLY INSTRUCTIONS
Tools Required: Electric Drill
Tools Required: Rubber Mallet
Important:
Weight Capacity - Overall Unit 100 lbs. Each
hanging rod has a capacity of 30 lbs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GH3024HG-WH and is the answer not in the manual?

Questions and answers

Summary of Contents for Gracious Home GH3024HG-WH

  • Page 1 These assembly instructions are only applicable for the dual hanging closet. General Instructions: Thank you for purchasing a Gracious Home product. You are now the proud owner of a high quality product designed to face the test of daily use and guaranteeing your enjoyment for many years to come.
  • Page 2 GH3024HG-WH GH3024HG-WN Hardware Bag i] · , '-¾ � � � Qty22 Qty1 Qty 4 Qty 22 Qty22 Qt y 4 Qty4 Qty18 Qty4 Qty2 Qty4 Cabinet Parts Detail Ji ,c' ITEM Right Side Panel Back Rail Shelf Left Side Panel...
  • Page 3 GH3024HG-WH GH3024HG-WN � Jo� ./�:·:·:,. > > > > >"�"''" > " After unpacking, place the panels on a soft surface. 1. Screw the hardware onto the side plate with an electric drill. � ' Q ty4 Qty22 Qty 4...
  • Page 4 GH3024HG-WH GH3024HG-WN 2. Install the wooden dowels on the top panel, bottom panel, back rail, shelf and toe kick with the rubber mallet. Connect with the right side panel. Tighten it with a screwdriver. Insert the back panel. Qty18 ---..----K...
  • Page 5 GH3024HG-WH GH3024HG-WN 3. Fasten the left side panel with a screwdriver, then paste perfect paste to the hole. Qly11 Qty22 4. Put the shelf support into the shelf hole. i / / / / / Qty4 .s ( � " " ,J'y , , , . ·...
  • Page 6 GH3024HG-WH GH3024HG-WN 5. Put the screw in to shelf hole, place the shelf, then lock it Install the hanging rod -----H -----c ----H Page 6...
  • Page 7 GH3024HG-WH GH3024HG-WN 6. When placing two cabinets next to each other use below hardware to connect the two cabinets for extra strength Drill a hole in the two side panels that are next to each other then secure the closet with the screw through the hole...
  • Page 8 GH3024HG-WH GH3024HG-WN Qty 4 Page 8...
  • Page 9 GH3024HG-WH GH3024HG-WN (2) Anti-tipping hardware kits are included to secure the closet to the wall. If there is not a stud in the 5x60 SCREW AND Hardware Bag wall to secure the hardware, use ANCHORS TO WALL the wall anchor for support and...
  • Page 10 ►Maintenance For daily cleaning, use a dry cloth and a soft liquid cleaner. Never use abrasive cleaners containing acetone, chlorine or strong bleach. Also, do not use tools as scrapers, metallic brushes, and other products which can scratch or tarnish surfaces. Under no circumstances should you use chrome cleaner on chrome-plated or brass trim, hinges, handles, sockets etc.

This manual is also suitable for:

Gh3024hg-wn
