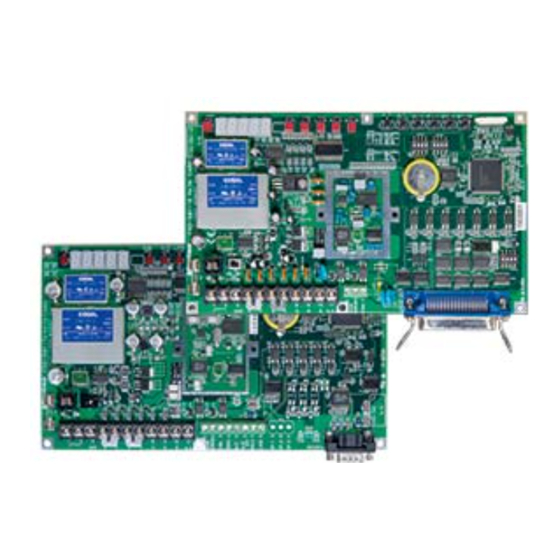

Minebea CSD-581-74 Instruction Manual

Digital indicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DIGITAL INDICATOR
CSD-581-74
Instruction Manual
EN294-1108-J

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSD-581-74 and is the answer not in the manual?

Questions and answers

Related Manuals for Minebea CSD-581-74

Summary of Contents for Minebea CSD-581-74

  • Page 1 DIGITAL INDICATOR CSD-581-74 Instruction Manual EN294-1108-J...
  • Page 3 FOREWORD Thank you very much for your purchasing our Digital Indicator CSD−581−74. This manual explains installation procedures and connecting method and also operating method for Digital Indicator CSD−581−74. Make use of it properly after reading through the manual carefully. Be sure to deliver the manual to the end user. Moreover, the end user should keep the manual at hand after reading it over.
  • Page 4 Marks and arrangement used in this manual The following marks are attached to the explanation on the matters that indicate “Don’t do this.”, “Take care.” and “For reference”. Be sure to read these items where these marks are attached.  Warning ●...
  • Page 5 For safe operation Be sure to read this manual before use. 1. Installation place  ● Use the instrument where the temperature/humidity specifies within the range as follows: : −10 ℃ to 50 ℃ Environmental temperature Environmental humidity : Less than 85 %R.H. Non condensing.) (1) Location where installation is not allowed.
  • Page 6 (2) Installation  Warning ● There are a lot of electrical parts installed on the P .C. board of the instrument, so there have fears to occur electrostatics destruction. Because of this, operator should discharge electricity from him/her by touching some metal sections other than the instrument before use. Besides, take care not to touch electrical parts when you operate.
  • Page 7 Each dimensions of the instrument and required dimensions for the environmental spaces are as follows: Dimensions for installation 6−φ4 land□6 CN202 SW208 SW207 Unit：mm Dimensions when the optional metal cover(CSD581−P80) is installed. (37.6) 4−φ6 (195) (31) (24) Unit：mm...

  • Page 8: Power Supply

    2. Power supply  Warning ● Be sure to check that power supply is off when installing each cable. If the work is done with the power fed, there may have the possibility of electric shock to the operator or even the possibility of destroying the instrument.
  • Page 9  Warning ● Do not shock the instrument such as throwing something on it. If neglected, it may cause destruction of the parts and damage to the electrical circuits.  Warning ● Don’t push the key switch section on the instrument with unnecessary strong force nor push it with sharp−edge object such as driver.
  • Page 10 Battery U301 MOD301 CN202 SW208 SW207  Warning ● Don’t supply the power when the instrument is placed directly on the conductive material such as metal, and also when it is covered in conductive bag for packaging. If neglected, it may cause the damage in the instrument or electric shock to the operator.
  • Page 11 − Change − Front cover’s logo is changed. Due to ECN No.FN10−02140 Oct.2010 DRW.No.EN294-1108-H − Change − MInebea logo is changed. Due to ECN No.FN11−02018A − Change − Mar.2011 DRW.No.EN294-1108-I 4−2.and 7−2−4. “DE−9S−N(made by JAE)” →”DE−9S−NR by JAE or equivalent.”...
  • Page 12 Date Instruction manual No. Details of revised point Due to ECN FN17-02017 ・Delete the company name in the contents. Due to ECN FN15-02132B －Correct miswriting－ 1. Installation place ・Dimensions for installation ・Dimensions when the optional metal cover(CSD581−P80) is installed. 3. Application note 2.

  • Page 13: Table Of Contents

    CONTENTS FORWARD ............
  • Page 14 6−3. “ZERO” key ............6−3−1.
  • Page 15 ............9.

  • Page 17: Forward

    1. General The instrument is a digital indicator for the application of strain gage applied transducers. 1−1. Features Main features for CSD−581−74 are as follows : (1) P .C. board type Only one piece of P .C. board can perform the function of digital indicator with RS−232C Interface, and it is suitable for the application inside of control panel.

  • Page 18: Marks And Arrangement Used In This Manual

    2. Each name and function ② ① ⑩ ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ CN202 SW208 SW207 ⑯ ⑭ ⑪ ⑮ ⑫ ⑬ Load display The load data is shown in Measurement mode, and status display is shown in various kinds of Calibration mode and Setting mode.

  • Page 19: For Safe Operation

    “CHECK” key Used when ON/OFF operation of CHECK value is required. “ENTER” key Used for registering the set value at the time of various kinds of settings. Position of pasting the Unit seal As necessity requires, paste the Unit seal attached. Terminals No.

  • Page 20: Installation Procedures

    3. Installation procedures 3−1. Installation place  ● Use the instrument where the temperature/humidity specifies within the range as follows: ：−10 ℃ to 50 ℃ Environmental temperature ：Less than 85 %R.H.(Non condensing.) Environmental humidity 3−2. Location where installation is not allowed. ...

  • Page 21: 3−3. Installation

    3−3. Installation  Warning ● There are a lot of electrical parts installed on the P .C. board of the instrument, so there have fears to occur electrostatics destruction. Because of this, operator should discharge electricity from him/her by touching some conductive metal sections before use. Besides, take care not to touch the electrical parts when you operate.

  • Page 22: Application Note

    Each dimensions of the instrument and required dimensions for the environmental spaces are as follows: Dimensions for installation 6−φ4 land□6 CN202 SW208 SW207 Unit：mm Dimensions when the optional metal cover(CSD581−P80) is installed. (37.6) 4−φ6 (195) (31) (24) Unit：mm...

  • Page 23: Connecting Method

    4. Connecting method 4−1. Layout of terminals and RS−232C interface connector There are 2 pieces of terminals connector, one has 11 points of terminals connector(Terminals No.1) and the other has 8 points of terminal connector(Terminals No.2) and also attached RS−232C interface connector. Layout of terminals and RS−232C connector are shown in the following figure.

  • Page 24: 4−2. Note On Connection

    4−2. Note on connection  Warning ● In case of connection with the instrument, keep strictly to the following items. If neglected, it may cause an unexpected failure or a damage to the instrument. D Be sure to set the power supply to OFF position, when connection will be made. D Since the terminals of the instrument is made of resin, take care not to drop it down or not to apply strong impact.

  • Page 25: Record Of Revision

    4−3. Connections 4−3−1. Connection with strain gage applied transducers The instrument can connect with strain gage applied transducers, such as load cell, pressure transducer and so on. Here, we will describe the example of connections with load cell, so connect with another type of strain gage applied transducers in the same way. ...
  • Page 26  ※1 When tension is applied with the application of tension type or universal(compression/tension) type of load cell, and display of “+” direction is required, connect “Green” with Terminal No.9 at terminals No.1, and “Blue” with Terminal No.8 at terminals No.1 individually.
  • Page 27 ii) In case of application of CAB−501(6 cores cable) CN202 SW207 SW208 Junction box B−304 CAB−501 ※3 (Length of CAB−501 should be Enlarged figure for connecting section within 100 m totally.) B−304 Internal terminal connections to Load cell YEL(shield) Suitable crimp−type terminal lugs：1.25−4 or 2−4 Terminal pitch 9.5 mm YEL(shield)
  • Page 28  ※1 When tension is applied with the application of tension type or universal(compression/tension) type of load cell, and display of “+” direction is required, connect “Green” with Terminal No.9 at terminals No.1, and “Blue” with Terminal No.8 at terminals No.1 individually.
  • Page 29 B−307 Internal terminal connections YEL(shield) To CSD−581−74 YEL(shield) YEL(shield) YEL(shield) YEL(shield) ii) In case of application of CAB−501(6 cores cable) CN202 SW208 SW207 Junction box B−307 CAB−501 ※3 (Length of CAB−501 should be Enlarged figure for connecting section 100 m totally.)
  • Page 30 B−307 Internal terminal connections YEL(shield) to CSD−581−74 YEL(shield) YEL(shield) YEL(shield) YEL(shield)
  • Page 31  ※1 When tension is applied with the application of tension type or universal(compression/tension) type of load cell, and display of “+” direction is required, connect “Green” with Terminal No.9 at terminals No.1, and “Blue” with Terminal No.8 at terminals No.1 individually.As there is a case which standard wiring color is different, please confirm the inspection data sheet of the load cell being used.
  • Page 32 SB−310 Internal terminal connections Short bars Output Port Input port No. 1 To CSD−581−74 WHGN BLYE Input port No. 2 WHGN BL Input Port No. 4 Input port No. 3 A：3.2 mm or less Suitable crimp−type B：7 mm or less terminal lugs ･Y type ･Round type...
  • Page 33 Internal terminal connections for SB−310 Short bars Output Port Input port No.1 To CSD−581−74 WHGN BLYE Input port No.2 Input Port GN BL No.4 Input port No.3 Suitable crimp−type A：3.2 mm or less terminal lugs B：7 mm or less ･Y type ･Round type...

  • Page 34: 4−3−2. Connection With External Control Input

    4−3−2. Connection with external control input Connection with external control input of “ZERO”, “A/Z”, “A/Z OFF”, “HOLD” , “LOCK” “SEL 1” and “SEL 2” should be made by using contact or open collector as the below figure. Refer to the paragraph 7−1. for each input functions. CN202 SW208 SW207...

  • Page 35: 4−3−3. Connection With Open Collector Output

    4−3−3. Connection with open collector output Connection with open collector output “RUN”, “ERROR” and external load should be made as the following figure. At the same time, care should be taken fully, so that the load doesn’t exceed the rated open collector.

  • Page 36: 4−3−4. Connection With Power Supply And Ground

    4−3−4. Connection with power supply and ground Connection with power supply and ground should be made as follows: Besides, grounding should be the D class with single ground. Power supply voltage DC24 V (DC18 V to DC36 V) Power consumption Approx.

  • Page 37: Calibration Procedures

    5. Calibration procedures  Warning ● Before using the new instrument or after exchanging the strain gage applied transducer with a new one, be sure to make calibration. If calibration is not made, correct measured results may not be obtained, or it may cause malfunction to the instrument and it may damage the peripheral equipment.
  • Page 38 5−2−1. Calibration method to register the output of strain gage applied transducer at the time of maximum display after setting the load to zero. (1) Procedure by key operation  Warning ● Before using a new instrument or exchanging the strain gage applied transducer for a new one, be sure to make calibration.
  • Page 39 Procedures Press the “A/Z A” key at one time. The load display will show “CCAL ”. Press the “ENTER” key. “CCAL ” mode can be entered, then the load display will show “D−01” and it will light on and off. When the calibration has completed already, the set value of minimum scale which has registered at that time will be displayed.
  • Page 40 Procedures Press the “ENTER” key. The load display will show “2000”, and the digit of minimum display will lights on and off. When the calibration has completed already, the registered value of maximum display at that time will be displayed. ...
  • Page 41 Procedures Press the “ENTER” key. The load display will show “0.3000”, and the digit of 10 will flash on and off. In case that calibration has completed already, the registered output value of load cell at that time will be displayed. Set the output value for load cell corresponding to the maximum display value that has set in step 5 with the right keys.
  • Page 42 Procedures Press the “ENTER” key. The load display will show “−−−−−” with lighting display on and off, then zero adjustment can be started.  ： Warning At the same time, take care not to apply load vibration due to vibration and so on. When load vibration is applied, there will be possibilities that zero point is unstable, and precise reading of zero will not be obtained.
  • Page 43 (2) Procedure through the communication  Warning ● Before using a new instrument or exchanging the strain gage applied transducer for a new one, be sure to make calibration. If calibration shall not be made, correct measured results may not be obtained nor may cause malfunction in the instrument and there may exist damage in peripheral equipments.
  • Page 44  ● In case of interrupting the calibration during the calibration procedure, transmit “Calibration mode interrupting command” from the Host. The calibration data will keep the same condition as it is entered before, then return to the Measurement mode. Command Host→CSD−581 Return CSD−581→Host Procedure Transmit the start command for Calibration...
  • Page 45 Procedure Transmit the command data to change the Command Host→CSD−581 maximum display value from the Host, and set the maximum display value. The setting range of the maximum display value C 0 2 1 CR LF is from (minimum scale×100) to 99 990. To make good use of the performance, set within the following range.
  • Page 46 Procedure Set the instrument with initial load condition. Command Host→CSD−581 Transmit the start command from the Host for “Calibration method to register the maximum display output from strain gage applied load cell after making the load to zero”. The instrument will transmit the return signal and will start the Return CSD−581→Host zero adjustment.
  • Page 47 5−2−2. Calibration method to register the output of strain gage applied transducer at the time of zero and the maximum display (1) Procedure by key operation  Warning ● Before using a new instrument or exchanging the strain gage applied transducer for a new one, be sure to make calibration.
  • Page 48 Procedures Press the “FUNC.” key for about one second. The load display will show “FUNC.”. Press the “A/Z A” key twice. It will make the load display proceed as “FUNC.” →“CCAL ”→“ACAL ”. Press the “ENTER” key. The ACAL mode can be entered, then the load display will show “D−01”...
  • Page 49 Procedures Press the “ENTER” key. The load display will become “2000”, and the digit of minimum display will light on and off. When the calibration has been already completed, the registered maximum display value at that time will be displayed. ...
  • Page 50 Procedures Press the “ENTER” key. The load display will become “0.0000”, and the digit will light on and off. When the calibration has been already completed, the output value of load cell registered at that time will be displayed. Set the output value for load cell with initial load application with the keys showing in the right column.
  • Page 51 Procedures Press the “ENTER” key. The load display will become “3.0000”, and the digit of 10 will light on and off. When calibration has been already completed, the registered output value of load cell will be shown. Set the output value for load cell corresponding to the maximum display value set in step 5 with the “A/Z A”, “A/Z OFF Y”...
  • Page 52 (2) Procedure through the communication  Warning ● Before using a new instrument or exchanging the strain gage applied transducer for a new one, be sure to make calibration. If calibration shall not be made, correct measured results may not be obtained nor may cause malfunction in the instrument and there may exist damage in peripheral equipments.
  • Page 53  ● In case of interrupting the calibration during the calibration procedure, transmit “Interrupting command in Calibration mode” from the Host. The calibration data will keep the same condition as it is entered before, then return to the Measurement mode. Command Host→CSD−581 Return CSD−581→Host Procedure...
  • Page 54 Procedure Transmit the command data to change the Command Host→CSD−581 maximum display value from the Host, and set the maximum display value. The setting range of the maximum display value C 0 2 1 CR LF is from (minimum scale×100) to 99 990. To make good use of the performance, set within the following ranges.
  • Page 55 Procedures Transmit the command data for the change of Command Host→CSD−581 mV value at span, and set the output value corresponding to the maximum display value set in the step 3. C 0 2 4 CR LF Set the greater value of 0.200 mV/V(more than “2000”...

  • Page 56: Transducer In The Conditions Of Zero/Actual Load Application Individually

    5−2−3. Calibration method to register by reading output value of strain gage applied transducer in the conditions of zero/actual load application individually. (1) Procedures by the key operation  Warning ● Before using a new instrument or exchanging the strain gage applied transducer for a new one, be sure to make calibration.
  • Page 57 Procedures Press the “FUNC.” key for about one second. The load display will show “FUNC”. Press the “A/Z A” key three times. It will make the load display proceeded as “FUNC”→“CCAL ”→“ACAL ”→“LCAL ”. Press the “ENTER” key. “LCAL ” mode can be entered, and the load display shows “D−01”...
  • Page 58 Procedures Press the “ENTER” key. The load display will show “2000”, and the digit of minimum display will light on and off. When the calibration has been already completed, the maximum display value registered at that time will be displayed. ...
  • Page 59 Procedures Press the “ENTER” key. The load display will show “2000”, and the digit of 10 will light on and off. When the calibration has been already completed, the registered output value of load cell applied with actual load at that time will be displayed. ...
  • Page 60 Procedures Press the “ENTER” key. The load display will become “−−−−−” with flashing display on and off, then zero adjustment can be started.  ： Warning At the same time, be careful not to apply load vibration due to vibration and so on. When load vibration is applied, it may have the possibilities that zero point becomes unstable, and precise reading of...
  • Page 61 Procedures Press the “ENTER” key. The load display will show “−−−−−” with lighting on and off, and Span adjustment will be started.  ： Warning At the same time, be careful not to apply load vibration due to vibration and so on. When load vibration is applied, it may have the possibilities that span will become unstable, and precise reading of span will...
  • Page 62 (2) Procedure through the communication  Warning ● Before using a new instrument or exchanging the strain gage applied transducer for a new one, be sure to make calibration. If calibration shall not be made, correct measured results may not be obtained nor may cause malfunction in the instrument and there may exist damage in peripheral equipments.
  • Page 63  ● During calibration procedure, transmit “Interrupting command in calibration mode” from the Host in case of interrupting the calibration is required. The calibration data will keep the same condition as it is entered before, then return to the Measurement mode.
  • Page 64 Procedure Transmit the command data to change the Command Host→CSD−581 maximum display value from the Host, and set the maximum display value. The setting range of the maximum display value C 0 2 1 CR LF is from (minimum scale×100) to 99 990. To make good use of the performance, set within the following ranges.
  • Page 65 Procedures Set the instrument with initial load condition. Command Host→CSD−581 Transmit the start command for calibration of the zero point of “Calibration method to register by reading output value of strain gage applied transducer in the conditions of zero/actual load Return CSD−581→Host application individually.”...
  • Page 66 Procedures Apply the same weight set in the step 4. on the Command Host→CSD−581 load cell. Transmit the start command from the Host for setting the zero point of “Calibration method to register the maximum display output from strain gage applied load cell after making the load to zero”.

  • Page 67: 5−2−4. Fine Adjustment On Zero

    5−2−4. Fine adjustment on zero (1) Procedure by key operation  ● Make the range of zero fine adjustment within ±10 % of the maximum display value. When the adjustment exceeding the range is desired, proceed another calibration method for it. ●...
  • Page 68 Procedures Press the “A/Z A” key 4 times. The load display will change as “CCAL ”→“ACAL ” →“LCAL ”→“ZERO”. At the same time, set the load with initial condition. Press the “ENTER” key. Zero fine adjustment mode can be entered, then display of load will show the present load value and light on and off.
  • Page 69 (2) Procedure through communication  Warning ● Change the related functions with communication such as F−28, F−29, F−30, F−31, F−32 and F−34 corresponding to the specifications of host equipment. (Refer to the paragraph 7−2 and 8) After changing these, turn off the power of this instrument once. These updated settings will be effective upon turning on the power again.
  • Page 70 Procedures Transmit the start command for calibration mode from the Host. The load display shows “−RS−” and will flash on and off. Command Host→CSD−581 Return CSD−581→Host The Host will transmit the command for reading Command Host→CSD−581 the present load value. ...
  • Page 71 Procedures Transmit the finish command for calibration Command Host→CSD−581 mode from the Host. Quitting from the calibration mode, the instrument will display the present load on the load display section. Return CSD−581→Host...

  • Page 72: 5−2−5. Fine Adjustment On Span

    5−2−5. Fine adjustment on Span. (1) Procedure by key operation  ● Make the range of zero fine adjustment within ±10 % of the maximum display value. When some adjustment exceeding the range is desired, proceed another calibration method for it. ●...
  • Page 73 Procedures Press the “A/Z A” key 5 times. The load display will change as “CCAL ”→“ACAL ” →“LCAL ”→“ZERO”→“SPAN”. Here, apply the maximum load on the load cell that can be applicable within the maximum display value. Press the “ENTER” key. Span fine adjustment mode can be entered, and the indication of load display will become the present load value and will light on and off.
  • Page 74 (2) Procedures through communication  Warning ● Change the related functions with communication such as F−28, F−29, F−30, F−31, F−32 and F−34 corresponding to the specifications of host equipment. (Refer to the paragraph 7−2 and 8) After changing these, turn off the power of this instrument once. These updated settings will be effective upon turning on the power again.
  • Page 75 Procedures Transmit the start command for calibration from the Host. The load display shows “−RS−” and will flash on and off. Command Host→CSD−581 Return CSD−581→Host The Host will transmit the command for reading Command Host→CSD−581 the present load value.  The decimal point isn’t added to the present load value read by the reading Return CSD−581→Host...
  • Page 76 Procedures Command Host→CSD−581 Transmit the finish command for calibration mode from the Host. Quitting from the calibration mode, the instrument will display the present load on the load display section. Return CSD−581→Host...

  • Page 77: 5−2−6. Calibration Procedure To Apply Registration Again For Zero Point Only

    5−2−6. Calibration procedure to apply registration again for zero point only (1) Procedures by key operation  Warning ● At the time of executing the calibration, be sure to set tare weight cancellation clear, cancellation of compensated data at zero set (Execution of F−98) and zero tracking OFF(Setting “00000”...
  • Page 78 Procedures Press the “ENTER” key. The TARE mode can be entered, then the indication on the load display will light on and off, and tare cancellation will be started.  ： Warning At the same time, care should be taken not to apply load variation due to vibration and so on.
  • Page 79 (2) Procedures through communication  Warning ● During the calibration is executing, be sure to set Tare weight cancellation clear, and to make cancellation (Execution of F−98) for compensated data on zero set and also set the OFF position of Zero tracking(Setting “00000”...
  • Page 80 Procedure Transmit the start command for calibration mode from the Host. The load display shows “−RS−” and will flash on and off. Command Host→CSD−581 Return CSD−581→Host Set the instrument with initial load condition. Command Host→CSD−581 Calibration Transmit the start command for “ procedure to apply registration again for zero point only ”...
  • Page 81 Procedure Transmit the finish command for calibration Command Host→CSD−581 mode from the Host. Quitting from the calibration mode, the instrument will display the present load on the load display section. Return CSD−581→Host...

  • Page 82: 5−3. Selection Of Calibration Methods On Each Condition

    5−3. Selection of calibration methods on each condition The instrument prepares calibration methods shown in the paragraph in 5−2. Calibration methods, here we’ll show some conditions to execute actual calibration. (1) When executing calibration on the new instrument (In case that our combined inspection has not executed.) D When load condition and output condition of load cell are clarified.
  • Page 83 For example, we will show the calibration procedures as follows, that is, 3 points of load cells with 3 mV/V of rated output and 5 t of rated capacity. Tare weight 1.5 t Weighing capacity Maximum display 5 000 Calculate the output of load cell at maximum display from the above conditions. Check that the calculated value should be within the range from 0.2 mV/V to 3.1 mV/V.
  • Page 84 After making the load cell to the initial load condition(tare weight), execute the calibration according to the paragraph 5−2−3(1) or (2). In this case(5−2−3(1)), make input “5 000” in step 5 , and also input “Load value on the load cell” in step 7 each, and in another case(5−2−3(2)), make input “5 000”...
  • Page 85 (4) When replacing the existing CSD−581−15 with a new one  Warning ● The accuracy in this procedure is less than 1/1 000 or so. If higher accuracy is required, make calibration by using actual load according to the paragraph 5−3−1(2). Moreover, the accuracy described here is a combined accuracy with the instrument and strain gage applied transducer connected.

  • Page 86: 5−3−2. When The Calibration Is Executed Again

    5−3−2. When the calibration is executed again. When purchasing a new instrument, make calibration with whichever the following method in case that combined inspection has executed at our site. tare weight has changed, or fine adjustment on zero and span are required. (1) Calculation on tare weight only （When combined inspection has completed at our site and calibration on only tare weight is required.)

  • Page 87: Operation Procedure

    6. Operation procedure We’ll show the operating procedures for the instrument on each key on the front panel.  Warning ● Each key operation should be made after interrupting the measurement. If it is made during measurement, it may cause an unexpected malfunction.

  • Page 88: 6−2−2. Operation Is Made In Another Mode

    6−2−2. Operation is made in another mode When the “A/Z OFF Y” key is pressed with the condition of displaying various kinds of set values, set value makes increment the count one by one from 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, and 0 again continuously.
  • Page 89 7. Function and operation 7−1. External control input signal and open collector output signal The instrument is available to make the external control through various kinds of input/output signals. 7−1−1. Input signal for external control Activates by shortening with COM. on the terminals No.2(Pin No. 3). Pin No.
  • Page 90 7−1−2. Open collector output signal Pin No. of terminals Description Operation No.2 ON when the instrument is in the Measurement mode. OFF at the time of CHECK ON. ERROR ON when various kinds of errors are occurred in Measurement mode. COM.
  • Page 91 7−2. RS−232C Interface  Warning ● In case of turning ON the instrument with the condition of shortening the external HOLD signal, the output of RS−232C interface will become as follows: When executing the command for reading out the load data while display is the target of hold by F−50, all the load data will become spaces.
  • Page 92 7−2−2. Specifications on interface (1) Method Based on RS−232C (2) Specifications on Signal Baud rate 600, 1 200, 2 400, 4 800, 9 600, 19 200 and 38 400 bps Data bit length 7 bit,8 bit Parity bit None, Even and Odd parity Stop bit 1 bit,2 bit Terminator...
  • Page 93 7−2−4. Pin layout and wiring of Connector (1) Pin layout Pin No. Signal Name N.C. S.G. N.C. N.C. Applied plug：DE−9S−NR by JAE or equivalent. (not attached.)  ● The screws for the fixing base of RS−232C interface connector is inch type thread.
  • Page 94 Example No.2 CSD−581 Host(9 pins) N.C. S.G. S.G. N.C. N.C. 7−2−5. Data format (1) Stream mode Sign of load data Load data D Load data will be entered from the right end. D “−” in minus and “＋” in plus will be entered to the sign. D Load data will perform zero suppression.
  • Page 95 (2) Command mode Read out the load data(Host→CSD−581) Command No. Operation Reading out the display data Reading out the net weight Command No. Reading out the gross weight Reading out the tare weight Return(CSD−581→Host) Load data Sign of load data Command No.
  • Page 96 Reading out the condition(Host→CSD−581) Command No. Return(CSD−581→Host) Condition Command No. a：A/Z “1”＝ON, “0”＝OFF b：Nothing “0” c：ERROR “1”＝ON, “0”＝OFF d：Nothing “0” Change of condition(Host→CSD−581) Command No. Operation ZERO Command No. A/Z OFF Return(CSD−581→Host) Command No. Error code Error message to the command(CSD−581→Host) Error code Command No.
  • Page 97 Change of condition for calibration mode Command No. Operation Start of the calibration mode Stop the calibration mode Command No. end of the calibration mode Return(CSD−581→Host) Command No. D Upon receiving the start command for calibration mode, the indication of “−RS−” on load display will flash on and off, and the command related to the calibration through communication will become available.
  • Page 98 Return(CSD−581→Host) Various setting value Sign Command No. D Enter the setting value from the right end. D “−” in minus and “＋” in plus will be entered to the sign. D Don’t put the decimal point. Selection of calibration and start(Host→CSD−581) Command No.
  • Page 99 Reading the condition during calibration(Host→CSD−581) Command No. Return(CSD−581→Host) Result Command No. Result Contents Normal(Input is within the range) Input is lower than the specified range Input is higher than the specified range Under calibration Fine adjustment(Host→CSD−581) Command No. Contents of operation Zero fine adjustment / increase Zero fine adjustment / decrease Command No.
  • Page 100 7−3. How to use filter The instrument has digital filter that can stabilize the transferred data into digital through calculation processor.  Warning ● When setting the filter is not adequate, correct measurement can’t be made and it may cause unexpected accident, so care should be taken fully.
  • Page 101 7−4. Zero tracking The instrument prepares zero tracking function in order to compensate for slow drift of zero. 7−4−1. What is zero tracking? D Zero tracking is a function to compensate slow drift of zero within the constant condition, and also to follow the zero point of the instrument in order to stabilize zero point. D When data variation width within the set time with Function F−08 is within range of set value set with F−07 against zero point, then the input will be compensated for zero point.
  • Page 102 7−4−3. Target of zero tracking Zero tracking of the instrument can select the target from whichever “Gross weight” or “Net weight”. This selection can be proceeded by the Function mode(related function F−62). Default setting is “Gross weight”. 7−4−4. Cancellation for compensation data by Zero tracking Cancellation for compensated data by zero tracking can be executed with the function F−98.
  • Page 103 7−5. Stabilized filter The instrument prepares stabilized filter that can filter through digital filter strongly when variable width for load is within the constant value and also when the condition is frozen for more than a constant period. 7−5−1. What is stabilized filter As for stabilized filter, when the variation width of load is within the value set by Function F−97 and also when the condition is continued for more than the set period by the Function F−10, the digital filter for stabilized filter set by the Function F−09 will become effective.
  • Page 104 Load variation width Setting of F−10 Setting of F−10 Load variation width Data width for Data width for stabilized filter stabilized filter Setting of F−10 Load variation width Data width for stabilized filter time Effective Digital filter for stabilized filter Ineffective...
  • Page 105 7−6. Various kind of functions for display 7−6−1. Selection of display target on load indication The load display on the instrument can select the target from whichever “Net weight” or “Gross weight”. These selections can be made in the Function mode. (Related Function F−02) As for default, “Net weight”...
  • Page 106 7−7. Change of bridge power supply voltage  Warning ● Prior to change the bridge power supply voltage, set the power OFF for the instrument. If neglected, there may cause unexpected failure. The instrument can select bridge power supply from “10 V” and “2.5 V”. This selection can be made with the SW1 “Changeover SW for bridge power supply”...
  • Page 107 7−8. Tare weight cancellation(A/Z) The instrument prepares Tare weight cancellation (A/Z) function. Pressing the “A/Z A” key makes Tare weight cancellation (A/Z) function operated and when the load display becomes net weight display, and at the same time, the “A/Z” lights up on the display and load display value becomes “0”.
  • Page 108  ● When Tare weight cancellation (A/Z) is executed in effective condition of digital Tare weight cancellation, digital tare cancellation value will be cleared, and the net weight will be as follows: (Net weight when Tare weight cancellation is executed at the time of effective of digital tare weight cancelation) ＝（Gross weight）−（Tare weight compensated value) 7−11.
  • Page 109 7−13. Memory position for setting data and so on The instrument memories each data into RAM and EEPROM as follows: Since the EEPROM is non−volatile, it will be stored almost indefinitely. Also, RAM is charged by battery. Back−up life will be about 10 years when it is stored in the room temperature.
  • Page 110 7−14−1. Operating procedure for the check mode  ● When the “A/Z A” key is pressed with the load display of “FUNC.”, the display will change as the following arrow marks indicate at every time the key is pressed. “FUNC”→“CCAL ”→“ACAL ”→“LCAL ”→“ZERO”→“SPAN”→ “TARE”→“CHECK”→“MONIT”→“F−END”→“FUNC”→...
  • Page 111 Procedures ・ Check on ROM version Press the “ENTER” key. Entering into Check mode, “ROM” will display on the load display. By pressing the “ENTER” key again, ROM version will be appeared on the load display.  In the Check mode, when the indication on the load display shows whichever one in the below, display can be changed with the key operation of “A/Z A”...
  • Page 112 Procedures ・ Check the input signal for external control Press the “ENTER” key. The load display will show “IN”. By pressing the “ENTER” key again, the load display will change “−IN−0”. At this time, ON/OFF condition for external control input signal can be monitored on LED for status display, and on load display section as well.
  • Page 113 Procedures ・ Check on the output signal of open collector Press the “ENTER” key. The load display will show “OUT”. Pressing the “ENTER” key again, indication on the load display will change to “−OUT”. At the same time, each open collector output will vary by the operation of the key shown in the right column and LED of status display will light up as well.
  • Page 114 7−15. Monitor mode In Monitor mode, the applied load on the strain gage applied transducer at present can be displayed with the converted unit of mV/V. For example, when load cell is used, and the output value is unclear, apply actual load in order to read the output value at the time of initial load application and also at the time of the maximum load application by using this function and then make calibration with the value as a base.
  • Page 115 Procedures Press the “ENTER” key. Monitor mode can be entered, and converted value into mV/V for the present input value for the transducer will flashing display on the load display. When quitting from the Monitor mode, press the “ENTER” key. The Measurement mode can be returned and load value will be shown.
  • Page 116 8. Function mode  Warning ● During the Function mode, the instrument suspends measurement. In due course, even when input of strain gage applied transducer may change, various kinds of outputs will not change, which may cause destruction in equipment due to malfunction in peripheral equipments.
  • Page 117 Procedures Press the “ENTER“ key. Contents of setting Function that has selected will be displayed and the digit of 10 will light on and off. Change the setting with the right keys. Suspend the setting of Function mode, then Measurement mode can be returned by pressing the “FUNC.”...
  • Page 118 8−2. List of Function D F−01 Selection of decimal point display position Initial value=00000 00000＝Non 00001＝10 00002＝10 00003＝10 00004＝10 D F−02 Selection of target for display 00000＝Net weight (Interlocked with A/Z.) Initial value＝00000 00001＝Net weight (Interlocked with A/Z.) 00002＝Gross weight ※When “Net weight”...
  • Page 119 D F−07 Setting data width of zero tracking Initial value＝00000 00000＝Zero tracking OFF Setting range ：00000 to 00099 Unit ：0.5D Data width of 49.5D with the setting of “00099”. ※Effective only when the value from 00001 to 00099 is set with the F−08. D F−08 Setting zero tracking time width Initial value＝00020...
  • Page 120 D F−30 Selection of RS−232C baud rate Initial value＝00000 00000＝600 bps 00001＝1 200 bps 00002＝2 400 bps 00003＝4 800 bps 00004＝9 600 bps 00005＝19 200 bps 00006＝38 400 bps D F−31 Setting of data bit length or parity of RS−232C digit ：Data bit length Initial value＝00021 0＝8 bit...
  • Page 121 D F−60 Setting digital Tare weight cancellation value Setting range −99990 to 99990 Initial value＝00000 ※When digital Tare weight cancellation is to be “Effective” with F−59, digital tare weight cancellation for the set portion by this setting can be executed. ※The digital tare weight cancellation will make the following calculation against “Gross weight”...
  • Page 122 D F−98 ZERO clear Zero compensated data by zero set function, compensated data by Tare weight cancellation (A/Z) function and compensated data by zero tracking can be cancelled. When the “ENTER” key is pressed with “F−98” displayed, “ZCLR?” display can be obtained. (At the same time, the display lights on and off.) At this point, press the “FUNC.”...
  • Page 123 9. Trouble shooting When abnormal point(s) is/are found during the operation of the instrument, check by the following procedures. However, when you can’t find applicable item nor you can’t solve the symptom of trouble even after you have taken some measures, contact us. Supply power, again.
  • Page 124 9−1. Execute trouble shooting To execute trouble shooting. Does supply power voltage satisfy the specifications ? Supply power source suitable for specifications. Display is wrong. Open collector output doesn’t operate. External control input doesn’t operate. Connecting method is good. Key operation doesn’t work.
  • Page 125 Displays. Display doesn’t vary. Displays optional values. Display fluctuates abnormally. Apply re−calibration according to OL display section 5. Calibration procedures. −OL display Same situation Make the HOLD input Start of open. measurement HOLD of external  input is used No display when HOLD is shorted at the time of feeding power.
  • Page 126 RUN output doesn’t turn ON. Status display RUN doesn’t light up. Set the CHECK OFF. CHECK is ON. In the mode other than Return the the the Measurement mode Measurement mode. Following causes can be considered. Failure in open collector by ERROR output using other than the rated doesn’t make ON.
  • Page 127 ZERO input doesn’t work A/Z is ON Set the A/Z to OFF A/Z input doesn’t work A/Z OFF input doesn’t work LOCK input doesn’t work HOLD of Set the HOLD input external input open is used Connecting Connect securely method is good according to the paragraph 4−3−2 and 7−7−1.
  • Page 128 Set the LOCK for external LOCk on status display control input open. lights up. Key lock has set with Cancel the key lock with the the Function F−06. Function F−06. HOLD of external Set the HOLD input open. control input is used. Inform us about the contents of failure and situation in details.
  • Page 129 Make connection (wiring) with Connected correctly. external equipments referring to the paragraph 7−2. Adjust the setting related with RS−232C output with the specifications for external connecting equipments. ●F−28 Selection of output target in the stream mode Baud rate and so on ●F−29 Selection of operation mode are set correctly.
  • Page 130 ① Remove the connecting cable from the terminals on the strain gage applied transducer. ② Measure the voltage between terminal A and terminal C on the terminal board after shortening between terminal A and F, and C and G each. ...
  • Page 131 ① Remove the connecting cable from the terminals on the strain gage applied transducer. ② Measure the voltage between terminal A and terminal C after shortening between terminal A and F, and C and G each.  Set the connection range to DC･V for the measuring instrument such as tester and so on.
  • Page 132 ① Remove the connecting cable from the terminals on the strain gage applied transducer. ② Measure the voltage between terminal A and terminal C after shortening between terminal A and F, and C and G each.  Set the connection range to DC･mV for the measuring instrument such as tester and so on.
  • Page 133 9−2. Error display Error code Contents of error Remedy action Execute zero set exceeding ±10 % of ERR−0 Apply zero set after making it within ±10 % of maximum display value. maximum display value. At the time of CHECK ON, zero set or Execute zero set or tare weight cancellation tare weight cancellation is executed.
  • Page 134 10. Specifications 10−1. Specifications for analog DC10 V±0.5 V within 120 mA (DC2.5 V is changeable.) Bridge power supply with remote sensing applied. Up to 4 pieces of strain gage applied transducers(350 Ω) can be Applicable transducers connectable. Input range F.S.
  • Page 135 10−5. Open collector output signal ON during the measurement mode in the instrument ERROR ON during the various kinds of errors occurred. ＝DC30 V , I ＝DC30 mA MAX 10−6. RS−232C interface Specifications ・Selection from 600,1 200,2 400,4 800,9 600,19 200 and 38 400 bps Baud rate ・Selection from 7 bit and 8 bit Data bit length...
  • Page 136 10−10. Accessories Instruction manual 1 piece Midget fuse of 5 A 1 piece Short bars for A−F, C−G 2 pieces Seal for unit 1 piece 10−11. Options 10−11−1. Metal cover CSD−581−P80 Specifications Outline dimensions (L×W×H)：250 mm x140 mm x 38.6 mm (Excludes protrusion.) Weight Approx.
  • Page 137 10−12. Outline dimensions 6−φ4 land□6 CN202 SW207 SW208 Unit：mm Dimensions when the optional metal cover(CSD581−P80) is installed. (37.6) 4−φ6 (195) (31) (24) Unit：mm...
  • Page 138 11. Warranty 11−1. Warranty D The instrument is covered by a warranty for a period of one year from the date of delivery. D As for repairs and/or after service is required during the period of warranty, contact our sales office or sales agency from which you have purchased. 11−2.
  • Page 139 12. Appendix 12−1. Replacement of fuse  Warning ● When installation method for fuse is wrong and/or capacity of installed fuse is inadequate, it causes an unexpected faulty of the instrument. Set OFF the power supply for the instrument. Replace the fuse located at the lower part in the left of the board. CN202 SW208 SW207...
  • Page 140 12−2. Installation/uninstallation procedure of metal cover CSD581−P80(Option) Proceed the installation/uninstrallation of metal cover CSD−581−P80 as follows: 6−bind small screwﾞ M3×10 Cover(with direction) Model：CSD−581−※ 4−Spacer SQ−25 （Accessories） Base(with direction) 6−stud (upon base)
  • Page 141 12−3. Character’s pattern for display The followings are the patterns to show display patterns used at 7 segments display on the instrument.
