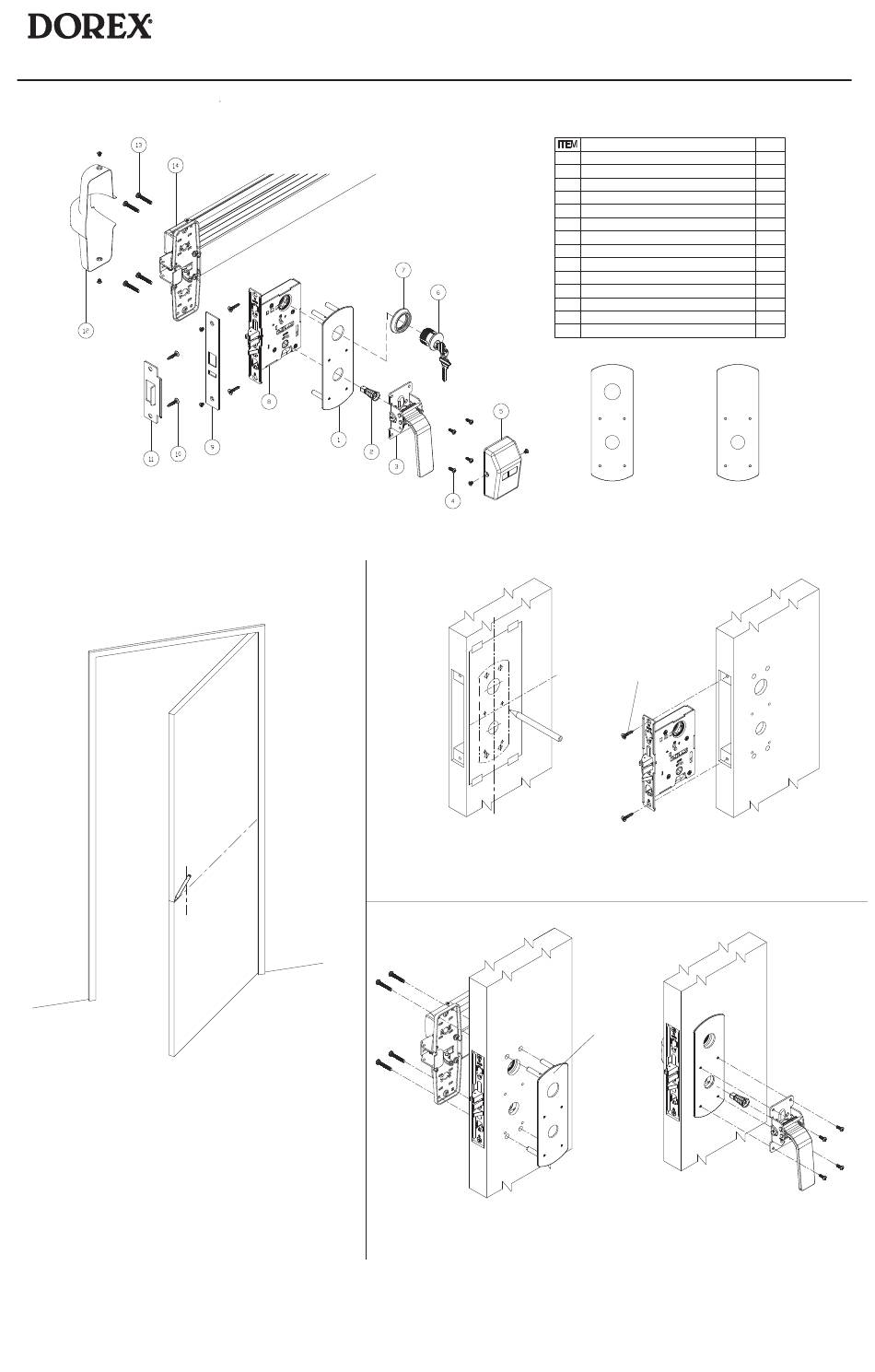

Dorex DX1 THM Installation Instructions

DX1 THM
Pull Latch
X
X
RHR shown
(LHR opposite)
1. Prepare door for exit device. See exit
device instructions for holes, backset
(line X-X), and center lines.
2. Transfer line X-X from inner (exit device)
side of door to outer (trim side) of door.
Be extra careful if edge of door is beveled.
Make sure line X-X is parallel to edge of door.
For Full Plate
selection see
figure on the right
Hinge
Side
L C
Outside
Note:8~14 are sold separately.
X
X
3. Align and stick template onto door, mark position and drill.
4. Install Mortise and fasten with mounting screws.
5. Place Full Plate and Exit device onto door according to product's
installation instructions.
6. Install spindle and Pull Handle Assembly and fasten.
Installation Instructions
DESCRIPTION
1 FULL PLATE
2
SPINDLE
3 PULL HANDLE ASSEMBLY
4 SCREW
5 COVER
6 CYLINDER
7 CYLINDER GUARD
8 MORTISE CASE
9 ARMOR FRONT
10 SCREW
11 STRIKE
12 DEVICE COVER
13 MOUNTING SCREW
14 EXIT DEVICE
For DX1THM08RHR For DX1THM14RHR
DX1THM08LHR DX1THM14LHR
L C
Mounting Screws
Full Plate
QTY
1
1
1
1
1
1
1
1
1
4
1
1
4
1
