BREDABEDS MURPHY BED W/ RIGHT HUTCH Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

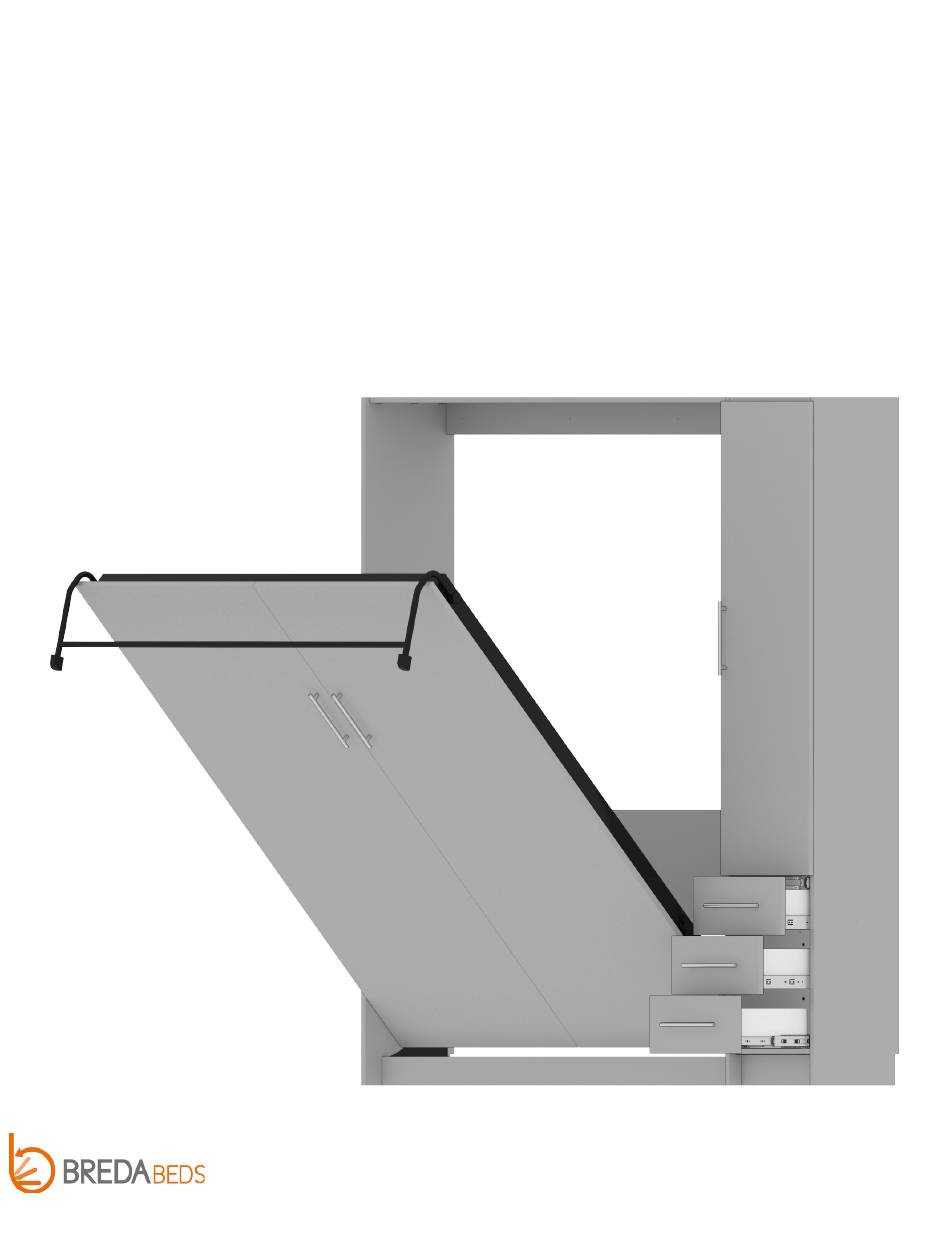

BREDABEDS
MURPHY BED
W/ RIGHT HUTCH
INCLUDING URBAN AND METROPOLITAN COLLECTION MURPHY BEDS
Assembly Instructions
1127 N 39th Street
Nampa, Idaho 83687
/
Parts List
/
Troubleshooting
https://bredabeds.com
Web:
Email:
service@bredabeds.com
1-855-466-4781
Telephone:
/
FAQ
/
Tips
/
Warranty
REVISION: E|3.7
MAY 2020
MB1-HR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MURPHY BED W/ RIGHT HUTCH and is the answer not in the manual?

Questions and answers

Related Manuals for BREDABEDS MURPHY BED W/ RIGHT HUTCH

Summary of Contents for BREDABEDS MURPHY BED W/ RIGHT HUTCH

  • Page 1 BREDABEDS MURPHY BED W/ RIGHT HUTCH INCLUDING URBAN AND METROPOLITAN COLLECTION MURPHY BEDS Assembly Instructions Parts List Troubleshooting Tips Warranty REVISION: E|3.7 https://bredabeds.com Web: MB1-HR 1127 N 39th Street Email: service@bredabeds.com MAY 2020 1-855-466-4781 Nampa, Idaho 83687 Telephone:...
  • Page 2 Thank you for purchasing a BredaBed! THANK YOU! Thank you for your Murphy Bed purchase by BredaBeds! When you’re ready to begin assembly, follow these instructions carefully and be sure not to skip any steps. If you have any trouble during the assembly process, feel free to contact us and one of our specialists will be happy to help guide you through the process.

  • Page 3: Table Of Contents

    WARRANTY POLICY BredaBeds warranties all mechanical hardware for a period of ten (10) years, all wood parts on our products for a period of one (1) year to be free of material or workmanship defects and electronics (such as lights) for a period of ninety (90) days. Warranty periods begin from date of purchase.

  • Page 4: Important Safety Information - Read This First

    Important Safety Information - Read This First SAFETY WARNING READ THIS FIRST Murphy Beds utilize a mechanism to counterbalance weight. The extreme tension of the spring mechanism can be hazardous when safety precautions within these instructions are not followed. Pay special attention when you see any of these boxes: ***SAFETY*** STEP # ***ALERT***...

  • Page 5: Assembly Tips

    Assembly Tips ASSEMBLY TIPS TWO PEOPLE ALLOW YOURSELF VIDEO RECOMMENDED SUFFICIENT TIME INSTRUCTIONS We recommend that When you’re ready Scan the QR Code above with a two people assemble to begin assembly, smartphone to view our products. always give yourself our Murphy Bed Throughout these suffi cient time so that...

  • Page 6: Unpacking Your Bredabed & Frequently Asked Questions

    I have damaged parts on my bed, what do I do? As soon as you do fi nd damage, send us an email at service@bredabeds.com with pictures of the damaged areas, part name(s) (found on the part label), provide your order number and any other additional information.

  • Page 7: Troubleshooting

    Troubleshooting TROUBLESHOOTING The bed doors hit the Toe Kick when opened. The steel frame must be 1/2” back from the Mechanism End. See Chapter 4, Step 3. The bed doors do not hit the top shelf and fall inside of the Bed Cabinet. The steel frame must be 1/2”...

  • Page 8: Parts List: Panels, Hardware Packages & Before You Begin

    Parts List: Panels PARTS LIST: PANELS Bed Cabinet Panel List Door(s)* Hutch Top Shelf Right Hutch, Left Side Hutch Bottom Shelf Right Hutch Right Side Hutch Mid Shelf Bed Cabinet Left side Hutch Adjustable Shelf (Qty 3) Bed Cabinet Top Hutch Toe Kick Bed Cabinet Top Nailer Hutch Top Nailer...
  • Page 9 Parts List: Panels The following parts will depend on your specific hutch configuration. Hutch Top Door Hutch Bottom Door Hutch Top Door Hutch Bottom Door 3 Drawers And Pull-Out Night Shelf Drawer Front 1 (Qty 1) Drawer Back 1 (Qty 1) Drawer Side 1 (Qty 2) Drawer Front 2 (Qty 2) Drawer Back 2 (Qty 2)
  • Page 10 Hardware Packages HARDWARE PACKAGES You will have 3 boxes of hardware, the following images are color-coded for each box: • Orange outline: Hardware can be found inside the small white or brown box. • Grey outline: Hardware can be found inside the long box “Steel Bed Frame”. •...
  • Page 11 Before You Begin Installation tools that are required Cordless Drill or Impact Driver #2 Phillips Screwdriver #2 and #3 Phillips bit Stud Finder Drill Bit Set Socket Set Level 1/2” Wrench or Adjustable wrench Tape Measure Ladder or Step Stool Rubber Mallet Gloves (Optional) UNDERSTANDING CAM FITTINGS...

  • Page 12: Chapter 1: Hardware Insertion

    Chapter 1: Hardware insertion. Chapter 1: Hardware insertion. REQUIRED TOOLS REQUIRED HARDWARE • Hardware Packages #1, #6 & #20 • Rubber Mallet • Hardware Package #2 (mech. box) • Cordless Drill with #2 Phillips • Hardware Packages (depending • #2 Phillips screwdriver on hutch config.) #12 &...
  • Page 13 Chapter 1: Hardware insertion. Follow this step depending on the hutch configuration ordered. Hutch Doors: Attach hinge plates from hardware package #16 as shown in Fig. 1B using the screws on hinge plate. The front Hutch Options of the hinge plates attach exactly 3/4” from the front side of STEP 2 the panel.
  • Page 14 Chapter 1: Hardware insertion. FIG. 1C Right Hutch STEP 3 Left Side Referring to Fig. 1C, insert male/female screws from hardware package #20 in holes marked with a blue circle (male end inserts from one side of the panel and the female inserts from opposite side, then they tighten together).
  • Page 15 Chapter 1: Hardware insertion. Referring to Fig 1D, lay panels on floor and insert cam screws from STEP 4 hardware package #1 in holes marked with a circle using a cordless drill. FIG. 1D Right Hutch Right Hutch Left Side Right Side 27”...
  • Page 16 Hardware Package #1 in the hole marked with a circle using a cordless drill. BredaBeds Murphy Beds are designed for a mattress thickness of 11” or under, however Headboard AB/BA area is adjustable for mattress thicknesses greater than 11”...
  • Page 17 Chapter 1: Hardware insertion. FIG. 1F Right Hutch STEP 6 Left Side Left Side Attach each mechanism to the face of the side panels as shown in Fig. 1F using qty 6 30mm bolts and qty 6 nylock nuts found in Hardware Package The Bolts will go in from the opposite...
  • Page 18 Chapter 1: Hardware insertion. There are 9 Spring FIG. 1H locations. Referring to the STEP 8 spring application chart and Fig. 1H-1K, insert springs into the hole numbers noted for the amount of springs you will be using. Position the spring with the open side of the hook facing down as shown in green.
  • Page 19 Chapter 1: Hardware insertion. Referring to Fig. 1L, lay parts on floor and insert cam screws from hardware package #1 in holes marked with a circle STEP 9 using a cordless drill (see note at the bottom of this page). Insert cam fittings from hardware package #6 in holes marked with a green...

  • Page 20: Chapter 2: Bed Cabinet Assembly

    Chapter 2: Bed Cabinet assembly. Chapter 2: Bed Cabinet assembly. REQUIRED TOOLS: #2 Phillips screwdriver In the following steps, you’ll assemble the bed on the floor, then tilt the Bed OVERVIEW: Cabinet up. To do this, you’ll need at least 3 extra inches of height clearance. If the height of your room is shorter than this, you’ll have to assemble the Bed Cabinet vertically.
  • Page 21 Chapter 2: Bed Cabinet assembly. Lower “Bed Cabinet Top Nailer” onto “Bed Cabinet Top” as shown and tighten cam fitting using a #2 Phillips screwdriver. STEP 3 Note: Make sure cam fittings are facing toward and aligned to this back edge of the “Bed Cabinet Top” as illustrated below. Reverse the top nailer if the edges don’t align (the cams are offset to one side).
  • Page 22 Chapter 2: Bed Cabinet assembly. FIG. 2E STEP 5 Slide hutch in direction of arrow and tighten all cam fittings. FIG. 2F STEP 6 Attach “Headboard” as shown and tighten cam fittings. The Headboard will normally sit at a slight angle.
  • Page 23 Cam fittings on the Bed Cabinet Top should face down and WILL be • visible from below. If any of these parts are backwards, they must be flipped around. If you have any question, contact us (phone: 1-855-466-4781, email: service@bredabeds.com or live chat: https://bredabeds.com) before proceeding.

  • Page 24: Chapter 3: Attaching The Bed Cabinet To The Wall

    Chapter 3: Attaching the Bed Cabinet to the wall. Chapter 3: Attaching the Bed Cabinet to the wall. REQUIRED TOOLS REQUIRED HARDWARE • Cordless Drill and/or Impact Driver • Hardware Package #2 • #2 & #3 Phillips Bit • Hardware Package #10 •...
  • Page 25 Chapter 3: Attaching the Bed Cabinet to the wall. FIG. 3A - DRYWALL CUTAWAY SHOWING WALL STUDS STEP 2 Using a stud finder, locate and mark the exact center of each stud (see page 7 if you have 3 or less stud locations) along the “Bed Cabinet Top...
  • Page 26 Troubleshooting section on Page 7. DO NOT attempt to proceed if the “Bed Cabinet Top Nailer” is damaged or cracked. Contact BredaBeds for a replacement. If you purchased a wired or wireless light kit with your bed, you can follow...
  • Page 27 Chapter 3: Attaching the Bed Cabinet to the wall. Attach the “Top Nailer Cover” using the 1-1/4” screws from Hardware Package #10 through the pre-drilled holes in the STEP 5 cover piece. One side of the cover has recessed holes which is the front and one edge is finished which is the bottom.

  • Page 28: Chapter 4: Assembling The Bed Face Panel Unit

    Chapter 4: Assembling the Bed Face Panel unit. Chapter 4: Assembling the Bed Face Panel unit. REQUIRED TOOLS REQUIRED HARDWARE • Hardware package #3 • Cordless Drill and/or Impact Driver • Hardware package #7 • 5/16” Socket • #2 Phillips Screwdriver •...
  • Page 29 Chapter 4: Assembling the Bed Face Panel unit. For video instructions of this specific chapter, visit: breda.us/frame Lay the metal frame pieces on top of the bed doors with the wider flange facing down towards the bed doors. Use the STEP 2 hardware from hardware package #3 for the following: LEG END CORNERS: Referring to Fig.
  • Page 30 Chapter 4: Assembling the Bed Face Panel unit. For video instructions of this specific chapter, visit: breda.us/frame Position the frame 1/2” from FIG. 4G - OVERHEAD VIEW “Mechanism End” and centered STEP 3 along the left and right sides. Attach frame to doors using Critical Step screws from hardware package #7.
  • Page 31 Review Chapter 4, Step 2, Fig 4C and Fig 4D Is the work area clear of children & pets? If you have any question, contact us (phone: 1-855-466-4781, email: service@ bredabeds.com or live chat: https://bredabeds.com) before proceeding.

  • Page 32: Chapter 5: Attaching The Bed Face Panel To The Bed Cabinet

    Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. REQUIRED TOOLS REQUIRED HARDWARE • 1/2” Socket • Hardware package #2 • 1/2” Wrench For video instructions of this specific chapter, visit: breda.us/face FIG.
  • Page 33 Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. For video instructions of this specific chapter, visit: breda.us/face The bolts for Holes #1, #2 and #3 will all attach from the outside of the frame. In other words, the bolt heads will be on the outside of the frame and the nuts will go on the inside of the frame for all three of the holes.
  • Page 34 Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. For video instructions of this specific chapter, visit: breda.us/face FIG. 5C - LOOKING THROUGH LEFT SIDE FIG. 5D - LOOKING THROUGH LEFT SIDE 1. Referring to Fig. 5C, stand the Bed Face Panel in vertical position between the mechanism arms, lifting until the bolt in STEP 4 Hole #3 drops in the slotted portion of each mechanism arm.

  • Page 35: Chapter 6: Installing The Handles, Leg Support And Mattress

    Chapter 6: Installing the handles, leg support and mattress. Chapter 6: Installing the handles, leg support and mattress. REQUIRED TOOLS REQUIRED HARDWARE • Cordless Drill w/ #2 Phillips bit • Hardware Package #4 • 7/16” Socket • Hardware Package #5 (Optional) •...
  • Page 36 Chapter 6: Installing the handles, leg support and mattress. Referring to Fig. FIG. 6C - LEG ASSEMBLY, RIGHT SIDE 6A and using STEP 5 the washers and 5/16” Nylock nuts from Hardware Package #4, install legs with the washers in order as shown (3 1/4”...

  • Page 37: Chapter 7: Final Adjustment For The Bed Cabinet And Springs

    Bed Cabinet Top Nailer from the wall. Prior to doing this, measure how far and in what direction the bed cabinet needs to shift in order to achieve alignment. If you have any question, contact us (phone: 1-855-466-4781, email: service@bredabeds.com or live chat: https://bredabeds.com) before doing anything.
  • Page 38 Chapter 7: Final adjustment for the Bed Cabinet and springs. To determine the proper tension, the mattress needs to be in place. The face assembly should raise and lower with about STEP 2 10 pounds of pressure and bed legs should rest on the floor without lifting when bed is open.

  • Page 39: Chapter 8: Installing Side Hutch Options And Finishing Up

    Chapter 8: Installing side hutch options and finishing up. Chapter 8: Installing side hutch options and finishing up. REQUIRED TOOLS Follow the steps in this • Rubber Mallet chapter depending on how the • Cordless Drill with #2 Phillips Side Hutch was configured. •...
  • Page 40 Chapter 8: Installing side hutch options and finishing up. Using screws from hardware package #13, attach the inner 3 Drawers And portion of the drawer slide (from the previous step) to bottom Night Shelf of drawer box, with front of slide pushed against back side of STEP 4 drawer front.

  • Page 41: Chapter 9: How To Disassemble The Bed For Moving

    Chapter 9: How to disassemble the bed for moving. Chapter 9: How to disassemble the bed for moving. REQUIRED TOOLS ESTIMATED TIME • Cordless Drill with #2 Phillips 30 Minutes • 1/2 Wrench or Adjustable Pliers Note: This is an average time only, yours may vary.
