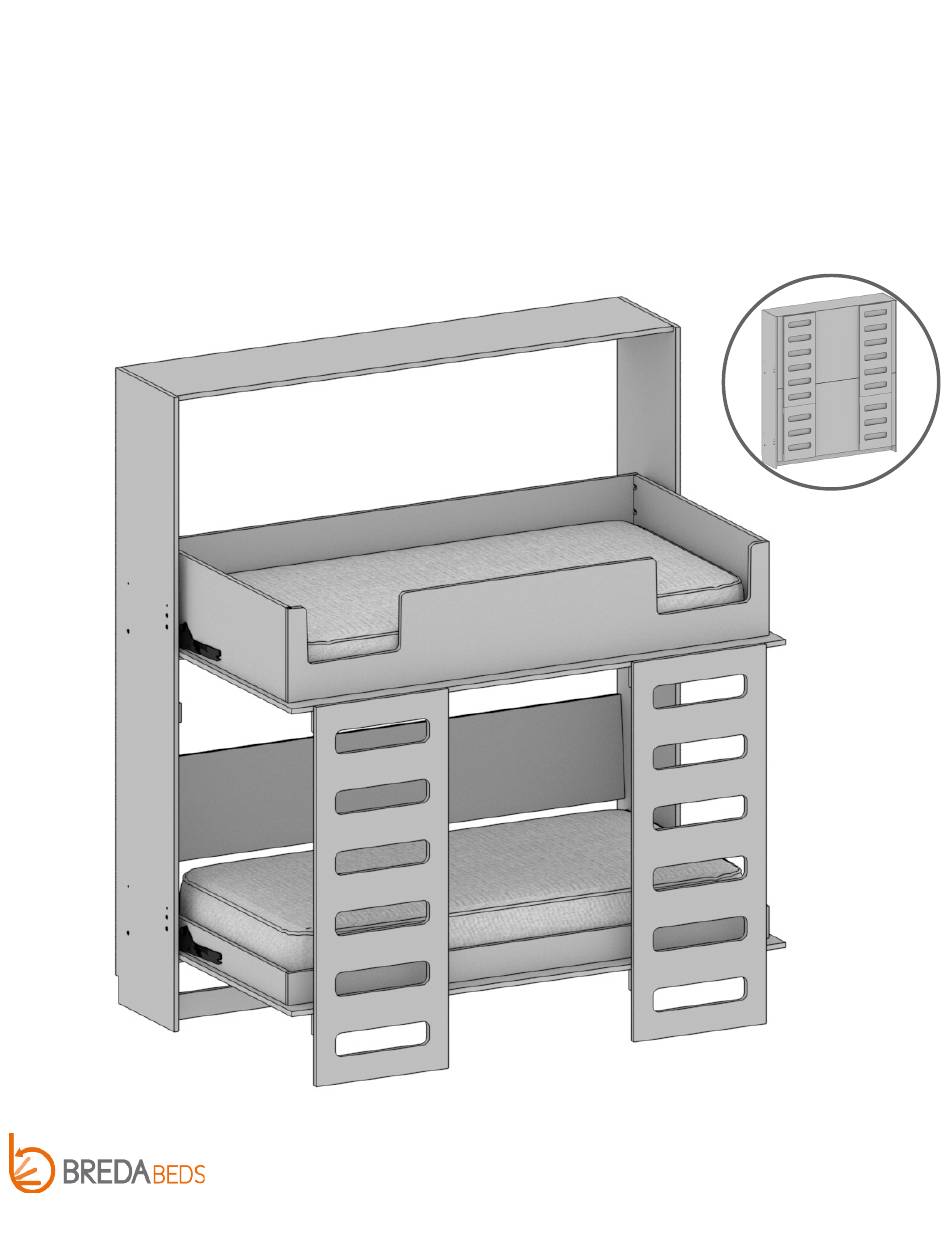

- Page 1 URBAN STACK BUNK BED Assembly Instructions Parts List Troubleshooting Tips Warranty REVISION: B2|3.7 https://bredabeds.com Web: URB-SB 1127 N 39th Street Email: service@bredabeds.com MAY 2020 1-855-466-4781 Nampa, Idaho 83687 Telephone:...
- Page 2 Thank you for purchasing a BredaBed! THANK YOU! Thank you for your Murphy Bed purchase by BredaBeds! When you’re ready to begin assembly, follow these instructions carefully and be sure not to skip any steps. If you have any trouble during the assembly process, feel free to contact us and one of our specialists will be happy to help guide you through the process.
-
Page 3: Table Of Contents
WARRANTY POLICY BredaBeds warranties all mechanical hardware for a period of ten (10) years, all wood parts on our products for a period of one (1) year to be free of material or workmanship defects and electronics (such as lights) for a period of ninety (90) days. Warranty periods begin from date of purchase. -
Page 4: Important Safety Information - Read This First
Important Safety Information - Read This First SAFETY WARNING READ THIS FIRST Murphy Beds utilize a mechanism to counterbalance weight. The extreme tension of the spring mechanism can be hazardous when safety precautions within these instructions are not followed. Pay special attention when you see any of these boxes: ***SAFETY*** STEP # ***ALERT***... -
Page 5: Assembly Tips
Assembly Tips ASSEMBLY TIPS TWO PEOPLE ALLOW YOURSELF VIDEO RECOMMENDED SUFFICIENT TIME INSTRUCTIONS We recommend that When you’re ready Scan the QR Code above with a two people assemble to begin assembly, smartphone to view our products. always give yourself our Murphy Bed Throughout these suffi cient time so that... -
Page 6: Unpacking Your Bredabed & Frequently Asked Questions
I have damaged parts on my bed, what do I do? As soon as you do fi nd damage, send us an email at service@bredabeds.com with pictures of the damaged areas, part name(s) (found on the part label), provide your order number and any other additional information. -
Page 7: Troubleshooting
Troubleshooting TROUBLESHOOTING The bed doors hit the Toe Kick when opened. This can happen for several different reasons: The most common scenario happens before the bolt in hole B has been • inserted. Before the bolt in hole B is inserted, the bed doors are pivoting on the bolt in hole A, then once that bolt is inserted and tightened, the doors will fully be attached to the mechanism arms, changing the pivot point further back inside the Bed Cabinet. -
Page 8: Parts List: Panels, Hardware Packages & Before You Begin
Parts List: Panels PARTS LIST: PANELS Bed Cabinet Panel List Bed Cabinet Left Side Bottom Bunk Left Rail Top Bunk Front Rail Bed Cabinet Right Side Bottom Bunk Right Rail Top Bunk Back Rail Stop Block (Qty 2) Bed Cabinet Top Top Bunk Left Rail Panel Substrate A (Qty 4) Bed Cabinet Top Nailer... - Page 9 Hardware Packages HARDWARE PACKAGES You will have 2 boxes of hardware, the following images are color-coded for each box: • Orange outline: Hardware can be found inside the small white or brown box. • Blue outline: Hardware can be found inside the box “Spring Closure Assembly”. Package #1 Card #2 Package #6...
- Page 10 Before You Begin Installation tools that are required Cordless Drill or Impact Driver #2 Phillips Screwdriver #2 and #3 Phillips bit Stud Finder Drill Bit Set Socket Set Level 1/2” Wrench or Adjustable wrench Tape Measure Ladder or Step Stool Rubber Mallet Gloves (Optional) UNDERSTANDING CAM FITTINGS...
-
Page 11: Chapter 1: Hardware Insertion
Chapter 1: Hardware insertion. Chapter 1: Hardware insertion. REQUIRED TOOLS REQUIRED HARDWARE • Hardware Package #1 (white box) • Rubber Mallet • Hardware Card #2 (mech. box) • Cordless Drill with #2 Phillips • Hardware Package #6 (white box) • 1/2” Socket •... - Page 12 Chapter 1: Hardware insertion. There are 9 Spring FIG. 1C locations. Referring to the STEP 3 spring application chart and Fig. 1C-1F, insert springs into the hole numbers noted for the amount of springs you will be using. Position the spring with the open side of the hook facing down as shown in green and hook it...
- Page 13 Chapter 1: Hardware insertion. Referring to Fig. 1G, lay parts on floor and insert cam screws from Hardware Package #1 in holes marked with a circle STEP 4 using a cordless drill. Insert cam fittings from Hardware green Package #6 in holes marked with a circle using a rubber mallet.
- Page 14 Chapter 1: Hardware insertion. Referring to Fig. 1H, lay parts on floor and insert cam screws from Hardware Package #1 in holes marked with a circle STEP 5 using a cordless drill and insert cam fittings from Hardware green Package #6 in holes marked with a circle using a rubber mallet.
-
Page 15: Chapter 2: Bed Cabinet Assembly
Chapter 2: Bed Cabinet assembly. Chapter 2: Bed Cabinet assembly. REQUIRED TOOLS: #2 Phillips screwdriver In the following steps, you’ll assemble the Bed Cabinet on the floor, OVERVIEW: then once assembled, tilt the Bed Cabinet up. To do this, you’ll need at least 3 extra inches of height clearance. - Page 16 Chapter 2: Bed Cabinet assembly. FIG. 2C STEP 3 Slide “Bed Cabinet Left Side” in direction of arrow and tighten all cam fittings. FIG. 2D STEP 4 Attach “Headboard” and both “Bottom Nailers” as shown and tighten cam fittings. The Headboard will normally sit at a slight angle.
- Page 17 Cam fittings on the Bed Cabinet Top should face down and WILL be • visible from below. If any of these parts are backwards, they must be flipped around. If you have any question, contact us (phone: 1-855-466-4781, email: service@bredabeds.com or live chat: https://bredabeds.com) before proceeding.
-
Page 18: Chapter 3: Attaching The Bed Cabinet To The Wall
Chapter 3: Attaching the Bed Cabinet to the wall. Chapter 3: Attaching the Bed Cabinet to the wall. REQUIRED TOOLS REQUIRED HARDWARE • Hardware Package #10 • Cordless Drill and/or Impact Driver • #3 Phillips Bit • 3/16” Drill Bit •... - Page 19 Chapter 3: Attaching the Bed Cabinet to the wall. FIG. 3A - DRYWALL CUTAWAY SHOWING WALL STUDS STEP 2 Using a stud finder, locate and mark the exact center of each stud (see page 7 if you have 3 or less stud locations) along the “Bed Cabinet Top...
- Page 20 See the Troubleshooting section on Page 7. DO NOT attempt to proceed if the “Bed Cabinet Top Nailer” is damaged or cracked. Contact BredaBeds for a replacement. “Bed Cabinet Bottom Nailers” will be attached later (Chapter 5, Step 3).
-
Page 21: Chapter 4: Installing Top/Bottom Bunks
Chapter 4: Installing Top/Bottom Bunks. Chapter 4: Installing Top/Bottom Bunks. REQUIRED TOOLS REQUIRED HARDWARE • #2 Phillips screwdriver • Hardware Card #2 • 1/2” Socket & Wrench • Hardware PKG #9, #17, #27 & #29 FIG. 4A STEP 1 Begin by laying out the rail parts for the Top Bunk in front of the Bed Cabinet wall unit. - Page 22 Chapter 4: Installing Top/Bottom Bunks. FIG. 4C STEP 3 Lay the top door on a soft surface (blanket, carpet, rug, etc.) with the cam screws face up, then lay the bunk unit onto the door. Tighten all connecting cam fittings. The holes are offset closer to the back edge/...
- Page 23 Is the work area clear of children & pets? If you have any question, contact us (phone: 1-855-466-4781, email: service@ bredabeds.com or live chat: https://bredabeds.com) before proceeding. For video instructions of these steps, visit: breda.us/face Slide the PVC tube FIG.
- Page 24 Chapter 4: Installing Top/Bottom Bunks. The bolts for Holes A and B will attach from the inside of the panel/frame. In other words, the bolt heads will be on the inside of the panel/frame and the nuts will go on the outside of the panel/frame. Referring to Fig.
- Page 25 Chapter 4: Installing Top/Bottom Bunks. FIG. 4I STEP 8 Repeat 1-4 in this chapter to make the Bottom Bunk and review the safety checklist. Substrate pieces should face down and tighten from the bottom. Install “Stop Blocks” on the FIG. 4J inside of the Bed Cabinet (shown STEP 9 in red in Fig.
-
Page 26: Chapter 5: Final Assembly And Adjustment
Chapter 5: Final assembly and adjustments. Chapter 5: Final assembly and adjustments. REQUIRED TOOLS REQUIRED HARDWARE • Cordless Drill • Hardware Card #2 • Hardware Card #28 • Mattress Strap • With 2 people and the Bottom Bunk in the closed position, open the Top Bunk 90 degrees. - Page 27 Chapter 5: Final assembly and adjustments. Check that the bunk doors have equal clearance top to bottom on the left and right sides. If the Bed Cabinet is STEP 3 leaning to one side, nudge it at the floor level. E.g., if there is a wider gap along the top-left and bottom-right sides, move the bottom of the Bed Cabinet to the left to equalize the side reveals.
- Page 28 Chapter 5: Final assembly and adjustments. The labels/stickers can now be removed from all parts. We use EZ peel-off labels for quick and residue free removal. STEP 7 DO NOT remove the warning label on the “Bed Cabinet Top Nailer”. The parts can be wiped clean with a damp cloth.
-
Page 29: Chapter 8: How To Disassemble The Bed For Moving
Chapter 6: How to disassemble the bed for moving. Chapter 6: How to disassemble the bed for moving. REQUIRED TOOLS ESTIMATED TIME • Cordless Drill with #2 Phillips 30 Minutes • 1/2 Wrench or Adjustable Pliers Note: This is an average time only, yours may vary.
