Tilt 'N Plug Jr. Interconnect Box
Welcome!
We greatly appreciate your purchase of your Tilt 'N Plug Jr. (TNP JR.)
Interconnect Box. We are sure you will find it reliable and simple to use.
Superior performance for the right price, backed by solid technical and
customer support is what ALTINEX has to offer.
We are committed to providing Signal Management Solutions
to our customers for the most demanding audiovisual installations at
competitive pricing and we welcome you to join the ranks of our many
satisfied customers throughout the world.

1. Precautions and Safety Warnings

Please read this manual carefully before using your Tilt 'N Plug Jr.
Interconnect Box. Keep this manual handy for future reference. These safety
instructions are to ensure the long life of your Tilt 'N Plug Jr. and to prevent
fire and shock hazards. Please read them carefully and heed all warnings.
1.1 General
• Unauthorized personnel shall not open the unit as there are high-voltage
components inside.
• Qualified ALTINEX service personnel or their authorized representatives
must perform all service.
1.2 Installation Precautions
• For best results, place the Tilt 'N Plug Jr. in a dry area away from dust.
• To prevent fire or shock, do not expose this unit to water or moisture. Do
not place the unit in direct sunlight, near heaters or heat-radiating
appliances, or near any liquid. Exposure to direct sunlight, smoke, or
steam can harm internal components.
• Handle the Tilt 'N Plug Jr. carefully. Dropping or jarring can damage the
bezel.
• Never place fingers inside the opening on either side of the unit. This
action could cause injury due to sharp edges inside.

2. Installation Procedures

Step 1.
Cut an opening into the table's surface. Refer to the ALTINEX website at
Note:
The table can be 2.25" or less in thickness. Always confirm dimensions before cutting to insure that specifications have not changed.

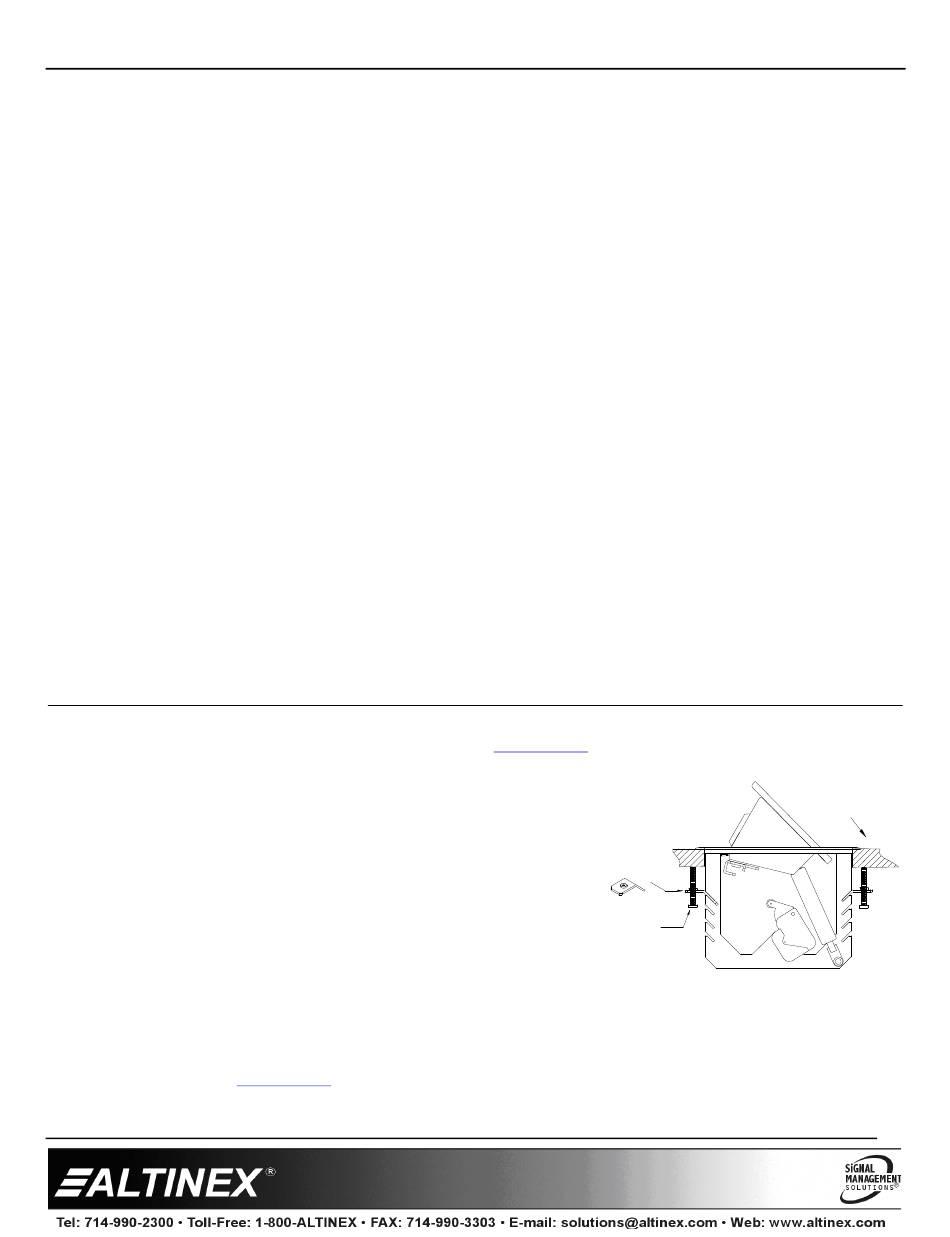

Step 2.
Insert the Tilt 'N Plug Jr. into the table cutout.
Step 3.
Place the support brackets under the table between the support mount grooves on the side
of the Tilt 'N Plug Jr. Attach the brackets to the groove at the desired height and secure
them to the bottom of the table using the thumb screws provided.
Step 4.
Secure the cables by using the provided cable clamps and screws included with the unit.
Pass the power cord from the bottom of the housing and attach it to the table using the
cable clamp and screw supplied with the Tilt 'N Plug Jr.
Leave enough slack in the service loop to allow for easy opening and closing, but not too
much as to cause excess drooping of the service loop.
Step 5.
Connect the appropriate cables with the correct input connectors on the bottom of the unit.
Step 6.
Once you have applied power and connected the proper cables on the bottom of the unit
you may raise the unit. To raise the Tilt 'N Plug Jr. into position, push down on the front of the top cover; the latching mechanism will then release,
allowing the pneumatic spring to raise it into position.
Step 7.
To lower the unit, push on the top of the Tilt 'N Plug Jr. until it locks into place.

3. Limited Warranty/Return Policies

Please see the ALTINEX website at
400-0434-010
®
www.altinex.com
for details on warranty and return policies.
• Do not place heavy objects on top of the Tilt 'N Plug Jr. Do not use
excessive force to push down on the top of the unit.
• Disconnect the power cord to turn off the power. This supplies power to
the socket on the pop-up panel. The power outlet should be installed
near the equipment and be easily accessible.
• We recommend using wall outlets with a Ground Fault Circuit
Interrupter (GFCI) for maximum protection.
• Install all cables according to the instructions found herein. Do not force
or pull any cable that is attached to the Tilt 'N Plug Jr.
1.3 Cleaning
• Surfaces should be cleaned with a dry cloth. Never use strong detergents
or solvents such as alcohol or thinner. Do not use a wet cloth or water to
clean the unit.
1.4 FCC Notice
• This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
• This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions found herein, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his expense.
• Any changes or modifications to the unit not expressly approved by
ALTINEX, Inc. could void the user's authority to operate the equipment.
www.altinex.com
for table cutout requirements.
Support
Brackets (2)
Table
Securing
Screws (2)
1
User's Guide
Tabletop
