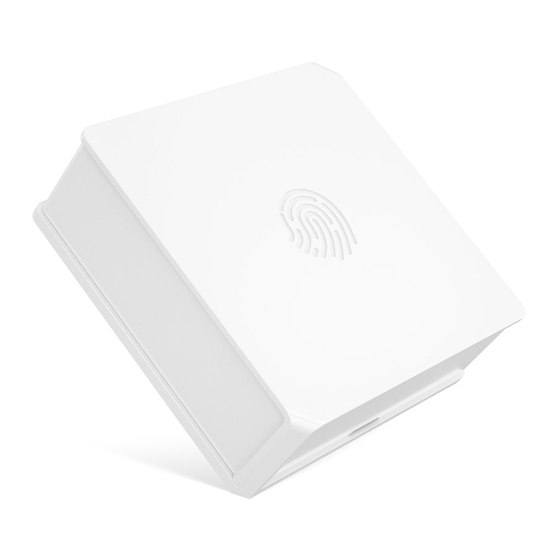

- Page 1 SNZB-01 User manual V 1.0 Wireless Switch 中文-------1-6 English-------7-12...
- Page 2 本设备需要连接SONOFF ZigBee网关进行智能 操作，可与其他产品互联互通。 设备支持其他无线协议为ZigBee 3.0的网关，具体 以实际产品为准。 取出电池绝缘片 > 使用说明 1. 下载APP eWeLink eWeLink...
- Page 3 2. 添加子设备 添加子设备前，请先连接网关。 ZBBridge 已添加设备:0 暂无子设备，请添加 > CR2450 添加 打开eWeLink APP，选择要连接的网关，点击 "添加" 子设备，然后长按设备 "RST" 重置按钮 5秒直至LED指示灯闪烁3下，设备进入配对状态， 等待设备连接。 注意：如添加失败，请将设备移近网关后再重新 添加。...
- Page 4 SONOFF ZigBee网关支持同时连接 多个子设备 添加设备 ZBBridge 正在连接 已添加设备:0 请让设备尽量靠近网关 暂无子设备，请添加 > 添加 找到设备 3个设备 已找到 先将网关通电，打开eWeLink APP网关页面， 点击添加，然后设置让所需配对的子设备进入 配对状态，等待设备连接。...
- Page 5 安装方法 方法1：直接放置桌面使用。 方法2：撕下3M胶保护膜，粘贴在所需区域即可 注意：请勿安装在金属表面，否则会影响无线通讯距离。...
- Page 6 产品参数 产品型号 SNZB-01 电池型号 CR2450 工作电压: 3V 无线连接: ZigBee (IEEE 802.15.4) 工作温度: -10-40℃ 工作湿度:10-90%RH(无冷凝) 外壳材料: PC 产品规格: 43x43x16mm 产品介绍 开关按键 重置按钮 LED指示灯 CR2450...
- Page 7 产品特点 SNZB-01是一款低功耗遥控无线开关，可任意 移动位置，即贴即用，还可通过添加场景联动 设置控制其他设备。 低功耗 场景联动 电量低消息推送 按键动作 用户可根据需要选择单击、双击或者长按让设备 执行设置的指令。 删除子设备 长按子设备重置按钮5秒直到LED指示灯闪烁3 下，此时子设备已在网关中删除。 CR2450 提醒：用户还可在APP子设备界面中删除子设备。...
- Page 8 The device can be operated intelligently via working with the SONOFF ZigBee Bridge to communicate with other devices. The device can work with other gateways supporting ZigBee 3.0 wireless protocol. Detailed information is in accordance with the final product. Pull out the battery insulation sheet >...
- Page 9 2. Add sub-devices Connect the Bridge before adding the sub-device ZBBridge Added:0 No child device,please add. > CR2450 Access eWeLink APP, select the Bridge that you want to connect, and tap “Add” to add a sub-device. Then long press “RST” reset button on the device for 5s until the LED indicator flashes three times, which means the device has entered the pairing mode, and be patient until pairing completes.
- Page 10 SONOFF ZigBee Bridge supports connecting multiple sub-devices at the same time. ZBBridge Add Device Connecting Added:0 Keep the device close enough to the hub. No child device,please add. > Looking for device 3 devices Found Power the Bridge on, access the Bridge page in the eWeLink APP, and tap “Add”.
-
Page 11: Installation Methods
Installation methods Placed on the desktop for use. Tear off the protective film of the 3M adhesive and stick the device on the desired area. Do not install on the metal surface, otherwise it will affect the wireless communication distance. -
Page 12: Specifications
Specifications Model: SNZB-01 Battery model : CR2450 Working voltage : 3V Wireless connection : ZigBee (IEEE 802.15.4) : -10-40℃ Working temperature Working humidity: 10-90%RH (non-condensing) Material: PC Dimension: 43x43x16mm Product Introduction Reset button LED indicator CR2450 Manual switch... - Page 13 Features SNZB-01 is a ZigBee low-energy wireless switch that allows you to move to any place. Peel and stick. Connect it with the Bridge and you can create a smart scene to trigger other devices. Low-energy Low battery notification Smart scenes...
- Page 14 FCC Statement FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
