ASSEMBLY INSTRUCTIONS
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
show the degree of effort needed in assem-
bling a specific product (with 1 being easy and
5 being difficult). For most products, two per-
sons are recommended.
EASY
YNJ-1409
TOOLS REQUIRED FOR ASSEMBLY
Phillips Screwdriver
Hammer
DIFFICULT
Page 1 of 10
(Not Included)
(Not Included)
2 PERSONS RECOMMENDED
14-11-07
Advertisement
Related Manuals for Furniture of America YNJ-1409
Summary of Contents for Furniture of America YNJ-1409
- Page 1 ASSEMBLY INSTRUCTIONS YNJ-1409 ASSEMBLY RATING TOOLS REQUIRED FOR ASSEMBLY Phillips Screwdriver The Assembly Rating is a 5-point system that show the degree of effort needed in assem- (Not Included) Hammer bling a specific product (with 1 being easy and 5 being difficult). For most products, two per- sons are recommended.
- Page 2 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
- Page 3 Page 3 of 10...
- Page 4 PRE-ASSEMBLY INTRODUCTION Unless you are particularly adept at assembling flat-pack/knock-down furniture, we understand building ready-to-assemble furniture can be a frustrating experience for some. To help avoid confusion and to make the assembly process quicker and smoother, we have provided some helpful tips.
- Page 5 CAM LOCK FASTENER ASSEMBLY INSTRUCTIONS Page 5 of 10...

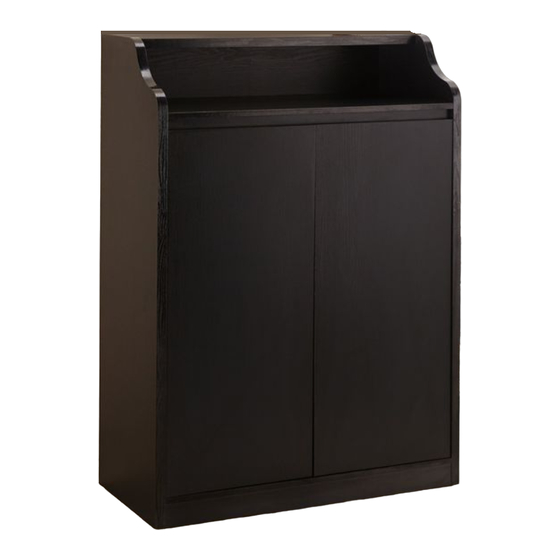

- Page 6 SHOE CABINET ASSEMBLY INSTRUCTIONS MODEL # YNJ-1409 Please keep for future reference PARTS LIST 2PCS DIMENSIONS 33.47”(W) X 15.85”(D) X 47.24”(H) 4PCS Before you begin, please read “Assembly and Care Advice”, “Pre- Assembly Introduction” and “Cam Lock Fastener Assembly Instructions”.
- Page 7 ASSEMBLY INSTRUCTIONS STEP1 Hardware #1 = 16pcs Hardware #3 = 4pcs Hardware #9 = 8pcs STEP2 Hardware #2 = 22pcs After inserting wood dowels (HW #2) into the panels, assemble Part #J onto Part #B and assemble two Part #I onto Part #E. Page 7 of 10...
- Page 8 ASSEMBLY INSTRUCTIONS STEP3 Hardware #8 = 16pcs STEP4 Hardware #4 = 16pcs Page 8 of 10...
- Page 9 ASSEMBLY INSTRUCTIONS STEP5 Hardware #9 = 8pcs STEP6 Hardware #5 = 40pcs Hardware #6 = 4pcs ⑥ With the help of another person, carefully place the unit upright. Make sure the unit is rested on a flat surface and does not feel loose or wobbly. If it does, double check all bolts/screws are secured and properly tightened.
-
Page 10: Hinge Adjustment
HINGE ADJUSTMENT Height Adjustment Two screws, located at the top and bottom of the hinge, mount the hinge to the cabinet. Turn these first to make sure the door is secure. If the door is still too high or low, loosen these screws slightly and then lift or lower the door until it is in the position you want.
