- Page 1 2-wire Intercom System Spacetronik SPD-D1M1 USER MANUAL Please read this manual carefully before using the product.
-
Page 2: Part Names

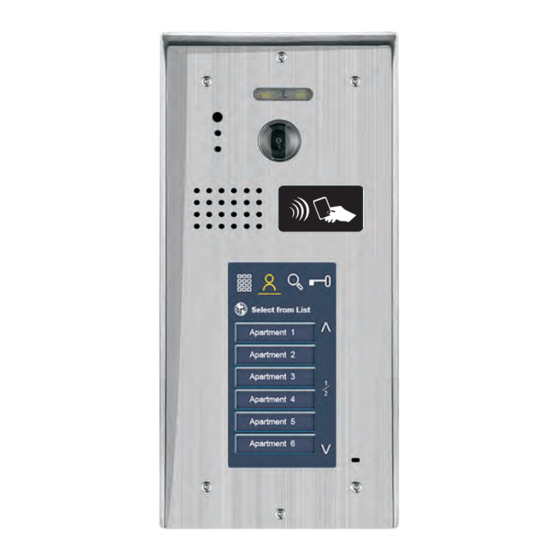

Before Using Part Names Outdoor station TF card port Name & description Infrared induction Green light on when unlocking Blue light on when calling Fill-in flash and light sensor Camera Speaker IC card swiping area Touch screen Microphone TF card port... -
Page 3: Parts And Functions
Before Using Parts and Functions 115mm (3 8in) 55mm (1 8in) Mounting Drill a hole and attach the rain Attach the unit to the rain cover The last view for all mounting cover to it correctlly... -
Page 4: Terminal Description
Before Using Terminal Description LOCK NC COM GND GND OPEN SIP1 BUS: (L1, L2) non-polarity bus line CAM: Extra camera connection port LOCK: Electronic lock connection port VOL: Volume adjustor DIP: DIP switches for system configurations. SIP1: Door lock jumper Multi door station ID=000 ID=100... - Page 5 Before Using Code=12 Code=11 OFF ON 1 2 3 4 5 1 2 3 4 5 Code=10 Code=9 1 2 3 4 5 1 2 3 4 5 Code=4 Code=3 OFF ON 1 2 3 4 5 1 2 3 4 5 Code=2 Code=1 1 2 3 4 5...
- Page 6 Before Using User Interface Operation Screens Home page is the first page when outdoor station stand-by. When outdoor station standby to start, there is no image show on the screen, you need to click any places of the screen, outdoor station will be activated, home page is the first page after outdoor station activated.
- Page 7 Before Using User Interface Operation Screens Home page Description Digital call screen Name list call screen Searching screen Unlocking screen Backspace key Calling key Language choice...
- Page 8 Before Using User Interface Communication Screen The following screen is displayed when calling a person to visit. Description Shows the information of the destination station Indicates outgoing call is being made Exit calling Decrease ringtone volume Increase ringtone volume Communication Screen After answer the call, talk with indoor monitor Description Indicates in communication...
- Page 9 How to use Placing a call Calling a Person to Visit Calling using the keypad Enter the "Unit Number" Calling key • Use to delete incorrectly entered Unit Numbers. Speak with the other party to end communication.
- Page 10 How to use Placing a call Calling using the Direct Call List 1.Tap the name to visit Page up Choose calling name list Page down Speak with the other party to end communication.
- Page 11 How to use Placing a call Calling by searching for a name Use the keyboard to search for a resident by name. Call and communicate with the person to visit by selecting from the search results. Enter the resident's name Tap the name to visit to delete incorrectly entered name.
-
Page 12: Unlocking The Door
Operations while placing a call, in communication, and How to use paging Unlocking the door Releasing by entering Access Code An electric lock can be released by entering Access Code using the keypad. Enter access code. Note The door release duration varies depending on the settings. - Page 13 Operations while placing a call, in communication, and How to use paging Release the door using access control credentials (cards, tabs, tags, mobile) Door release can be activated by passing an access control credential. Hold the access control credential Card reader Note The door release duration varies depending on the access control system settings.
- Page 14 Settings and Adjustments Settings and Adjustments Selecting the Display Language Visitors may temporarily select a different display language if needed. Tap the language to display Language choice • Tap to return to the previous screen. The setting will be changed.
- Page 15 Settings and Adjustments Settings and Adjustments Enter system setting screens Long press screen 2 seconds, input management password(default 1234) Description Volume Adjustment Function Setting Password Setting Interface Setting Restore To Original Factory Settings Language Setting IC Operation Updata System or Format SD Card Return To Main Interface...
-
Page 16: Function Setting Screen
Settings and Adjustments Settings and Adjustments Setting screens 1.Volume adjustment screen Ringtone volume Calling volume Return key 2.Function setting screen Unlocking Time(unit: Second) Outdoor Station Address External Camera Is Allowed Calling Name List Modified Return key... -
Page 17: Password Setting Screen
Settings and Adjustments Settings and Adjustments Setting screens 3.Password setting screen Setting Unlocking Password Setting Management Password Delete All The Password Return Key 4.Interface setting Background lighting brightness Return key 5.Restore to the original factory settings Input the management password(default 1234), restore to the original factory settings. -
Page 18: Program Update
Settings and Adjustments Settings and Adjustments Setting screens 6.Volume adjustment screen Add Management Card Add User Card Delete User Card Delete All The Cards Return Key 7.Program update Put the program into SD card, press Download key, update the program. After finished the update will restart automatically.Press Format SD Card key,format SD card. - Page 19 Settings and Adjustments Settings and Adjustments Setting screens 9.Modify the name in calling name list Choose the name list you want to modify Ticking to make the name list can be modified. Non-ticking to make the name list can be modified Re-input the name, after modified press enter key...
-
Page 20: Specifications
SPECIFICATIONS...
