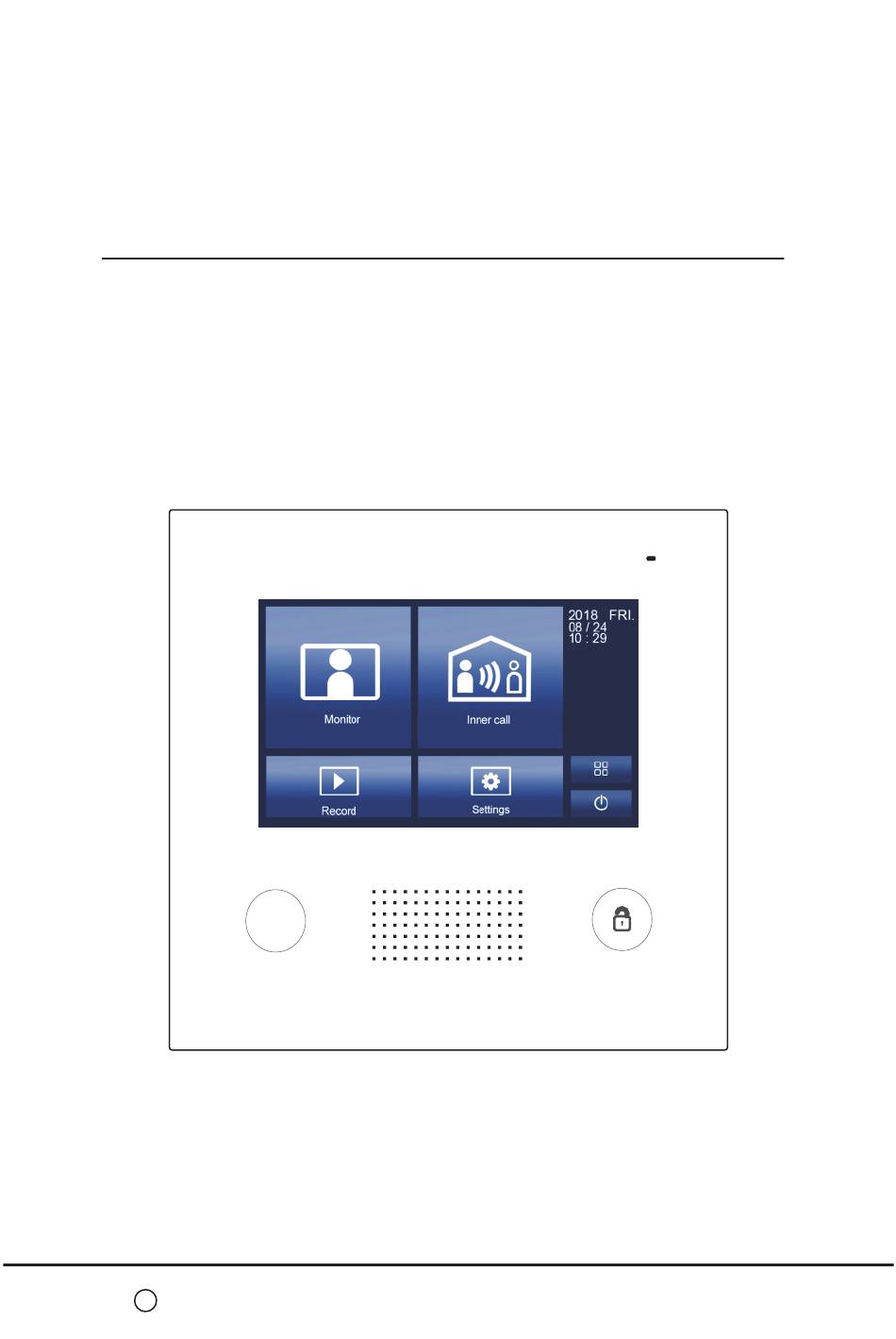

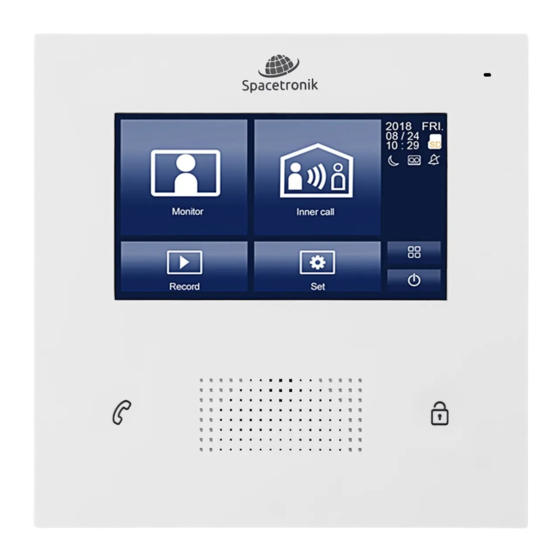

- Page 1 Smart Monitor Spacetronik SPD-M434T USER MANUAL Please read this manual carefully before using the product.
-
Page 2: Parts And Functions
1. Parts And Functions IP Connection port (8:GND) (7:VI) (6:CALL) Microphone (5:MIC) (4:SP) (3:ISK) (2:IJK) (1:IDJ) IP Connection port BUS terminal UNLOCK Button Bell connection port ALK Button DIP switches Speaker DIP switches Bit state Setting Bit state Setting Monitor at the end Reserved of the line Monitor NOT at... -
Page 3: Basic Door Release Operation
3. Main Menu Press anywhere of the screen on monitor in standby mode, the main menu page will be shown as follows: Time and SD card status Inner Call Press it to activate Inner call Monitor Press it to view the outside Activate “Do not ring”... - Page 4 Press Monitor on main menu to enter the door camera switching mode, if multi door stations are installed, you can select the door station or CCTV camera you want to monitor. 5. Inner Call User in one apartment can call other apartment in the system.Press Inner Call to enter Inner call page, use t o select next page, press...
- Page 5 Audio Record: Audio recording will be activated in two situations. 2.1. When you call other apartments (Inner Call). 2.2. If you select SD card as storage location, the audio recording will be activated when the door station call the monitor. Video/Picture/Audio playback: Press Record on main menu to select...
- Page 6 8. Volume Press Settings on main menu page, press Volume to enter volume adjusting page. Day time: 8:00 - 20:59, ringing volume adjusting range from 0-10. Night time: 21:00 - 7:59, ringing volume adjusting range from 0-10. 9. Language Press Settings icon on main menu page, press Language to enter language setting...
- Page 7 12. SD Card Press Storage to enter SD card setting page. Press Format to format the SD card Press Info to check the SD card storage information. 13. Network (Divert Call Function, With IP Module Only) Simultaneously : Calls from door station will be diverted to smart phone immediate- If no answer: If no one answers the calls on the monitor, after 30 seconds, the call...
-
Page 8: Specifications
16. Auto-unlock Mode Press Settings icon on main menu page, press to enter next page, press to enter auto-unlock mode. User could set up a time period, during this period, the door automatically opens for all calls. 17. Basic Wringing (With IP Module) Power Supply Router CAT 5...
