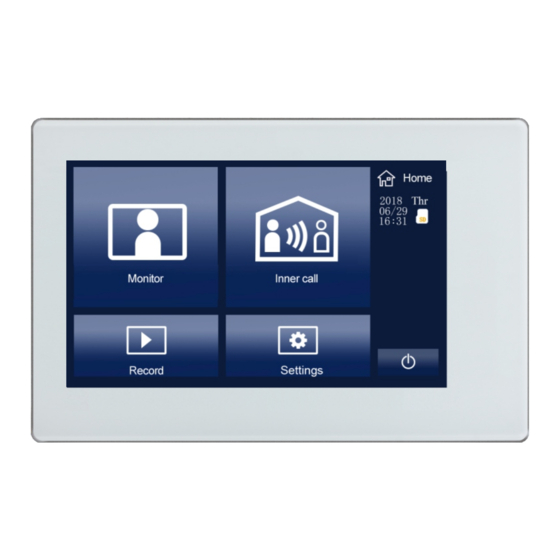

- Page 1 Smart Monitor Spacetronik SPD-M777T USER MANUAL Please read this manual carefully before using the product.
-
Page 2: Parts And Functions
1. Parts and functions 7" Digital TFT LCD Screen Microphone SD card slot DIP switches BUS terminal Speaker Door bell connection port IP Connection port DIP switches Bit-1 is the line terminal switch, the monitor at the end of the line must set to ON. Bit-2 is used to turn on/off the ringtone of the door station. -
Page 3: Basic Door Release Operation
3. Main menu Press anywhere of the screen on monitor in standby mode, the main menu page will be shown as follows: Time and SD card status Inner Call Monitor Press it to activate Press it to view the Inner call outside Recording Close... - Page 4 Press Monitor on main menu to enter the door camera switching mode, if multi door stations are installed, you can select the door station or CCTV camera you want to monitor. 5. Inner call User in one apartment can call other apartment in the system. Press Inner Call to enter Inner call page, use t o select next page, press...
- Page 5 Audio Record: Audio recording will be activated in two situations. 2.1. When you call other apartments (Inner Call). 2.2. If you select SD card as storage location, the audio recording will be activated when the door station call the monitor. Video/Picture/Audio playback: Press Record on main menu to select...
-
Page 6: Screen Settings
8. Volume Press Settings on main menu page, press Volume to enter volume adjusting page. Day time: 8:00 - 20:59, ringing volume adjusting range from 0-10. Night time: 21:00 - 7:59, ringing volume adjusting range from 0-10. 9. Screen settings Press Settings on main menu page, press Color to enter color adjusting page. - Page 7 12. Personalized settings Press Settings on main menu page, press Optional to enter personalized setting page. You can adjust Automatic / manual video recording Automatic / manual photography Turn on / off Inner Call Turn on / off Do Not Disturb Ring time setting 13.
-
Page 8: Specifications
16. Door station & Extra Camera If multi door stations and extra cameras installed in the system, you have to set the door station and camera quantity. The default setting is 1 door station and 0 camera. Voicemail Press Setting icon on main menu page, press Voicemail to enter voicemail setting.
