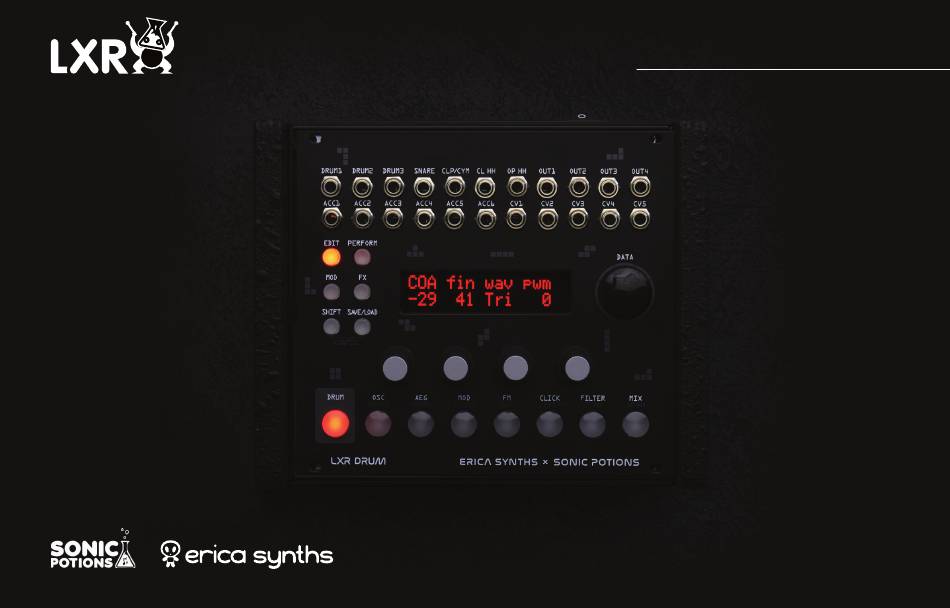

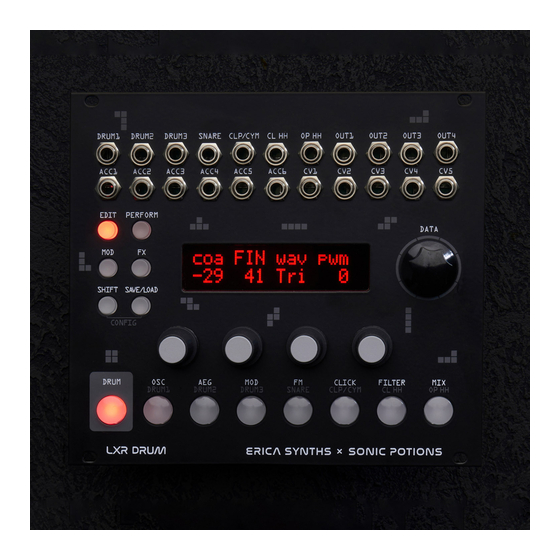

E U R O R A C K O W N E R S M A N U A L
© Julian Schmidt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SONIC POTIONS LXR EURORACK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erica Synths SONIC POTIONS LXR EURORACK

Summary of Contents for Erica Synths SONIC POTIONS LXR EURORACK

  • Page 1 E U R O R A C K O W N E R S M A N U A L © Julian Schmidt...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Menu location 5.7. Accent modulation Drive 5.8. Output Routing Ringmodulator MENU NAVIGATION Compressor FIRMWARE UPDATE 6.1. Update procedure Delay MEMORY MANAGEMENT 4.5. Loading and saving 6.2. Bootloader error messages 2.1. SD Card Display description INTRODUCTION TO DRUM SYNTHESIS 2.2.
  • Page 3 THANK YOU FOR PURCHASING THE ERICA SYNTHS X SONIC POTIONS LXR EURORACK MODULE! The LXR is a full fledged digital drum generator. Its sound engine provides 6 different instruments, each with over 30 parameters to tweak. It can produce a wide variety of...

  • Page 4: Menu Navigation

    MENU NAVIGATION MEMORY MANAGEMENT 2.1. SD CARD The upper row of the display will show the short name of the parameter. The bottom row shows the value of the parameter. You can The memory card is used as non volatile storage. Without a memory card you are not able change the value using one of the 4 knobs below the display.

  • Page 5: Snare Voice (Voice 4)

    3.1. SNARE VOICE (VOICE 4) 3.3 HIHAT VOICE (6) This voice is good for snare-drum and clap sounds. A noise source and a The hihat voice is nearly identical to the Cymbal voice, but it offers 2 different decay pitched oscillator can be mixed. Only the noise source is routed trough the filter. times for the amplitude envelope.

  • Page 6: Amplitude Envelope Page (Aeg)

    Drum 1-3, Clap, Hihat AMPLITUDE ENVELOPE PAGE (AEG) Each voice has an amplitude envelope. The common parameters are attack and Displayed name Name Description decay time as well as the slope of the curve. Coarse tune Coarse tuning of the main oscillator Drum 1-3 in semitones.

  • Page 7: Modulation Page (Mod)

    MODULATION PAGE (MOD) FREQUENCY MODULATION PAGE (FM) If the selected voice offers a second envelope, it's parameters can be found here. The FM page hosts the frequency, waveform and modulation amount settings for The modulation page also contains the accent velocity modulation. Here you can the FM oscillators.

  • Page 8: Transient Generator Page (Click)

    TRANSIENT GENERATOR PAGE (CLICK) Voice panning Voice panning. Only active if output The transient generator parameters are the waveform, volume and frequency of is set to a stereo channel. an additional short attack transient that can be mixed to the voice output. Sample rate Sample rate decimation.

  • Page 9: 4.2. Performance Mode

    Parameter editing MORPH As an example lets The morph feature allows you to morph from one preset sound to another. You can take a look at the use any kit as a morph target. The Morph amount value controls the ratio between filter page: the original and the target sound.

  • Page 10: Lfo

    The modulation is bipolar around the current value of the parameter. So for a full LFO waveform Select the LFO waveform. range modulation the target parameters value is best set to 50%. > Sine (sin) The mod matrix has a special mod target called “v/o”. Using this target, the >...

  • Page 11: Menu Location

    MENU LOCATION The feedback parameter of the Clip processor will generate a tone The FX menu is accessed by pushing SHIFT + FX when no input is present. This is the normal behavior, as the effect is quite similar to the feedback sound a microphone in front of a speaker produces.

  • Page 12: Delay

    Parameters Parameters Displayed name Name Description Displayed name Name Description FX Type Compressor. FX Type Delay. Output routing Selects the Audio output the FX signal Output routing Selects the Audio output the FX signal is is mixed to. mixed to. Dry / Wet ratio Mixing ratio between the original and Dry / Wet ratio...

  • Page 13: 13 4.5. Loading And Saving

    4.5. LOADING AND SAVING Quick naming scheme To speed up the name entry on the save page you can also use the knobs below the display. If the cursor is in the name area the knobs have the following functions: When the LXR is turned on, the last used kit is automatically loaded from the SD >...

  • Page 14: 14 4.6. Global Settings Menu

    SYNTH MODULES 4.6. GLOBAL SETTINGS MENU The settings menu contains the global configuration of the synth. Settings will be In this chapter we will have a closer look at the synth modules used in the different saved as soon as you exit the menu. voices.

  • Page 15: Frequency

    FREQUENCY Lowpass The frequency determines the operating point of the filter in the spectrum. The lowpass filter removes high frequencies from the signal. All frequencies above the cut off frequency are reduced gradually. For example a low pass filter will cut off all frequencies above its set cutoff frequency (all frequencies below it pass the filter unaltered –...
  • Page 16 Bandpass Notch The bandpass filter removes frequencies above and below the set cutoff frequency. The notch filter removes frequencies around the set filter frequency. Again, the resonance controls the width of the stopband. 18 dB 18 dB 12 dB 12 dB 6 dB 6 dB 0 dB...

  • Page 17: Attack/Decay Times

    LP2 Type SLOPE This type is a special case. It replaces the SVF model with a simpler The slope parameter controls the shape of the generated curve. A setting of 63 will implementation of the SVF topology with much more digital resonance. Use it for give you a linear envelope as seen above.

  • Page 18: Repeat

    REPEAT SNAPPY MODE A special feature of the envelope to simulate claps and other sounds with a The snappy mode is the first entry in the selection list, shown in the menu as 'Snp' fuzzy/rattling attack. To make the attack of the sound more 'snappy' an additional pitch envelope is used. If the repeat count is set to a value greater than zero, the envelope is in repeat >...

  • Page 19: Sample Rate Reduction

    5.5. SAMPLE RATE REDUCTION A list of the included samples: Displayed name Name Description The sample rate reducer can gradually reduce the sample rate from 44kHz to zero. Reducing the sample rate will give more of a lo-fi sound. The more it is reduced, the Snappy Mode more odd harmonics will be added to the sound as overtones are folded down at the Offset Mode...

  • Page 20: Accent Modulation

    FIRMWARE UPDATE 5.7. ACCENT MODULATION The accent can be used as a modulation source and is an important tool to bring The software for the LXR can be updated using the memory card. some life to your static patches. The accent can modulate 2 destinations simultaneously.

  • Page 21: Introduction To Drum Synthesis

    INTRODUCTION TO DRUM SYNTHESIS Click The attack sound is an important part of a kick. There is no general rule here. Try different transient generator settings for various clicks and pops or even slightly increasing the amplitude attack to give some softer bass drums. This chapter will introduce you to the very basics of drum synthesis.
  • Page 22 Amplitude envelope Oscillator We want a sharp percussion sound, so the attack will stay at zero. A single white noise oscillator set to its maximum frequency. For the decay it depends on what kind of snare you are after. > Longer decay times with a very exponential slope setting as low as 5 to 10 will Filter give you a short hit sound with a nicely decaying noise tail.

  • Page 23: Cymbal Ride

    7.5. CYMBAL RIDE amplitude envelope and a bandpass filter to get different kinds of bells. The sample rate reducer is also very useful to make the sound more metallic. Cymbals are similar to hats. The difference comes from the envelope and filter 808 STYLE COWBELL settings.

  • Page 24: More Info About Drum Sound Design

    7.7. MORE INFO ABOUT DRUM SOUND DESIGN Trigger amplitude There are a lot of good sources about drum synthesis on the web. Two 8.3. HARDWARE exceptionally good readings are: > The Sound on Sound synth secrets series has a lot of good articles for different 2 x 20 OLED screen drum sounds.
  • Page 25 4. http://www.freesound.org/people/Neotone/sounds/75344/ REFERENCES Drips » Drip2.wav Neotone July 10th, 2009 1. Sound by patchen A dripping sound made by a human being. July 14th, 2005 This work is licensed under the Creative Commons 0 License. http://www.freesound.org/people/patchen/sounds/4102/ 5. High Quality Acoustic Percussion Samples » Zildjian A Custom Hi-Hat Cymbals STEREO ATIK household percussion by 'patchen' released under a creative Pedal Chic.WAV commons attribution license...
  • Page 26 SAFETY INSTRUCTIONS DISPOSAL Please follow the instructions for the use of the Erica Synths X Sonic Potions LXR eurorack module below, because only this will guarantee the proper operation of the module and ensure the warranty from Erica Synths. This device complies with EU guidelines and is...
  • Page 27 You will find the Erica Synths terms of warranty at www.ericasynths.lv Items for return, exchange and/or warranty repair should be sent us according to the guidelines on SUPPORT section on www.ericasynths.lv Erica Synths Slokas Str. 31-2 Riga Latvia LV-1048...
