Black Box RM155A-R2 Quick Start Manual

Premier Aluminum Distribution Rack
CUSTOMER
SUPPORT
INFORMATION

Specifications

Color: RM155A-R2–RM156A-R2: Mill;
RM161A-R2–RM162A-R2: Black
Construction: 6063-T6 aluminum alloy
Finish: RAL 9005 black polyester powder paint or milled aluminum
Load Rating: 1000 lb. (453.6 kg)
Size: RM155A-R2, RM161A-R2: 76"H (38 U) x 20.25"W x 15"D
(193 x 51.4 x 38.1 cm);
RM156A-R2, RM162A-R2: 84"H (45U) x 20.25"W x 15"D
(213.4 x 51.4 x 38.1 cm)

Overview

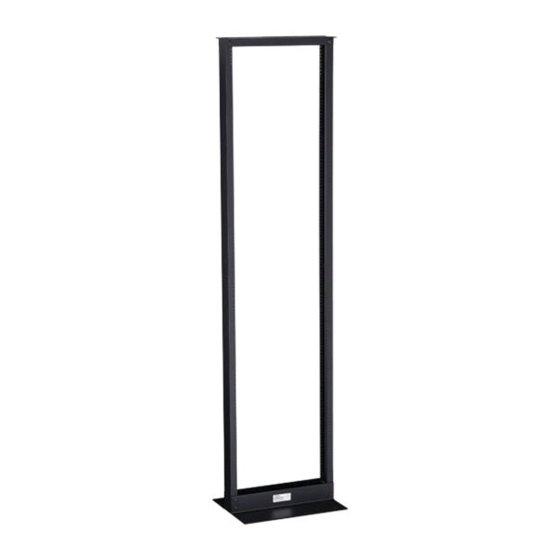

The Premier Aluminum Distribution Rack is used to hold networking and
data transmission equipment. It's made of strong, lightweight aluminum.
Four models are available: The RM155A-R2 is 6-feet (1.8-m) high with a
mill finish; the RM156A-R2 is 7-feet (2.1-m) high with a mill finish; the
RM161A-R2 is a 6-foot (1.8-m) rack with a black finish; and the
RM162A-R2 also has a black finish, but it's 7-feet (2.1-m) high.
The rack's side rails are tapped on both sides with 12-24 threads for quick
installation. An EIA universal
matches industry standards and connects to most racks for easy system
expansion. It's packed unassembled and includes 2 rails, 2 bases, 2 top
angles, 20 12-24 mounting screws, 12 hex bolts, and this users' manual.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
5 ⁄ "- 5 ⁄ "- 1 ⁄ " vertical mounting hole pattern
8 8 2
FEBRUARY 2008
RM155A-R2
RM156A-R2
RM161A-R2
RM162A-R2
