ADJUSTMENT

Adjusting Idling Current
1. Preparation
(1) Prepare a DC voltmeter.
(2) Place the unit under normal usage conditions, away from highly ventilated areas such as next to an air conditioning
machine or electric fan.
The set requires an ambient temperature of 15℃ to 30℃ and standard humidity.。
(3) Settings of This Unit
• POWER (Power source switch)
• SPEAKER (Speaker terminal)
(Do not connect equipment such as speakers or dummy resistors.)
2. Adjustment Procedure
(1) Remove the top cover and turn VR714, VR724, VR734, VR744, VR754, VR764, VR774, VR784, VR794 of the AMP PCB
counterclockwise( c ) as far as possible.
(2) Connect the DC Voltmeter to the test points.
FRONT-Lch
FRONT-Rch
CENTER ch
SURROUND-Lch
SURROUND-Rch
SURROUND-BACK Lch
SURROUND-BACK Rch
FRONT H/W-Lch
FRONT H/W-Rch
(3) Connect the power cord to an outlet. Next, press the power button to turn on the power.
(4) Set this unit as follows.
MASTER VOLUME
SPEAKER (Speaker terminal)
(Do not connect equipment such as speakers or dummy resistors.)
MODE
FUNCTION
(5) Turn VR714 clockwise ( x ) and adjust the voltage of the test point to "6.5mV ± 0.5mV DC" within 2 minutes.
(6) 10 minutes after the preliminary adjustment, turn VR714 and set the voltage to "8.0mV ± 0.5mV DC".
(7) Adjust the variable resistance of each channel using the same method.
DC Voltmeter
VR714
STANDBY
No load
： CN715
： CN725
： CN735
： CN745
： CN755
： CN765
： CN775
： CN785
： CN795
: "---" ( c min.) : turn counterclockwise to the lowest position.
: No load
: MCH STEREO
: DVD

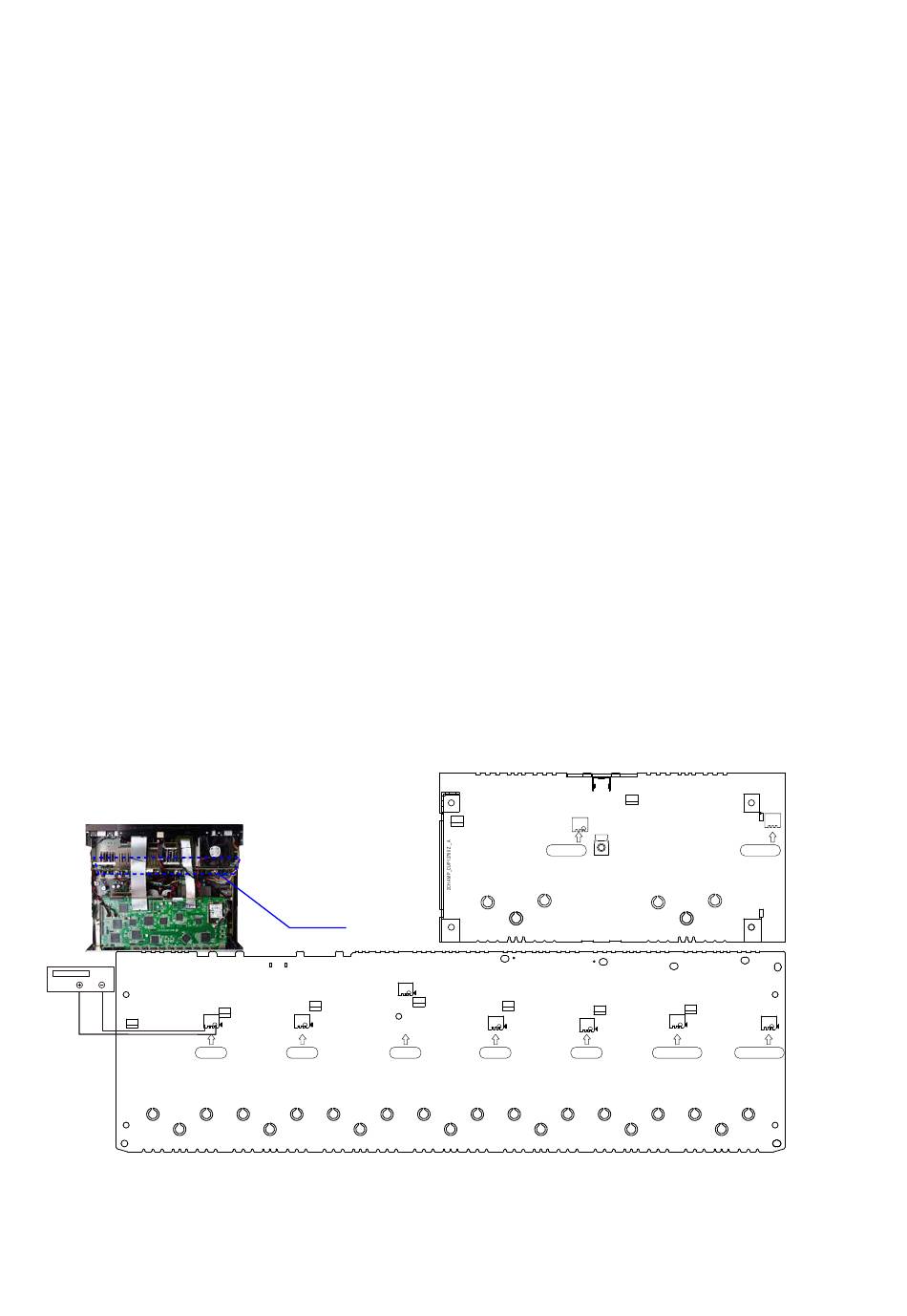

AMP UNIT
SL-CH
FL-CH C-CH
VR734
VR744
CN745
CN715
F Lch S Lch
CUP12780-1 Z
FWL-CH
VR784
FHW Rch
SR-CH FR-CH
CN735
VR754
VR724
CN755
C ch S Rch
96
FWR-CH
VR794
CN785
SBL-CH
SBR-CH
VR774
VR764
CN765
CN725
F Rch S Back Lch S Back Rch
CN795
FHW Lch
CN775
