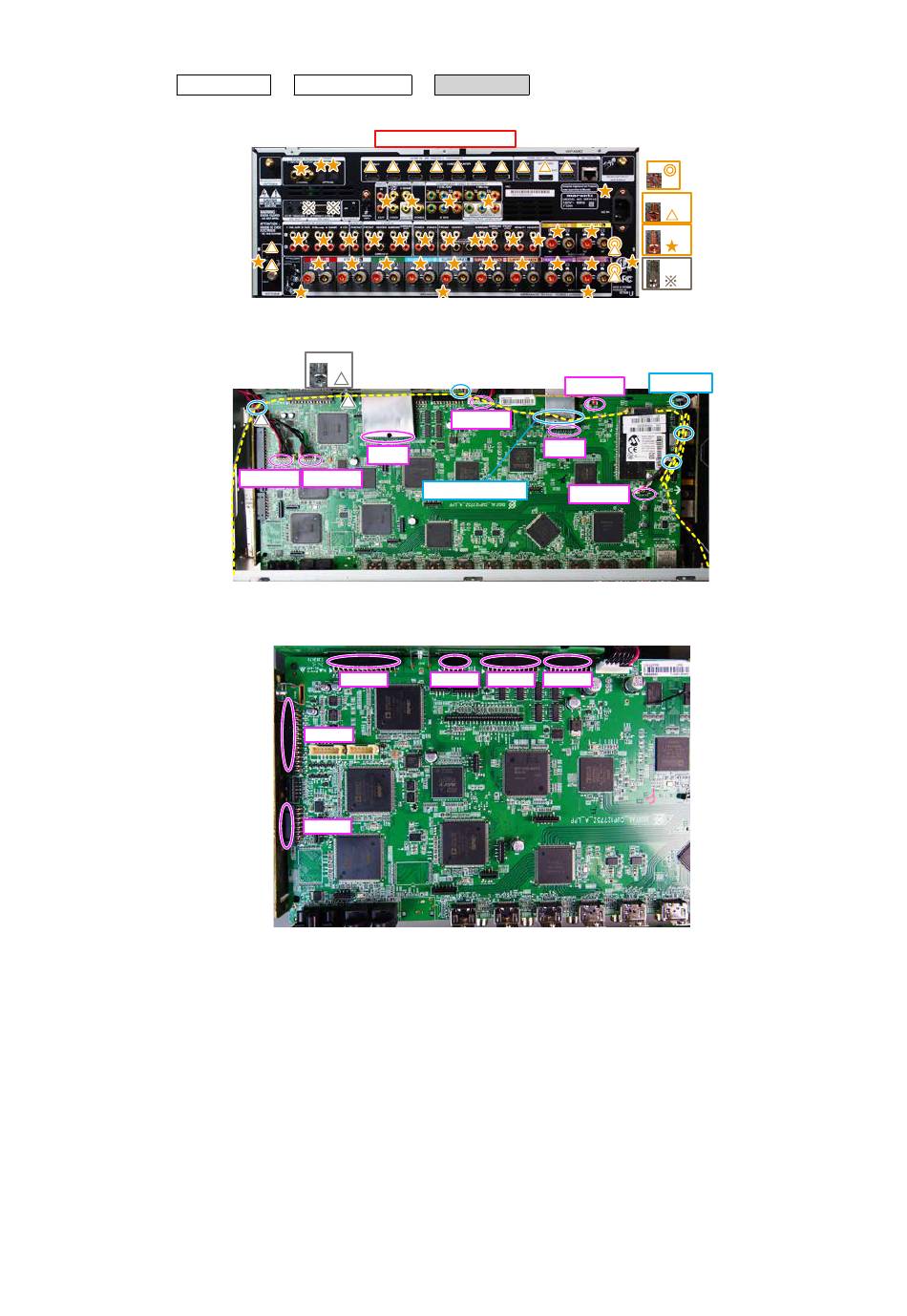

3. DIGITAL PCB

Proceeding : TOP COVER → BACK CHASSIS → DIGITAL PCB
(1) Remove the screws.
Shooting direction: A
x2
x14
x35
x2
(2) Cut the wire clamp, then remove the connector. Remove the FFC.
x2
CUTx5
CN531
CN903
FFC
FFC
CN704 CN781
STYLE PIN
CN321
(3) Remove the connector.
BN24A
BN26A BN25A BN21A
BN23A
BN27A
15
