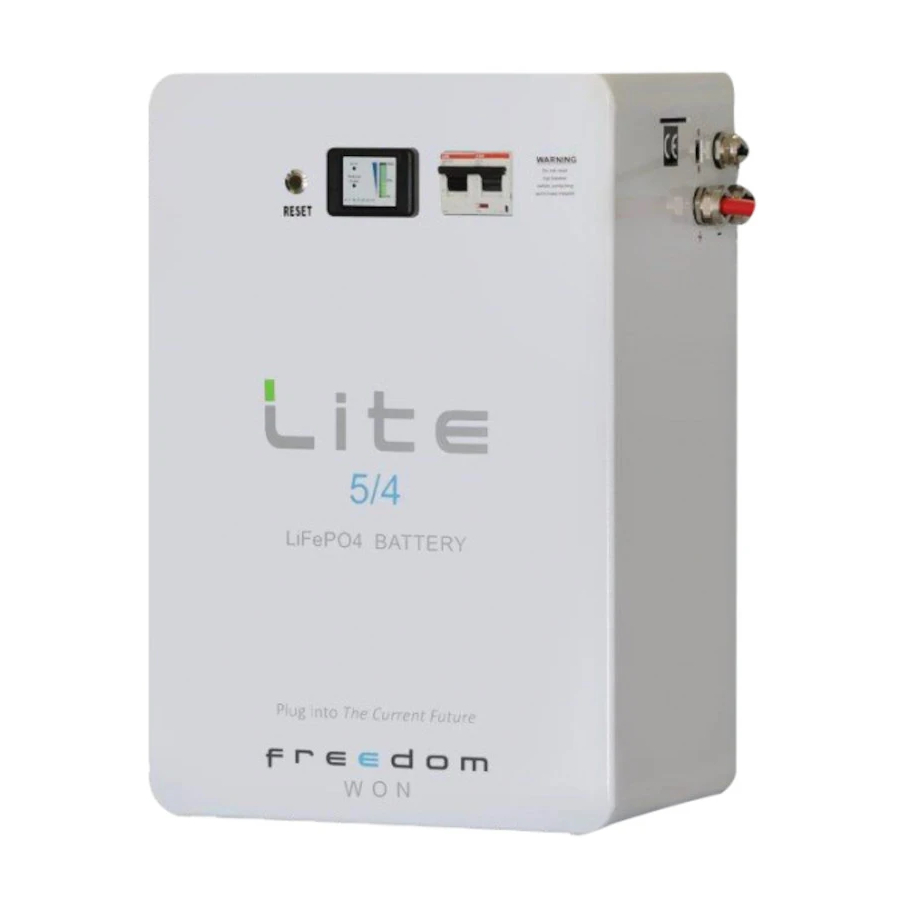

Freedom Won LiTE Home 5/4 Installation Manual

Lithium iron phosphate batteries
Hide thumbs Also See for LiTE Home 5/4:

Advertisement

Quick Links

Download this manual
Installation Manual
Freedom LiTE Home and
Range of Lithium Iron Phosphate Batteries
Kimbult Industrial Park, Unit C3 & C4
9 Zeiss Road
Laser Park, Honeydew
2040
South Africa
www.freedomwon.co.za
Technical and Installation Assistance – Contact:
Please contact your Freedom Won Distributor or Reseller Installer for technical and installation
support. A directory of Distributors and Reseller Installers is available at www.freedomwon.co.za.
For advanced support please contact support@freedomwon.co.za.
Update Record:
Revision
Update Summary
Number
13
Updated dimensions and weights of 5/4, 10/8,
15/12 and 20/16 models to new design.
14
Updates to Address Requirements for
Australian market
Business
Manufactured By Freedom Won (Pty) Ltd
Updated By
Date of Issue
Antony English
13 August 2020
Antony English
25 July 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the LiTE Home 5/4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Freedom Won LiTE Home 5/4

Summary of Contents for Freedom Won LiTE Home 5/4

  • Page 1 South Africa www.freedomwon.co.za Technical and Installation Assistance – Contact: Please contact your Freedom Won Distributor or Reseller Installer for technical and installation support. A directory of Distributors and Reseller Installers is available at www.freedomwon.co.za. For advanced support please contact support@freedomwon.co.za.

  • Page 2: Product Description

    This manual does not attempt to cover all the details pertaining to the setup of third-party equipment in relation to the interface and necessary functionality to work with the LiTE. Freedom Won however is available at the contact details on page one to provide direct support where necessary for supported inverter brands.
  • Page 3 Freedom LiTE Installation Manual Revision 14 Table 2.1 provides an overview of the 52V Freedom LiTE Home and Business range. There are eight Freedom LiTE models in the Home and Business range, as included in the table, classified in terms of energy capacity. An image with numbered labels pertaining to the following paragraphs is provided in Figure 2.1.
  • Page 4 Freedom LiTE Installation Manual Revision 14 Figure 2.1 Labelled Image of the Freedom LiTE Home 15/12 (Labelling corresponds with the text) [13] [14] [10] [11] [12] [15] 1. Gross Capacity 2. 80% Capacity recommended for daily cycling (max available is 90%) 3.
  • Page 5 Figure 2.2 Colour Wheel on Some Models Depicting the SoC of the LiTE The weight of each model is given in Table 2.1. The Freedom LiTE Home 5/4, 10/8 models can be manually handled by two people. The 15/12 and 20/16 can be manually handled by four people.
  • Page 6 The standard profile is loaded by Freedom Won prior to delivery but installers are advised to keep the correct cable to allow Freedom Won or the distributor to program batteries remotely on behalf of the installer via the installer’s Windows laptop, if necessary.
  • Page 7 Freedom LiTE Installation Manual Revision 14 Table 2.1 Freedom LiTE Range Overview Freedom LiTE Home Home Home Home Home Business Business Business 10/8 15/12 20/16 30/24 40/32 60/48 80/64 Total Energy Capacity [kWh] Energy, 80% DoD [kWh] (1) Energy, 90% DoD [kWh] 13,5 Current Capacity [Ah] 1200...
  • Page 8 The Freedom LiTE units are packaged in protective foam inside a wooden crate with pallet type feet, which allow lifting with a forklift or a pallet jack. The Freedom LiTE Home 5/4 and 10/7 models are easily handled by two people. The 15/11 and 20/14 models may be manually handled by four people.
  • Page 9 Freedom LiTE Installation Manual Revision 14 Eye bolts fixed to the top of the battery can be used for hoisting the unit up to the required height for fitting to the wall (excluding 5/4 and 10/8, which can be lifted manually). The eye bolt is not supplied with the LiTE 15/12 and 20/16, one must be on hand for installation and can be removed after installation (ensure that you have one M12 x 1,75 thread eye bolt rated for 450kg or more).
  • Page 10 Freedom LiTE Installation Manual Revision 14 Figure 3.3 Eye bolt Installation on a LiTE 15/12 model (Remove after installation) The units can alternatively be lifted to the right height and onto the hanging bolts using a high-lift pallet jack such as shown in Figure 3.4. A site assembled gantry with electric winch is shown in Figure 3.5.
  • Page 11 Freedom LiTE Installation Manual Revision 14 Models up to LiTE Home 20/16 are fitted with lifting or manoeuvring handles to make placement easier. See Fig 4.2. Fig 3.5 Site Assembled Gantry with Electric Hoist P a g e 10 | 30...
  • Page 12 Freedom LiTE Installation Manual Revision 14 Caution: 1. Great care must be taken to ensure that the Rawl Bolt has properly located into the narrowed section of the mounting hole before removing the support. 2. Handle the Freedom LiTE with great care when lifting and manoeuvring. It should remain either lying flat on its back, or vertically upright (it should not be placed upside down or on its front face.
  • Page 13 Freedom LiTE Installation Manual Revision 14 Where multiple LiTE batteries are installed in one system, the spacing between each battery should not be less than 250mm. The LiTE should be installed at least 500mm away from a heat source such as inverters, charge controllers, boilers, or flues.
  • Page 14 Freedom LiTE Installation Manual Revision 14 DC Bus Design Notes 4.2.1 DC Isolator The LiTE range includes an integrated battery DC breaker/isolator that breaks the positive cable continuity inside the battery. This breaker, on all Home and Business models, is rated for a 36kA fault (short circuit) current.
  • Page 15 Freedom LiTE Installation Manual Revision 14 Figure 4.1 Typical Residential Installation – Single Line Diagram P a g e 14 | 30...
  • Page 16 This profile must be specifically developed for each inverter model or model range. To date Freedom Won has developed CAN profiles for an extensive list of inverter brands. Refer to the Freedom LiTE and eTower to Inverter Interfacing Guide (https://www.freedomwon.co.za/wp-content/uploads/Freedom-LiTE-eTower-Interfacing-...
  • Page 17 Freedom LiTE Installation Manual Revision 14 Freedom Won welcomes any requests to produce BMS CAN profiles for other inverters that are CAN equipped for the BMS interface. The CAN interface can provide the following functionality to compatible devices: Charge Current Limit of all LiTE’s connected Discharge Current Limit of all LiTE’s connected...
  • Page 18 Ingeteam: Ingecon Sun, Storage Open terminal Open terminal Labelled on inverter 1Play, 3TL and 6TL Koyoe: 3kVA Hybrid Please connect Freedom Won if you need to connect on of these inverters to a LiTE MLT: PowerStar 10, Oasis, Pin 5 Pin 4 (blue)
  • Page 19 Note that the Freedom LiTE plug uses pins 7 and 8 for CAN H and CAN L. If your inverter is not included in this table, please contact Freedom Won for assistance. All BMS interfaces above operate at 500kbps baud rate except for Ingeteam, which operates on 250kbps.
  • Page 20 Freedom LiTE Installation Manual Revision 14 Parallel Configurations It is permissible to connect up to 20 Freedom LiTE’s in parallel provided that the Freedom LiTE model size used is the same throughout. It is however more cost effective to purchase one larger Freedom LiTE model than connecting multiple units in parallel.
  • Page 21 Freedom LiTE Installation Manual Revision 14 Figure 4.3 Picture Showing 2 x RJ45 Sockets for CAN Bus Figure 4.4 CAN Bus Connection Example with Four LiTEs Freedom LiTE batteries can configure themselves automatically for master and slave configurations with up to 20 batteries. No programming is required, simply connect the CAN Bus cables and switch on the LiTE’s.
  • Page 22 If the master LiTE trips one of the slaves will take over as the master automatically without any interruption of service. Freedom Won offers a fair trade in on Freedom LiTE’s on the purchase of new units, which is an option for somebody wishing to expand their battery capacity instead of installing parallel units.
  • Page 23 Freedom LiTE Installation Manual Revision 14 Fig 5.1 “ON” and “OFF” Buttons Settings Required for Setting up Inverters and Charge Controllers The maximum and continuous discharge currents for the respective models are provided in Table 2.1. For charge current settings refer to the charge current limit. An average recommended charge current is one third of the continuous rating of the battery.

  • Page 24: Warranty And Repair

    The Freedom LiTE is sealed with a tamper proof warranty seal. It may not be opened by anyone other than Freedom Won and installers or repairers that have been explicitly approved by Freedom Won. The warranty on the unit will be void if the seal is damaged or missing.
  • Page 25 Freedom Won may arrange for an on-site service or for collection of the unit for servicing at our facility. This will be mostly determined by the geographic location, ease of access to or removal of the unit, and size of the unit.
  • Page 26 Freedom LiTE Installation Manual Revision 14 • Temperature of the environment – ensure that the environment in which the battery is operating (battery room) is maintained as closely as possible to 20°C. Avoid allowing the ambient temperature to fall below (zero) 0°C or rise above 30°C. Operation (and storage) of the battery above 30°C will substantially reduce its service life.

  • Page 27: Troubleshooting Guide

    12. Troubleshooting Guide Most issues with the Freedom LiTE can be resolved using the guide below. If a problem cannot be resolved after referencing this table, please contact Freedom Won or your approved Freedom Won supplier. Table 14.1 Troubleshooting Guide (applicable to units with On and OFF buttons)
  • Page 28 DC bus. If none of the above solve the problem, you will need to contact Freedom Won or your authorised installer for assistance with this issue. It will be necessary to establish the reason for the error before continuing with normal operation of the system.
  • Page 29 If this does not work, it is because the battery has been discharged too deeply and will need to be reset remotely by Freedom Won by accessing your Windows PC connected to the battery. The PC must have Anydesk installed, and you will need the RS232 adapter to connect the PC to the battery for pre 2020 models, or a USB “printer”...
  • Page 30 Both are unlikely. If the problem persists, contact Freedom Won. The SoC “jumps” up or down This is usually caused by the SoC losing calibration –...
