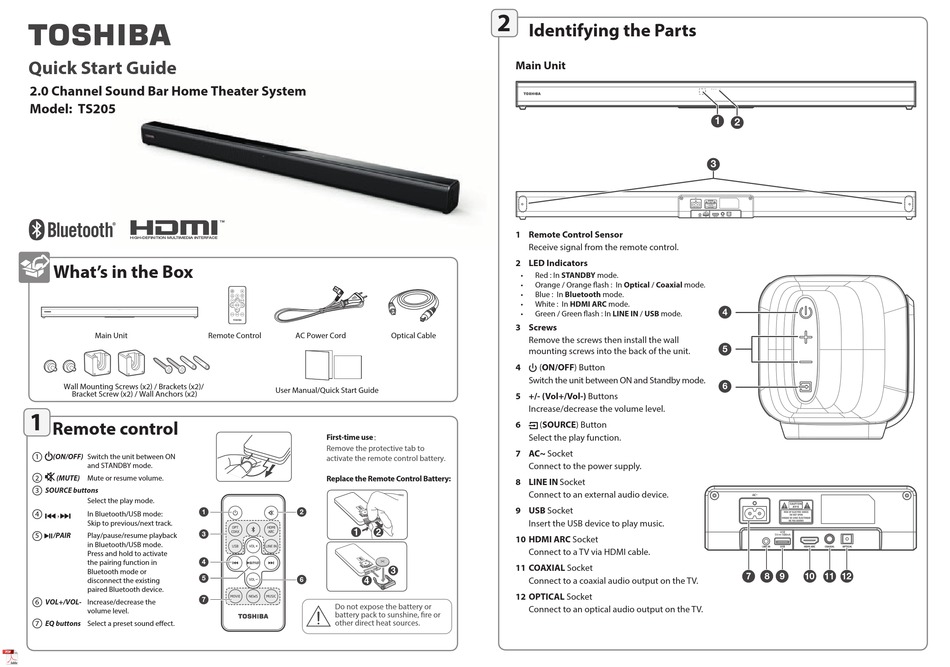

Toshiba TS205 Quick Start Manual

Quick Start Guide
2.0 Channel Sound Bar Home Theater System
Model: TS205
What's in the Box

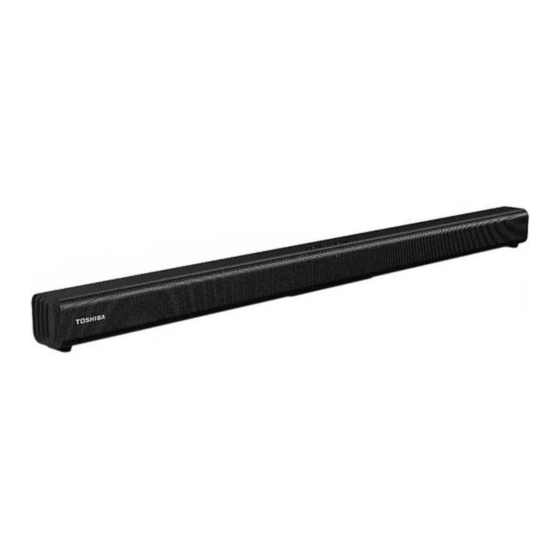

Main Unit
Wall Mounting Screws (x2) / Brackets (x2)/
Bracket Screw (x2) / Wall Anchors (x2)
1
Remote control
1 (ON/OFF) Switch the unit between ON
and STANDBY mode.
2 (MUTE) Mute or resume volume.
3 SOURCE buttons
Select the play mode.
1
，
4 In Bluetooth/USB mode:
Skip to previous/next track.
3
5 /PAIR Play/pause/resume playback
in Bluetooth/USB mode.
Press and hold to activate
4
the pairing function in
Bluetooth mode or
5
disconnect the existing
paired Bluetooth device.
7
6 VOL+/VOL- Increase/decrease the
volume level.
7 EQ buttons Select a preset sound effect.
VOL
VOL
Remote Control AC Power Cord
User Manual/Quick Start Guide
First-time use：
Remove the protective tab to
activate the remote control battery.
Replace the Remote Control Battery:
2
 


6
Do not expose the battery or
battery pack to sunshine, fire or
other direct heat sources.
2
Identifying the Parts
Main Unit
1 Remote Control Sensor
Receive signal from the remote control.
2 LED Indicators
• Red : In STANDBY mode.
• Orange / Orange flash : In Optical / Coaxial mode.
• Blue : In Bluetooth mode.
• White : In HDMI ARC mode.
• Green / Green flash : In LINE IN / USB mode.
3 Screws
Optical Cable
Remove the screws then install the wall
mounting screws into the back of the unit.
4 (ON/OFF) Button
Switch the unit between ON and Standby mode.
5 +/- (Vol+/Vol-) Buttons
Increase/decrease the volume level.
6 (SOURCE) Button
Select the play function.
7 AC~ Socket
Connect to the power supply.
8 LINE IN Socket
Connect to an external audio device.
9 USB Socket
Insert the USB device to play music.
10 HDMI ARC Socket
Connect to a TV via HDMI cable.
11 COAXIAL Socket
Connect to a coaxial audio output on the TV.
12 OPTICAL Socket
Connect to an optical audio output on the TV.
1
2
3
4
5
6
7 8 9 10 11 12
