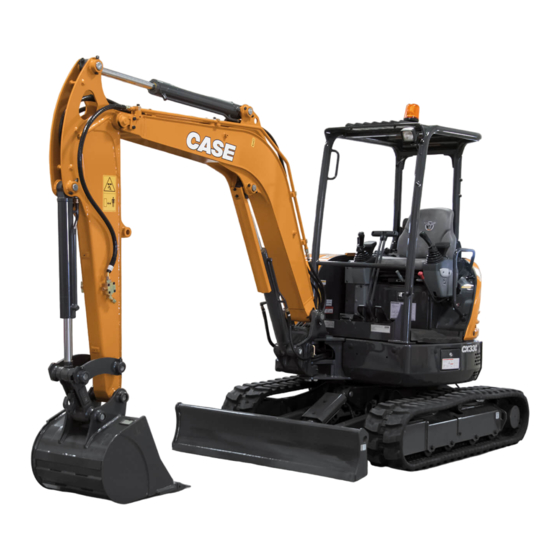

- Page 1 CX33C Mini Excavator SERVICE MANUAL Part number 48139695 English March 2017 © 2017 CNH Industrial Italia S.p.A. All Rights Reserved.
- Page 2 SERVICE MANUAL CX33C Canopy - Tier IV final engine 48139695 11/05/2017...
- Page 3 Contents INTRODUCTION Engine..................10 [10.001] Engine and crankcase ............. 10.1 [10.106] Valve drive and gears .
- Page 4 [35.737] Dipper hydraulic system............35.12 [35.738] Excavator and backhoe bucket hydraulic system .
- Page 5 Thanks very much for your reading, Want to get more information, Please click here, Then get the complete manual NOTE: If there is no response to click on the link above, please download the PDF document first, and then click on it. Have any questions please write to me: admin@servicemanualperfect.com...
- Page 6 [55.405] External lighting switches and relays ..........55.15 [55.408] Warning indicators, alarms, and instruments .
- Page 7 INTRODUCTION 48139695 11/05/2017...
-
Page 8: Table Of Contents
Contents INTRODUCTION Foreword - Important notice regarding equipment servicing ........3 Safety rules . -
Page 9: Foreword - Important Notice Regarding Equipment Servicing
In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case of damages caused by parts and/or components not approved by the manufacturer. -
Page 10: Safety Rules
INTRODUCTION Safety rules Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury. Throughout this manual you will find the signal words DANGER, WARNING, and CAUTION followed by special in- structions. -
Page 11: Safety Rules - General Information
Service parts Install CASE CONSTRUCTION genuine service parts. When placing an order, check the parts catalog. It contains the CASE CONSTRUCTION genuine part numbers. Any breakdowns arising from the installation of non-genuine parts are not covered by the warranty. Lubricants (fuel, hydraulic oil) Use the oil from the specified company or specified in the operator's manual or service Manual. -
Page 12: Safety Rules - Personal Safety
INTRODUCTION Safety rules - Personal safety Preliminary warnings to maintenance operation WARNING Avoid injury! Shut off the engine, remove the key, and make sure all machine motion stops before you service the machine. Failure to comply could result in death or serious injury. W1128B WARNING Improper operation or service of this machine can result in an accident. - Page 13 INTRODUCTION WARNING Tip-over hazard! Only raise the track as little as necessary. Failure to comply could result in death or serious injury. W0276A Hydraulic system WARNING Burn hazard! Before performing any service on the hydraulic system, you must allow it to cool. Hydraulic fluid temperature should not exceed 40 °C (104 °F).
- Page 14 INTRODUCTION WARNING Burn hazard! Hot coolant can spray and scald if you remove the radiator or deaeration tank cap while the system is hot. To remove the cap: allow the system to cool, turn the cap to the first notch, and wait for all pressure to release.
-
Page 15: Safety Rules - Ecology And The Environment
Improper disposal of batteries can contaminate the soil, groundwater, and waterways. CASE CONSTRUCTION strongly recommends that you return all used batteries to a CASE CONSTRUCTION dealer, who will dispose of the used batteries or recycle the used batteries properly. -
Page 16: Torque - Standard Torque Settings
INTRODUCTION Torque - Standard torque settings BOLT AND NUT Use following table for unspecified torque. Coarse thread Bolt size Wrench 10 t M6 x 1.0 10 mm 8.34 – 12.26 N·m (6.15 – 9.04 lb ft) 11.12 – 17.08 N·m (8.20 – 12.60 lb ft) M8 x 1.25 13 mm 19.66 –... - Page 17 INTRODUCTION Wrench Torque Thread size (UNF) 1-3/16-12 36 mm 176.26 N·m (130.00 lb ft) 1-7/16-12 41 mm 206.08 N·m (152.00 lb ft) 50 mm 1-11/16-12 343.02 N·m (253.00 lb ft) Fitting Thread size Wrench Torque 19 mm 1/4" 39.18 N·m (28.90 lb ft) 3/8"...
-
Page 18: Torque - Special Torque Settings
INTRODUCTION Torque - Special torque settings Component Bolt size Torque setting 96.3 – 155.9 N·m (71.0 – 115.0 lb ft) M12 x 1.75 Engine mounting bolt (engine–bracket) M12 x 1.75 117.7 – 137.21 N·m (86.8 – 101.20 lb ft) Engine Engine mounting bolt (bracket-frame) M10 ×... -
Page 19: Basic Instructions - Shop And Assembly
Only use CNH Original Parts or CASE CONSTRUCTION Original Parts. Only genuine spare parts guarantee the same quality, duration, and safety as original parts, as they are the same parts that are assembled during standard production. Only CNH Original Parts or CASE CONSTRUCTION Original Parts can offer this guarantee. - Page 20 W0111A Special tools The special tools that CASE CONSTRUCTION suggests and illustrate in this manual have been specifically re- searched and designed for use with CASE CONSTRUCTION machines. The special tools are essential for reliable repair operations. The special tools are accurately built and rigorously tested to offer efficient and long-lasting oper- ation.
-
Page 21: Machine Specifications
INTRODUCTION Machine specifications Engine Model Yanmar 3TNV88F-ESHYB Type 4-cycle vertical overhead valve, diesel fuel Cooling method Water cooling 3 cylinders, in-line Number of cylinders and arrangement Firing order 1 - 3 - 2 Combustion chamber type Direct injection type Cylinder bore x stroke 88 mm (3.46 in) x 90 mm (3.54 in) Piston displacement 1642 cm³... - Page 22 INTRODUCTION Swing motor Type Fixed displacement axial piston motor Capacity 22 cm³/rev (1.3 in³/rev) Relief pressure 19616 kPa (2845 psi) Braking system Automatic, spring applied hydraulic released Braking torque 90.2 N·m (66.5 lb ft) Brake release pressure 1958 – 6378 kPa (284 – 925 psi) Reduction gear type 2 - stage planetary Travel motor...
Need help?
Do you have a question about the CX33C and is the answer not in the manual?
Questions and answers
identify the different lights on dash for cx33c
The dashboard lights on the Case CX33C indicate the following:
- Hydraulic oil temperature warning
- Air cleaner warning
- Engine stop warning
- Check engine warning
- Water in fuel warning
- Battery charging warning
- Emergency warning
- Engine coolant temperature warning
- Engine oil pressure warning
- DPF (Diesel Particulate Filter) regeneration inhibit warning
- DPF regeneration acknowledge warning
- DPF warning
- High exhaust temperature warning
- Low fuel level warning
These lights help monitor the machine’s condition and alert the operator to potential issues.
