OPERATOR'S MANUAL

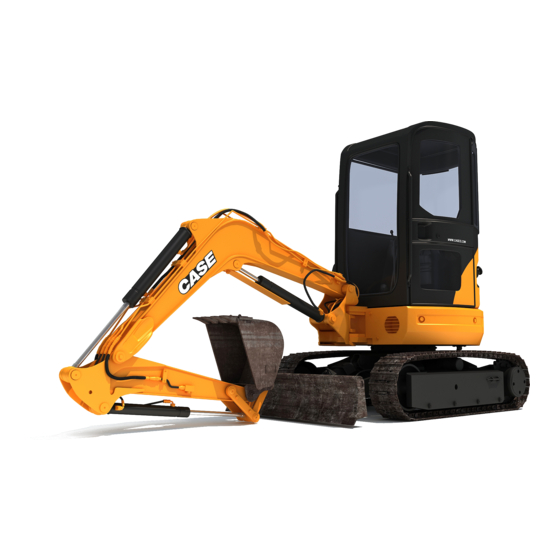

COMPACT CRAWLER EXCAVATOR
CX36B
TIER 4
READ, UNDERSTAND, AND FOLLOW ALL SAFETY
PRECAUTIONS AND INSTRUCTIONS FOUND IN THIS
MANUAL BEFORE OPERATING THE MACHINE.
Bur • Issued 01Jan 08
Printed in U.S.A. • Book/Form Number 87722071 NA
Copyright © 2007. CNH America, LLC. All Rights Reserved.
Advertisement
Table of Contents
Related Manuals for Case CX36B
Summary of Contents for Case CX36B
- Page 1 OPERATOR’S MANUAL COMPACT CRAWLER EXCAVATOR CX36B TIER 4 READ, UNDERSTAND, AND FOLLOW ALL SAFETY PRECAUTIONS AND INSTRUCTIONS FOUND IN THIS MANUAL BEFORE OPERATING THE MACHINE. Bur • Issued 01Jan 08 Printed in U.S.A. • Book/Form Number 87722071 NA Copyright © 2007. CNH America, LLC. All Rights Reserved.
- Page 2 Applicable Machines Remarks First Edition 01Jan 08 CX36B Tier 4 Compact Crawler Excavator 87722071 NA THIS SAFETY ALERT SYMBOL INDICATES IMPORTANT SAFETY MESSAGES IN THIS MANUAL. WHEN YOU SEE THIS SYMBOL, CAREFULLY READ THE MESSAGE THAT FOLLOWS AND BE ALERT TO THE POSSIBILITY OF DEATH OR SERIOUS INJURY.
- Page 3 500 Hour Maintenance ..............6-30 87722071 NA Issued 01-08 Bur Find manuals at http://best-manuals.com/search?&s=CASE-87722071...
- Page 4 Torque Specifications ..............8-11 CHAPTER 9 INDEX Issued 01-08 Bur 87722071 NA Find manuals at http://best-manuals.com/search?&s=CASE-87722071...
- Page 5 Do not use this machine for any application or purpose other than those described in this manual. If the machine is to be used for work involving the use of special attachments, accessories or equipment, consult your Case Dealer in order to make sure that any adaptations or modifications made are in keeping with the machine's technical specifications and with prevailing safety requirements.
- Page 6 The travel reduction gears are at the rear of the upper structure. DC03H142 Figure 1 1. FRONT 3. RIGHT HAND SIDE 5. TRAVEL REDUCTION GEARS (TRAVEL MOTORS) 2. REAR 4. LEFT HAND SIDE 6. IDLER WHEELS Issued 01-08 Bur 87722071 NA Find manuals at http://best-manuals.com/search?&s=CASE-87722071...
- Page 7 27. RUBBER CRAWLER BELT 37. BUCKET 8. HYDRAULIC TANK 18. THROTTLE LEVER 28. DOZER BLADE 9. HYDRAULIC PUMP 19. MONITOR PANEL 29. DOZER CYLINDER 10. SWING MOTOR 20. BATTERY 30. BOOM 87722071 NA Issued 01-08 Bur Find manuals at http://best-manuals.com/search?&s=CASE-87722071...
- Page 8 When ordering par ts, obtaining infor mation or assistance, always supply your Case Dealer with the t y p e a n d s e r i a l n u m b e r o f yo u r m a c h i n e o r accessories.
-
Page 9: Table Of Contents
Swing Left ................2-25 Issued 01-08 Bur 87722071 NA Find manuals at http://best-manuals.com/search?&s=CASE-87722071... - Page 10 Stop Engine ................2-27 Issued 01-08 Bur 87722071 NA Find manuals at http://best-manuals.com/search?&s=CASE-87722071...
-
Page 11: Safety Rules
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS SAFETY RULES PERSONAL SAFETY WARNING: This safety alert symbol If Safety Decals on this machine are ISO two panel indicates important safety messages in this Pictorial, decals are defined as follows: manual. When you see this symbol, carefully •... -
Page 12: Utility Safety
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS UTILITY SAFETY Safety precautions MUST be followed when working near buried and overhead Utility Lines. During operation it is likely that you will be working around or near buried or overhead utility lines which may include, but are not limited to: •... -
Page 13: Operator Precautions
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS OPERATOR PRECAUTIONS PERSONNEL MOUNTING AND DISMOUNTING PRECAUTIONS • • Be prepared for emergencies. Always have a first Use the hand holds and steps with at least three aid kit and a working fire extinguisher with you points of support when getting on and off the and know how to use each. -
Page 14: Operating Precautions
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS • OPERATING PRECAUTIONS On machines with independently operated wheel • brakes, lock the brake pedals together when Check brakes, steering and other machine control roading to provide equalized brake application. devices in accordance with the manufacturer’s •... -
Page 15: Maintenance Precautions
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS • • DO NOT OPERATE the machine if you do not feel Avoid lubrication or mechanical adjustments with well. This can be dangerous for you and for the the machine in motion or the engine operating. If people around you. -
Page 16: Fuel Handling Precautions
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS • FUEL HANDLING PRECAUTIONS Hot coolant can spray out if the radiator cap is • removed. To remove the radiator cap, let the Do not smoke or permit open flames while fueling cooling system cool, turn to the first notch, wait or near fueling operations. -
Page 17: Seat Belt Precautions
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS SEAT BELT PRECAUTIONS SPECIFIC PRECAUTIONS TO THIS MACHINE • Keep the load or tool as low as possible while moving the machine around the job site. • Never smoke while refueling. • Do not use tractive force of the machine for loading the bucket attachment nor to push or pull any objects. -
Page 18: Decals
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS DECALS WARNING: An illegible or missing decal can have far-reaching consequences. Inspect decals daily. Clean and replace damaged decals as necessary. CE-NA000 WARNING: Make sure that the decals are perfectly legible, clean them regularly and replace decals that are destroyed, lost, painted over or no longer legible, with new ones. -
Page 19: Boom And Arm Movement - Caution
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS BOOM AND ARM MOVEMENT - CAUTION Located on seat stand cover - Part Number YN20T01013P1 BS08A058/BS07M647 Figure 7 HYDRAULIC OIL - WARNING Located on hydraulic tank- Part Number PW20T01007P1 BS07M639/PW20T01007P1 Figure 8 2-11 87722071 NA Issued 01-08 Bur... -
Page 20: Safety Controls - Warning
CHAPTER 2 - SAFETY, DECALS, AND HAND SIGNALS SAFETY CONTROLS - WARNING Located on seat stand cover - Part Number YN20T01016P1 BS08A058/BS07M647 Figure 9 HOT SURFACES - CAUTION Located on engine door hinge - Part Number YN20T01220P1 BS07M640/YN20T01220P1 Figure 10 2-12 Issued 01-08 Bur 87722071 NA... - Page 21 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
